MF-USMF010-2 Information
MF-USMF010-2 by Bourns Inc is a Non-linear Resistor.
Non-linear Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for MF-USMF010-2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
47Y7175
|
Newark | Fuse, Resettable Ptc, 30V, 0.1A, 1210, Thermistor Mounting:Smd, Product Range:Mf-Usmf Series, Holding Current:100Ma, Tripping Current:300Ma, Voltage Rating:30V, Operating Temperature Min:-40°C, Operating Temperature Max:85°C, Rohs Compliant: Yes |Bourns MF-USMF010-2 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 1524 |
|
$0.2380 / $0.3960 | Buy Now |
|
DISTI #
29X2394
|
Newark | Fuse, Ptc Reset, 30V, 100Ma, 1210, Full Reel, Product Range:Mf-Usmf Series, Voltage Rating:30V, Holding Current:100Ma, Trip Current:300Ma, Operating Temperature Min:-40°C, Operating Temperature Max:85°C, External Depth:0.95Mm Rohs Compliant: Yes |Bourns MF-USMF010-2 RoHS: Compliant Min Qty: 15000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1320 / $0.1590 | Buy Now |
|
DISTI #
MF-USMF010-2CT-ND
|
DigiKey | PTC RESET FUSE 30V 100MA 1210 Min Qty: 1 Lead time: 14 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.1250 / $0.4000 | Buy Now |
|
DISTI #
MF-USMF010-2
|
Avnet Americas | Resettable Fuse, PPTC, 1210 (3225 Metric), MF-USMF, 30 VDC, 100 mA, 300 mA, 0.6 s - Tape and Reel (Alt: MF-USMF010-2) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 14 Weeks, 0 Days Container: Reel | 60000 |
|
$0.1248 / $0.2523 | Buy Now |
|
DISTI #
MF-USMF010-2
|
Avnet Americas | Resettable Fuse, PPTC, 1210 (3225 Metric), MF-USMF, 30 VDC, 100 mA, 300 mA, 0.6 s - Tape and Reel (Alt: MF-USMF010-2) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 111 Weeks, 0 Days Container: Reel | 0 |
|
$0.1250 / $0.2694 | Buy Now |
|
DISTI #
652-MF-USMF010-2
|
Mouser Electronics | Resettable Fuses - PPTC 30V .1A-HD 10A MAX RoHS: Compliant | 7288 |
|
$0.1580 / $0.3600 | Buy Now |
|
DISTI #
V36:1790_06254703
|
Arrow Electronics | PTC Resettable Fuse 0.1A(hold) 0.3A(trip) 30V 10A 0.6W 0.6s 0.8Ohm SMD Solder Pad 1210 T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 14 Weeks Date Code: 2423 | Americas - 6000 |
|
$0.2441 | Buy Now |
|
DISTI #
V72:2272_06254703
|
Arrow Electronics | PTC Resettable Fuse 0.1A(hold) 0.3A(trip) 30V 10A 0.6W 0.6s 0.8Ohm SMD Solder Pad 1210 T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 366 Package Multiple: 1 Lead time: 14 Weeks Date Code: 2149 Container: Cut Strips | Americas - 927 |
|
$0.2685 / $0.2730 | Buy Now |
|
DISTI #
70153609
|
RS | Fuse, Resettable, Fast Acting, 10A, Sz 1210, 0.135x0.11x0.043", SMT, 30VDC, PCB Min Qty: 1 Package Multiple: 1 Lead time: 17 Weeks, 0 Days Container: Bulk | 10 |
|
$0.3230 / $0.4040 | Buy Now |
|
|
Onlinecomponents.com | PTC Resettable Fuse - 0.1A(hold) 0.3A(trip) - 30V - 10A - 0.6W - 0.80 Ohm - Solder Pad 1210. RoHS: Compliant |
10400 In Stock |
|
$0.2526 / $0.2899 | Buy Now |
Part Details for MF-USMF010-2

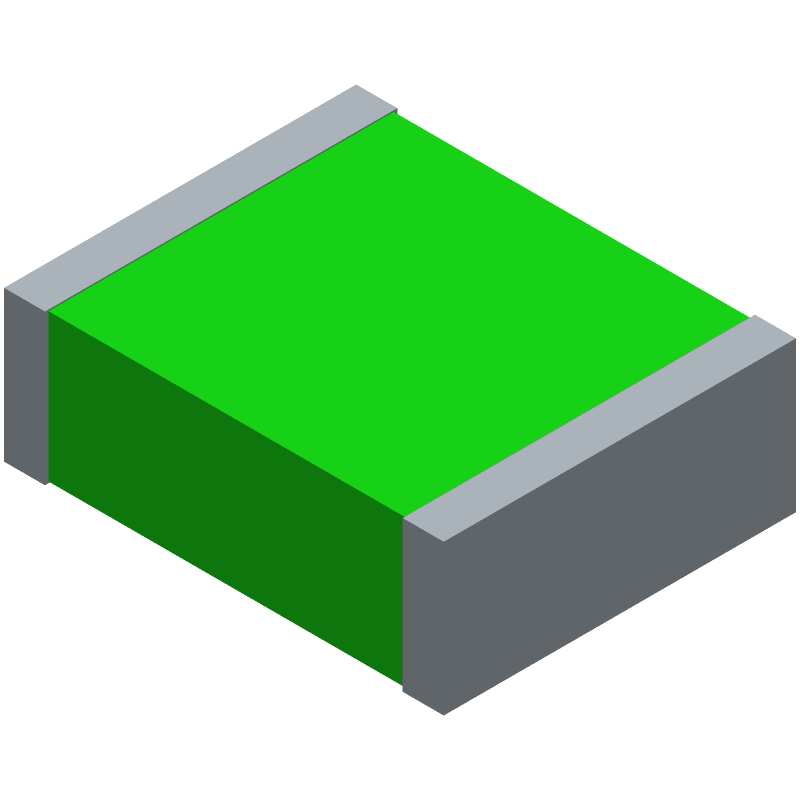

MF-USMF010-2 CAD Models
MF-USMF010-2 Part Data Attributes
|
|
MF-USMF010-2
Bourns Inc
Buy Now
Datasheet
|
Compare Parts:
MF-USMF010-2
Bourns Inc
PTC Resettable Fuse, Surface Mount, CHIP, 1210
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | BOURNS INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 14 Weeks | |
| Samacsys Manufacturer | Bourns | |
| Additional Feature | RMIN AT 23 DEG CEL | |
| JESD-609 Code | e4 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 1.1 mm | |
| Package Length | 3.43 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 2.8 mm | |
| Packing Method | TR, 7 INCH | |
| Reference Standard | AEC-Q200; CUL; TUV; UL | |
| Resistance | 0.8 Ω | |
| Resistor Type | PTC RESETTABLE FUSE | |
| Surface Mount | YES | |
| Terminal Finish | GOLD OVER NICKEL | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | WRAPAROUND | |
| Thermistor Application | OVERCURRENT PROTECTION | |
| Working Voltage | 30 V |
