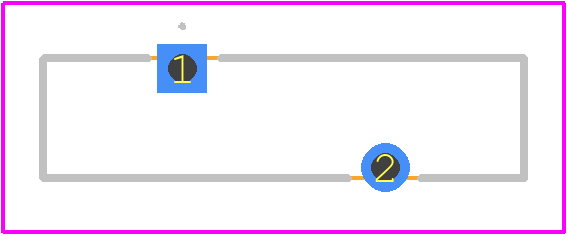

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MF-R185 by Bourns Inc
Results Overview of MF-R185 by Bourns Inc
- Distributor Offerings: (28 listings)
- Number of FFF Equivalents: (9 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MF-R185 Information
MF-R185 by Bourns Inc is a Non-linear Resistor.
Non-linear Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for MF-R185
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
58K1842
|
Newark | Fuse, Ptc Reset, 30V, 1.85A, Radial, Product Range:Mf-R Series, Voltage Rating:30Vdc, Holding Current:1.85A, Trip Current:3.7A, Time To Trip:8.7S, Fuse Shape:Round, Current Rating Max:40A, Lead Spacing:5.1Mm, Diameter:12Mm, Length:- Rohs Compliant: Yes |Bourns MF-R185 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 7 |
|
$0.1930 / $0.2470 | Buy Now |
|
DISTI #
MF-R185-ND
|
DigiKey | PTC RESET FUSE 30V 1.85A RADIAL Min Qty: 1 Lead time: 4 Weeks Container: Bulk |
6826 In Stock |
|
$0.1810 / $0.4900 | Buy Now |
|
DISTI #
MF-R185
|
Avnet Americas | PTC Resettable Fuse 40A 8.7s 30VDC 40m Ohm 2-Pin Radial Leaded Bulk - Bulk (Alt: MF-R185) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 4 Weeks, 0 Days Container: Bulk | 12341 |
|
$0.1611 | Buy Now |
|
DISTI #
58K1842
|
Avnet Americas | PTC Resettable Fuse 40A 8.7s 30VDC 40m Ohm 2-Pin Radial Leaded Bulk - Bulk (Alt: 58K1842) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 27 Weeks, 3 Days Container: Bulk | 7 Partner Stock |
|
$0.2790 | Buy Now |
|
DISTI #
652-MFR185
|
Mouser Electronics | Resettable Fuses - PPTC 30V 1.85A-HD 40A MAX RoHS: Compliant | 8080 |
|
$0.1750 / $0.4000 | Buy Now |
|
DISTI #
E02:0323_00123885
|
Arrow Electronics | PTC Resettable Fuse 1.85A(hold) 3.7A(trip) 30V 40A 1W 8.7s 0.04Ohm Radial 12 X 3mm Bulk Automotive AEC-Q200 RoHS: Compliant Min Qty: 414 Package Multiple: 1 Lead time: 6 Weeks Date Code: 2440 | Europe - 23344 |
|
$0.2739 | Buy Now |
|
DISTI #
V36:1790_06254663
|
Arrow Electronics | PTC Resettable Fuse 1.85A(hold) 3.7A(trip) 30V 40A 1W 8.7s 0.04Ohm Radial 12 X 3mm Bulk Automotive AEC-Q200 RoHS: Compliant Min Qty: 990 Package Multiple: 1 Lead time: 4 Weeks Date Code: 2122 | Americas - 3111 |
|
$0.1575 | Buy Now |
|
DISTI #
70153588
|
RS | Fuse, Resettable, 40A, Dims 0.472x0.118", Radial, 30VDC, DCR 0.04 Ohms, PCB Min Qty: 1 Package Multiple: 1 Lead time: 17 Weeks, 0 Days Container: Bulk | 12 |
|
$0.3960 / $0.4950 | Buy Now |
|
|
Onlinecomponents.com | PTC Resettable Fuse 1.85A(hold) 3.7A(trip) 30V 40A 1W 8.7s 0.04Ohm Radial 12 X 3mm Bulk Automotive RoHS: Compliant |
5882 In Stock |
|
$0.2681 / $0.4038 | Buy Now |
|
DISTI #
86224406
|
Verical | PTC Resettable Fuse 1.85A(hold) 3.7A(trip) 30V 40A 1W 8.7s 0.04Ohm Radial 12 X 3mm Bulk Automotive AEC-Q200 RoHS: Compliant Min Qty: 414 Package Multiple: 414 Date Code: 2440 | Americas - 23184 |
|
$0.2739 | Buy Now |
Part Details for MF-R185
MF-R185 CAD Models
MF-R185 Part Data Attributes
|
|
MF-R185
Bourns Inc
Buy Now
Datasheet
|
Compare Parts:
MF-R185
Bourns Inc

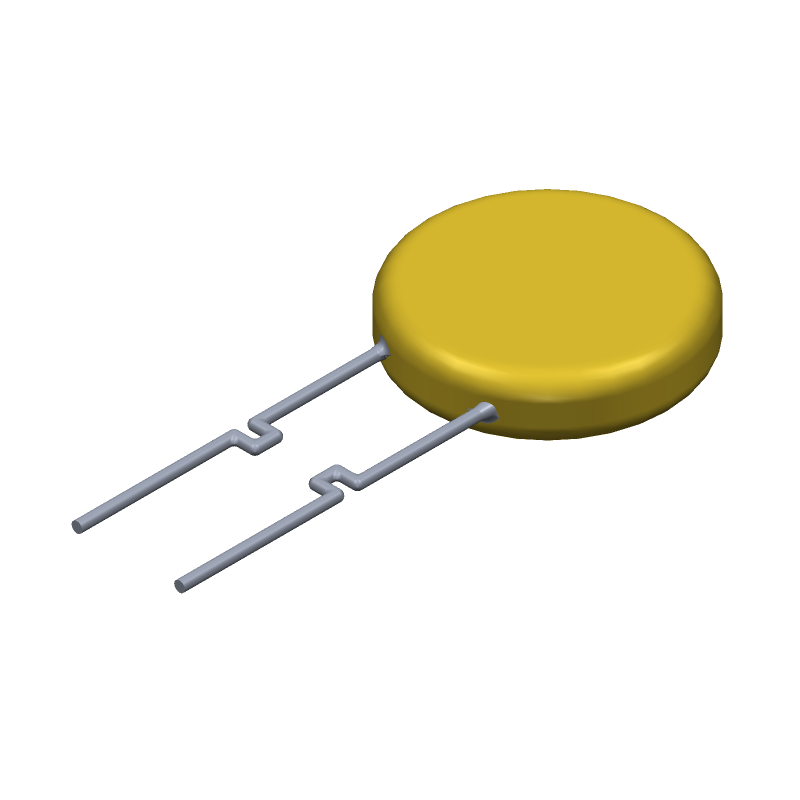

PTC Resettable Fuse, Through Hole Mount, RADIAL LEADED
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | BOURNS INC | |
| Package Description | RADIAL LEADED | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.40.80.70 | |
| Factory Lead Time | 4 Weeks | |
| Samacsys Manufacturer | Bourns | |
| JESD-609 Code | e3 | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 18.4 mm | |
| Package Length | 12 mm | |
| Package Shape | DISK PACKAGE | |
| Package Style | Radial | |
| Package Width | 3 mm | |
| Packing Method | Bulk | |
| Reference Standard | CUL; TUV | |
| Resistance | 0.04 Ω | |
| Resistor Type | PTC RESETTABLE FUSE | |
| Surface Mount | NO | |
| Terminal Finish | MATTE TIN | |
| Terminal Placement | RADIAL | |
| Terminal Shape | WIRE | |
| Working Voltage | 30 V |
