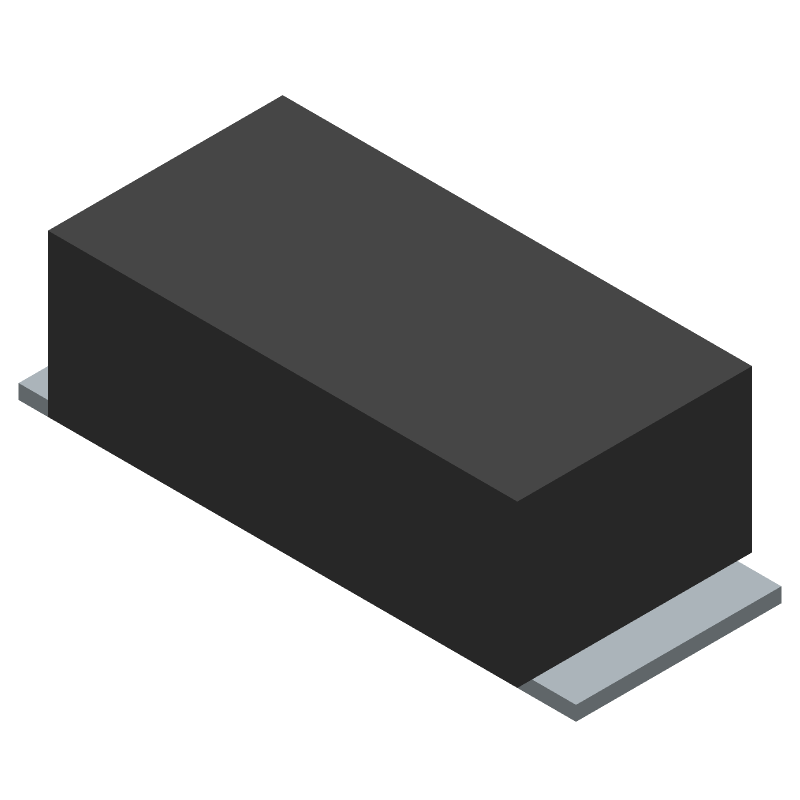

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MF-NSMF012/48X-2 by Bourns Inc
Results Overview of MF-NSMF012/48X-2 by Bourns Inc
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MF-NSMF012/48X-2 Information
MF-NSMF012/48X-2 by Bourns Inc is a Non-linear Resistor.
Non-linear Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for MF-NSMF012/48X-2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
86AK1639
|
Newark | Pptc Resettable Fuse, 10A, 48V, 1206 Rohs Compliant: Yes |Bourns MF-NSMF012/48X-2 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1825 |
|
$0.5530 / $0.8110 | Buy Now |
|
DISTI #
118-MF-NSMF012/48X-2CT-ND
|
DigiKey | FUSE RESET PPTC 1206 0.12A/48V Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
3870 In Stock |
|
$0.2125 / $0.6400 | Buy Now |
|
DISTI #
MF-NSMF012/48X-2
|
Avnet Americas | 1206 RESETTABLE SMD PPTC 0.12A/48V - Tape and Reel (Alt: MF-NSMF012/48X-2) Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.1930 / $0.2145 | Buy Now |
|
DISTI #
652-MF-NSMF012/48X-2
|
Mouser Electronics | Resettable Fuses - PPTC 1206 Resettable SMD PPTC 0.12A/48V RoHS: Compliant | 5077 |
|
$0.1720 / $0.4800 | Buy Now |
|
DISTI #
V72:2272_28706172
|
Arrow Electronics | PTC Resettable Fuse 0.12A(hold) 0.29A(trip) 48V 10A 0.6W 0.2s 1Ohm SMD Solder Pad 1206 T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2323 Container: Cut Strips | Americas - 1940 |
|
$0.2292 / $0.2532 | Buy Now |
|
|
Onlinecomponents.com | RoHS: Compliant | 0 |
|
$0.2179 / $0.2464 | Buy Now |
|
DISTI #
76084998
|
Verical | PTC Resettable Fuse 0.12A(hold) 0.29A(trip) 48V 10A 0.6W 0.2s 1Ohm SMD Solder Pad 1206 T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 129 Package Multiple: 1 | Americas - 2975 |
|
$0.2270 / $0.2950 | Buy Now |
|
DISTI #
76843660
|
Verical | PTC Resettable Fuse 0.12A(hold) 0.29A(trip) 48V 10A 0.6W 0.2s 1Ohm SMD Solder Pad 1206 T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 30 Package Multiple: 1 Date Code: 2323 | Americas - 1940 |
|
$0.2292 / $0.2473 | Buy Now |
|
DISTI #
MF-NSMF012/48X-2
|
Chip One Stop | Passives RoHS: Compliant pbFree: Yes Min Qty: 5 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 2975 |
|
$0.1880 / $0.4150 | Buy Now |
|
|
Master Electronics | RoHS: Compliant | 0 |
|
$0.2179 / $0.2464 | Buy Now |
Part Details for MF-NSMF012/48X-2
MF-NSMF012/48X-2 CAD Models
MF-NSMF012/48X-2 Part Data Attributes
|
|
MF-NSMF012/48X-2
Bourns Inc
Buy Now
Datasheet
|
Compare Parts:
MF-NSMF012/48X-2
Bourns Inc
PTC Resettable Fuse, 1ohm, Surface Mount, CHIP
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | BOURNS INC | |
| Package Description | CHIP | |
| Reach Compliance Code | unknown | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Bourns | |
| Additional Feature | RMIN AT 23 DEG CEL | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 1.1 mm | |
| Package Length | 3.4 mm | |
| Package Style | SMT | |
| Package Width | 1.8 mm | |
| Packing Method | TR, 7 INCH | |
| Reference Standard | AEC-Q200; CUL; TUV; UL | |
| Resistance | 1 Ω | |
| Resistor Type | PTC RESETTABLE FUSE | |
| Surface Mount | YES | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | WRAPAROUND | |
| Thermistor Application | OVERCURRENT PROTECTION | |
| Working Voltage | 48 V |
