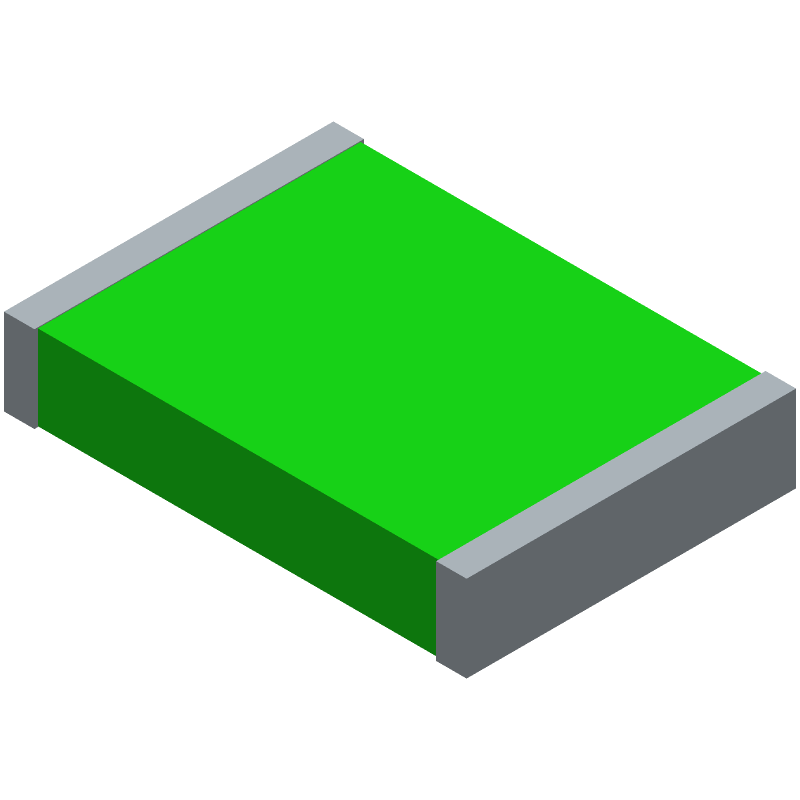

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MF-MSMF160-2 by Bourns Inc
Results Overview of MF-MSMF160-2 by Bourns Inc
- Distributor Offerings: (19 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MF-MSMF160-2 Information
MF-MSMF160-2 by Bourns Inc is a Non-linear Resistor.
Non-linear Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for MF-MSMF160-2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
15P2091
|
Newark | Multifuse, Smd, 1812, 1.6A, Thermistor Mounting:Smd, Product Range:Mf-Msmf Series, Holding Current:1.6A, Tripping Current:2.8A, Voltage Rating:8V, Operating Temperature Min:-40°C, Operating Temperature Max:85°C, Automotive Rohs Compliant: Yes |Bourns MF-MSMF160-2 RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1368 |
|
$0.3270 / $0.4490 | Buy Now |
|
DISTI #
02J2725
|
Newark | Fuse, Ptc Resettable, 8V, 1.6A, 1812, Full Reel, Pptc Case Style:1812 (4532 Metric), Product Range:Mf-Msmf Series, Voltage Rating:8Vdc, Holding Current:1.6A, Trip Current:2.8A, Time To Trip:2S, Current Rating Max:100A Rohs Compliant: Yes |Bourns MF-MSMF160-2 RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.3880 | Buy Now |
|
DISTI #
MF-MSMF160-2CT-ND
|
DigiKey | PTC RESET FUSE 8V 1.6A 1812 Min Qty: 1 Lead time: 15 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
33568 In Stock |
|
$0.2250 / $0.6800 | Buy Now |
|
DISTI #
MF-MSMF160-2
|
Avnet Americas | SMD Resettable Fuse, PPTC, 1812 (4532 Metric), MF-MSMF, 8 V, 1.6 A, 2.8 A, 2 s - Tape and Reel (Alt: MF-MSMF160-2) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 14 Weeks, 0 Days Container: Reel | 4000 |
|
$0.2127 / $0.2271 | Buy Now |
|
DISTI #
652-MF-MSMF160-2
|
Mouser Electronics | Resettable Fuses - PPTC 8V 1.6A-HD 100A MAX RoHS: Compliant | 16453 |
|
$0.1210 / $0.1900 | Buy Now |
|
DISTI #
V36:1790_06254230
|
Arrow Electronics | PTC Resettable Fuse 1.6A(hold) 2.8A(trip) 8V 100A 0.8W 2s 0.035Ohm SMD Solder Pad 1812 T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 15 Weeks Date Code: 2147 | Americas - 4000 |
|
$0.2197 | Buy Now |
|
|
Onlinecomponents.com | PTC Resettable Fuse 1.6A(hold) 2.8A(trip) 8V 100A 0.8W 2s 0.035Ohm SMD Solder Pad 1812 T/R Automotive RoHS: Compliant |
689 In Stock |
|
$0.2223 / $0.2781 | Buy Now |
|
DISTI #
69220928
|
Verical | PTC Resettable Fuse 1.6A(hold) 2.8A(trip) 8V 100A 0.8W 2s 0.035Ohm SMD Solder Pad 1812 T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Date Code: 2147 | Americas - 4000 |
|
$0.1076 | Buy Now |
|
DISTI #
84417661
|
Verical | PTC Resettable Fuse 1.6A(hold) 2.8A(trip) 8V 100A 0.8W 2s 0.035Ohm SMD Solder Pad 1812 T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 235 Package Multiple: 1 Date Code: 1943 | Americas - 1381 |
|
$0.3581 | Buy Now |
|
DISTI #
66718967
|
Verical | PTC Resettable Fuse 1.6A(hold) 2.8A(trip) 8V 100A 0.8W 2s 0.035Ohm SMD Solder Pad 1812 T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 689 Package Multiple: 689 Date Code: 1410 | Americas - 689 |
|
$0.2890 / $0.3286 | Buy Now |
Part Details for MF-MSMF160-2
MF-MSMF160-2 CAD Models
MF-MSMF160-2 Part Data Attributes
|
|
MF-MSMF160-2
Bourns Inc
Buy Now
Datasheet
|
Compare Parts:
MF-MSMF160-2
Bourns Inc
PTC Resettable Fuse, Surface Mount, CHIP, 1913
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | BOURNS INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.40.80.70 | |
| Factory Lead Time | 14 Weeks | |
| Samacsys Manufacturer | Bourns | |
| Additional Feature | RMIN AT 23 DEG CEL | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 0.85 mm | |
| Package Length | 4.73 mm | |
| Package Style | SMT | |
| Package Width | 3.41 mm | |
| Packing Method | TR, 7 INCH | |
| Reference Standard | CUL; TUV; UL | |
| Resistance | 0.035 Ω | |
| Resistor Type | PTC RESETTABLE FUSE | |
| Surface Mount | YES | |
| Terminal Finish | GOLD OVER NICKEL | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | WRAPAROUND | |
| Thermistor Application | OVERCURRENT PROTECTION | |
| Working Voltage | 8 V |
