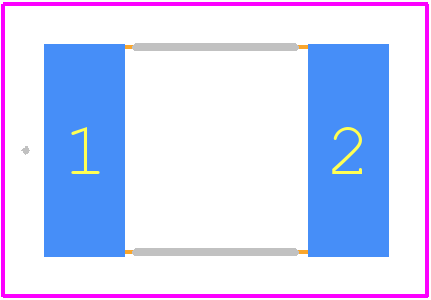

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MF-LSMF150/33X-2 by Bourns Inc
Results Overview of MF-LSMF150/33X-2 by Bourns Inc
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MF-LSMF150/33X-2 Information
MF-LSMF150/33X-2 by Bourns Inc is a Non-linear Resistor.
Non-linear Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for MF-LSMF150/33X-2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
30AK6362
|
Newark | Pptc Resettable Fuse, 1.5A, 33V, 2920 Rohs Compliant: Yes |Bourns MF-LSMF150/33X-2 RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 3790 |
|
$0.4560 / $0.7190 | Buy Now |
|
DISTI #
118-MF-LSMF150/33X-2CT-ND
|
DigiKey | 2920 RESETTABLE SMD PPTC 1.5A/33 Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
944 In Stock |
|
$0.2750 / $0.8100 | Buy Now |
|
DISTI #
MF-LSMF150/33X-2
|
Avnet Americas | SMD Resettable Fuse, PPTC, 2920 [7351 Metric], MF-LSMF, 33 V, 1.5 A, 3 A, 2 s - Tape and Reel (Alt: MF-LSMF150/33X-2) RoHS: Not Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.2339 / $0.2775 | Buy Now |
|
DISTI #
652-MF-LSMF150/33X-2
|
Mouser Electronics | Resettable Fuses - PPTC 2920 Resettable SMD PPTC 1.5A/33V RoHS: Compliant | 3374 |
|
$0.2990 / $0.6800 | Buy Now |
|
DISTI #
V72:2272_26585614
|
Arrow Electronics | PTC Resettable Fuse 1.5A(hold) 3A(trip) 33V 40A 1.5W 2s 0.05Ohm SMD Solder Pad 2920 T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2119 Container: Cut Strips | Americas - 97 |
|
$0.2588 / $0.4163 | Buy Now |
|
DISTI #
73575228
|
RS | 2920 Resettable SMD PPTC 1.5A/33V Min Qty: 3000 Package Multiple: 1 Lead time: 14 Weeks, 0 Days Container: Bulk | 0 |
|
$0.4200 / $0.4400 | RFQ |
|
|
Onlinecomponents.com | PTC Resettable Fuse - SMD - 1.5A/33V RoHS: Compliant | 0 |
|
$0.2766 / $0.3099 | Buy Now |
|
DISTI #
61255274
|
Verical | PTC Resettable Fuse 1.5A(hold) 3A(trip) 33V 40A 1.5W 2s 0.05Ohm SMD Solder Pad 2920 T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 23 Package Multiple: 1 Date Code: 2119 | Americas - 97 |
|
$0.2588 / $0.3925 | Buy Now |
|
DISTI #
MF-LSMF150/33X-2
|
TTI | Resettable Fuses - PPTC 2920 Resettable SMD PPTC 1.5A/33V RoHS: Compliant pbFree: Pb-Free Min Qty: 4000 Package Multiple: 4000 Container: Reel | Americas - 0 |
|
$0.3090 | Buy Now |
|
DISTI #
MF-LSMF150/33X-2
|
Avnet Abacus | SMD Resettable Fuse PPTC 2920 7351 Metric MFLSMF 33 V 15 A 3 A 2 s - Tape and Reel (Alt: MF-LSMF150/33X-2) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 15 Weeks, 0 Days Container: Reel | Abacus - 0 |
|
Buy Now |
Part Details for MF-LSMF150/33X-2
MF-LSMF150/33X-2 CAD Models
MF-LSMF150/33X-2 Part Data Attributes
|
|
MF-LSMF150/33X-2
Bourns Inc
Buy Now
Datasheet
|
Compare Parts:
MF-LSMF150/33X-2
Bourns Inc
PTC Resettable Fuse, 0.05ohm, Surface Mount, CHIP
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | BOURNS INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Description | 2920 Resettable SMD PPTC 1.5A/33V | |
| Samacsys Manufacturer | Bourns | |
| Samacsys Modified On | 2023-03-07 16:10:32 | |
| Category CO2 Kg | 4.54 | |
| Compliance Temperature Grade | Industrial: -40C to +85C | |
| EU RoHS Version | RoHS 2 (2015/863/EU) | |
| Candidate List Date | 2024-06-27 | |
| EFUP | e | |
| Conflict Mineral Status | DRC Conflict Free | |
| Conflict Mineral Status Source | CMRT V6.40 | |
| Additional Feature | RMIN AT 23 DEG CEL | |
| JESD-609 Code | e4 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 1.6 mm | |
| Package Length | 7.98 mm | |
| Package Style | SMT | |
| Package Width | 5.44 mm | |
| Packing Method | TR, 13 INCH | |
| Reference Standard | CUL; TUV; UL | |
| Resistance | 0.05 Ω | |
| Resistor Type | PTC RESETTABLE FUSE | |
| Surface Mount | YES | |
| Terminal Finish | GOLD OVER NICKEL | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | WRAPAROUND | |
| Thermistor Application | OVERCURRENT PROTECTION | |
| Working Voltage | 33 V |
