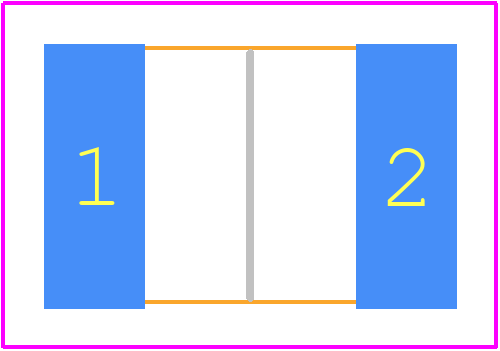

Footprint
-

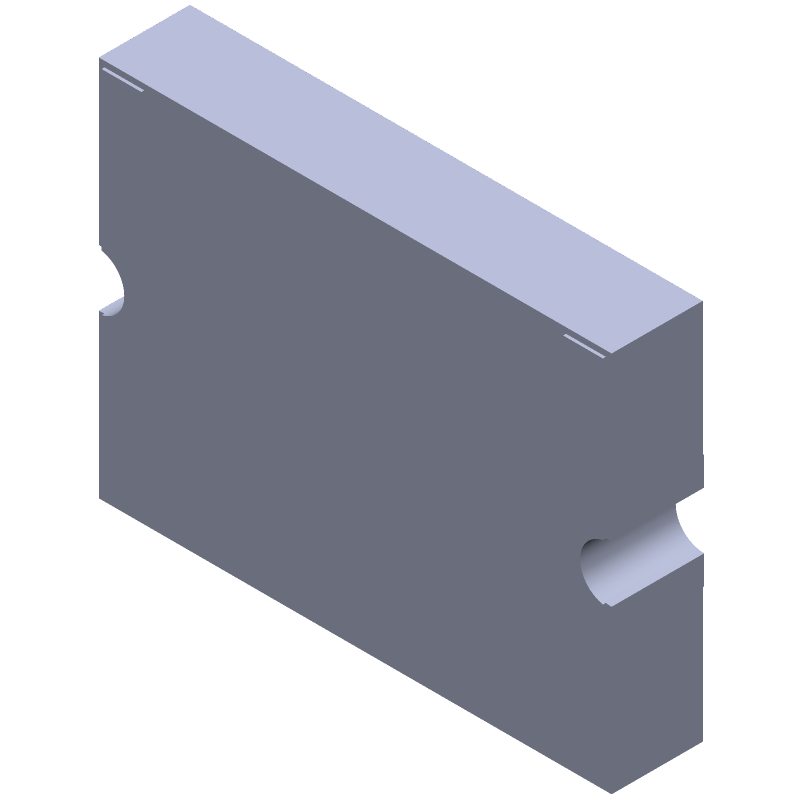

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MF-GSMF300/36X-2 by Bourns Inc
Results Overview of MF-GSMF300/36X-2 by Bourns Inc
- Distributor Offerings: (19 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Automotive
MF-GSMF300/36X-2 Information
MF-GSMF300/36X-2 by Bourns Inc is a Non-linear Resistor.
Non-linear Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for MF-GSMF300/36X-2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
33AH9145
|
Newark | Ptc Resettable Fuse, 36V, 3425, Pptc Case Style:3425 (8763 Metric), Product Range:Mf-Gsmf Series, Voltage Rating:36V, Holding Current:3A, Trip Current:5.2A, Time To Trip:20S, Current Rating Max:20A, Operating Temperature Min:-40°C Rohs Compliant: Yes |Bourns MF-GSMF300/36X-2 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 3014 |
|
$0.6290 / $0.8000 | Buy Now |
|
DISTI #
MF-GSMF300/36X-2CT-ND
|
DigiKey | PTC RESET FUSE 36V 3A SMD Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.5500 / $1.5300 | Buy Now |
|
DISTI #
MF-GSMF300/36X-2
|
Avnet Americas | Resettable Fuse, PPTC, 3425 (8763 Metric), MF-GSMF, 36 VDC, 3 A, 5.2 A, 20 s - Tape and Reel (Alt: MF-GSMF300/36X-2) RoHS: Not Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.5199 / $0.6560 | Buy Now |
|
DISTI #
33AH9145
|
Avnet Americas | Resettable Fuse, PPTC, 3425 (8763 Metric), MF-GSMF, 36 VDC, 3 A, 5.2 A, 20 s - Product that comes on tape, but is not reeled (Alt: 33AH9145) RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks, 3 Days Container: Ammo Pack | 0 |
|
$0.8310 / $1.3000 | Buy Now |
|
DISTI #
652-MF-GSMF300/36X-2
|
Mouser Electronics | Resettable Fuses - PPTC 36V 3.0A-HD 20A MAX RoHS: Compliant | 17391 |
|
$0.6130 / $1.2700 | Buy Now |
|
DISTI #
E02:0323_13911595
|
Arrow Electronics | PTC Resettable Fuse 3A(hold) 5.2A(trip) 36V 20A 1.5W 20s 0.01Ohm SMD Solder Pad 3425 3.5 X 1.8 X 0.7mm T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 14 Weeks Date Code: 2449 | Europe - 3000 |
|
$0.6802 | Buy Now |
|
DISTI #
V72:2272_23469118
|
Arrow Electronics | PTC Resettable Fuse 3A(hold) 5.2A(trip) 36V 20A 1.5W 20s 0.01Ohm SMD Solder Pad 3425 3.5 X 1.8 X 0.7mm T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2349 Container: Cut Strips | Americas - 279 |
|
$0.6980 / $0.9444 | Buy Now |
|
DISTI #
71733103
|
RS | 3425 SMD Polymer PTC 3.0A/36V Min Qty: 3000 Package Multiple: 1 Lead time: 13 Weeks, 0 Days Container: Bulk | 0 |
|
$1.3600 / $1.4300 | RFQ |
|
|
Onlinecomponents.com | PTC Resettable Fuse RoHS: Compliant |
2366 In Stock |
|
$0.6380 / $0.7300 | Buy Now |
|
DISTI #
64958732
|
Verical | PTC Resettable Fuse 3A(hold) 5.2A(trip) 36V 20A 1.5W 20s 0.01Ohm SMD Solder Pad 3425 3.5 X 1.8 X 0.7mm T/R RoHS: Compliant Min Qty: 42 Package Multiple: 1 | Americas - 4593 |
|
$0.7020 / $1.0700 | Buy Now |
Part Details for MF-GSMF300/36X-2
MF-GSMF300/36X-2 CAD Models
MF-GSMF300/36X-2 Part Data Attributes
|
|
MF-GSMF300/36X-2
Bourns Inc
Buy Now
Datasheet
|
Compare Parts:
MF-GSMF300/36X-2
Bourns Inc
PTC Resettable Fuse,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | BOURNS INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.40.80.70 | |
| Factory Lead Time | 13 Weeks, 3 Days | |
| Samacsys Manufacturer | Bourns | |
| Additional Feature | RMIN AT 23 DEG CEL | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 1.6 mm | |
| Package Length | 9 mm | |
| Package Style | SMT | |
| Package Width | 6.7 mm | |
| Packing Method | TR, 13 INCH | |
| Reference Standard | CUL; TUV; UL | |
| Resistance | 0.01 Ω | |
| Resistor Type | PTC RESETTABLE FUSE | |
| Surface Mount | YES | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | WRAPAROUND | |
| Thermistor Application | OVERCURRENT PROTECTION | |
| Working Voltage | 36 V |
MF-GSMF300/36X-2 Frequently Asked Questions (FAQ)
-
A symmetrical layout with a solid ground plane and minimal signal trace length is recommended. Keep the component away from high-frequency sources and ensure good thermal dissipation.
-
Follow the recommended reflow profile, use a solder paste with a melting point below 220°C, and ensure the component is properly aligned on the PCB. Avoid excessive thermal stress and mechanical shock.
-
The MF-GSMF300/36X-2 is rated for operation from -40°C to 125°C. However, derating may be necessary for high-frequency applications or extreme environmental conditions.
-
While the component is designed to withstand normal handling and mounting, it's not intended for extreme vibration or shock environments. Consider additional mechanical support or alternative components for such applications.
-
Verify proper PCB layout, soldering, and component orientation. Check for signs of physical damage, overheating, or electrical overstress. Consult the datasheet and application notes for troubleshooting guidelines.
