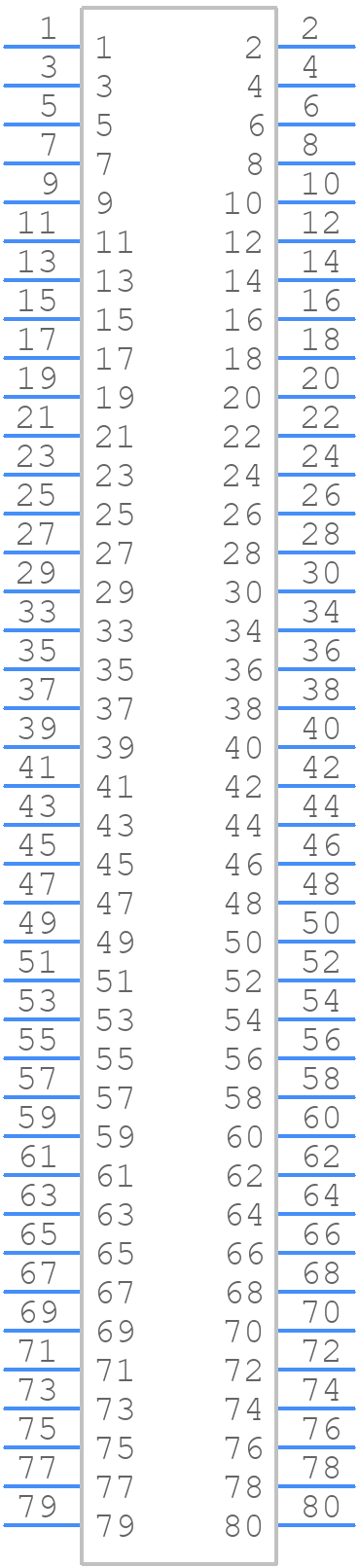

Part Symbol
-
Footprint
-

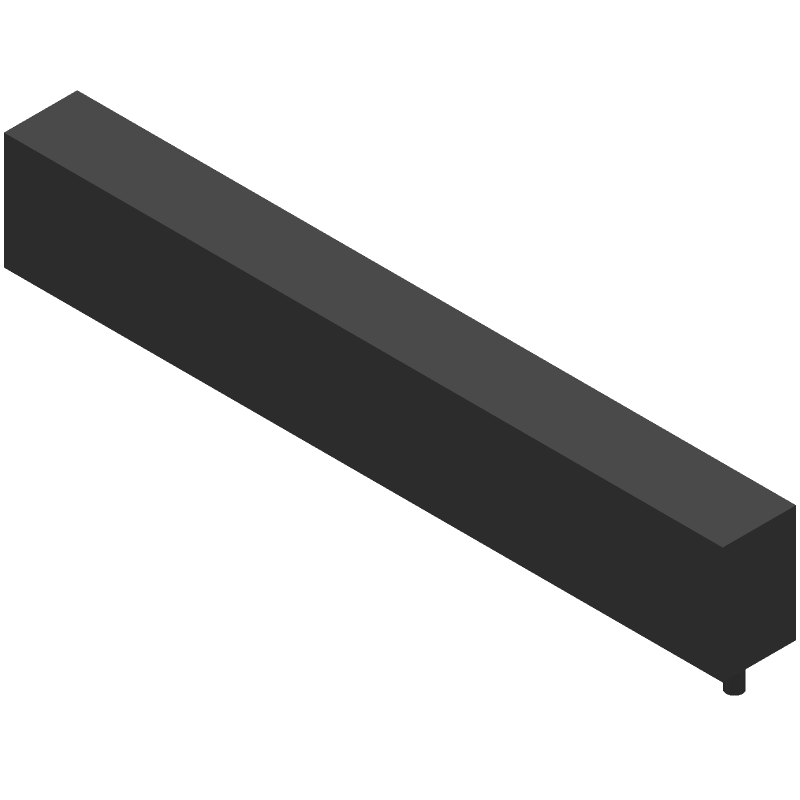

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MECF-40-01-L-DV by Samtec Inc
Results Overview of MECF-40-01-L-DV by Samtec Inc
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Security and Surveillance
Internet of Things (IoT)
Telecommunications
Communication and Networking
MECF-40-01-L-DV Information
MECF-40-01-L-DV by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for MECF-40-01-L-DV
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
MECF-40-01-L-DV-ND
|
DigiKey | CONN EDGE DUAL FMALE 80POS 0.05 Min Qty: 1 Lead time: 6 Weeks Container: Tube |
4 In Stock |
|
$5.3880 / $7.1200 | Buy Now |
|
DISTI #
MECF-40-01-L-DV
|
Avnet Americas | - Rail/Tube (Alt: MECF-40-01-L-DV) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 111 Weeks, 0 Days Container: Tube | 0 |
|
$4.6464 / $6.9776 | Buy Now |
|
DISTI #
200-MECF4001LDV
|
Mouser Electronics | Standard Card Edge Connectors .050" Mini Edge Card Connector RoHS: Compliant | 23 |
|
$4.2200 / $7.1200 | Buy Now |
|
|
Onlinecomponents.com | .050" Mini Edge Card Connector, Vertical RoHS: Compliant | 0 |
|
$3.0400 / $8.6300 | Buy Now |
|
DISTI #
5cd8fe91cd7c1c4c38526eb6
|
Samtec | RoHS: Compliant Min Qty: 1 Lead time: 1 Weeks, 3 Days Container: Tube | 0 |
|
$2.8900 / $7.1200 | Buy Now |
|
DISTI #
000000000003518642
|
Sager | Standard Card Edge Connectors .050 Mini Edge Card Connector, Vertical Min Qty: 1 | 0 |
|
$4.4500 / $7.1200 | Buy Now |
|
|
Master Electronics | .050" Mini Edge Card Connector, Vertical RoHS: Compliant | 0 |
|
$3.0400 / $8.6300 | Buy Now |
Part Details for MECF-40-01-L-DV
MECF-40-01-L-DV CAD Models
MECF-40-01-L-DV Part Data Attributes
|
|
MECF-40-01-L-DV
Samtec Inc
Buy Now
Datasheet
|
Compare Parts:
MECF-40-01-L-DV
Samtec Inc
Card Edge Connector, 80 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | SAMTEC INC | |
| Package Description | ROHS COMPLIANT | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.40 | |
| Factory Lead Time | 111 Weeks | |
| Samacsys Manufacturer | SAMTEC | |
| Additional Feature | POLARIZED | |
| Board Mounting Option | PEG | |
| Body Breadth | 0.22 inch | |
| Body Depth | 0.346 inch | |
| Body Length | 2.162 inch | |
| Body/Shell Style | SOCKET | |
| Connector Type | CARD EDGE CONNECTOR | |
| Contact Finish Mating | NOT SPECIFIED | |
| Contact Finish Termination | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Contact Gender | FEMALE | |
| Contact Material | NOT SPECIFIED | |
| Contact Pattern | RECTANGULAR | |
| Contact Style | BELLOWED TYPE | |
| DIN Conformance | NO | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| Insulator Color | BLACK | |
| Insulator Material | LIQUID CRYSTAL POLYMER | |
| JESD-609 Code | e3 | |
| MIL Conformance | NO | |
| Mating Contact Pitch | 0.05 inch | |
| Mixed Contacts | NO | |
| Mounting Option 1 | LOCKING | |
| Mounting Style | STRAIGHT | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number of Rows Loaded | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Option | GENERAL PURPOSE | |
| Plating Thickness | 10u inch | |
| Rated Current (Signal) | 3.5 A | |
| Reference Standard | UL | |
| Terminal Pitch | 1.27 mm | |
| Termination Type | SURFACE MOUNT | |
| Total Number of Contacts | 80 |
