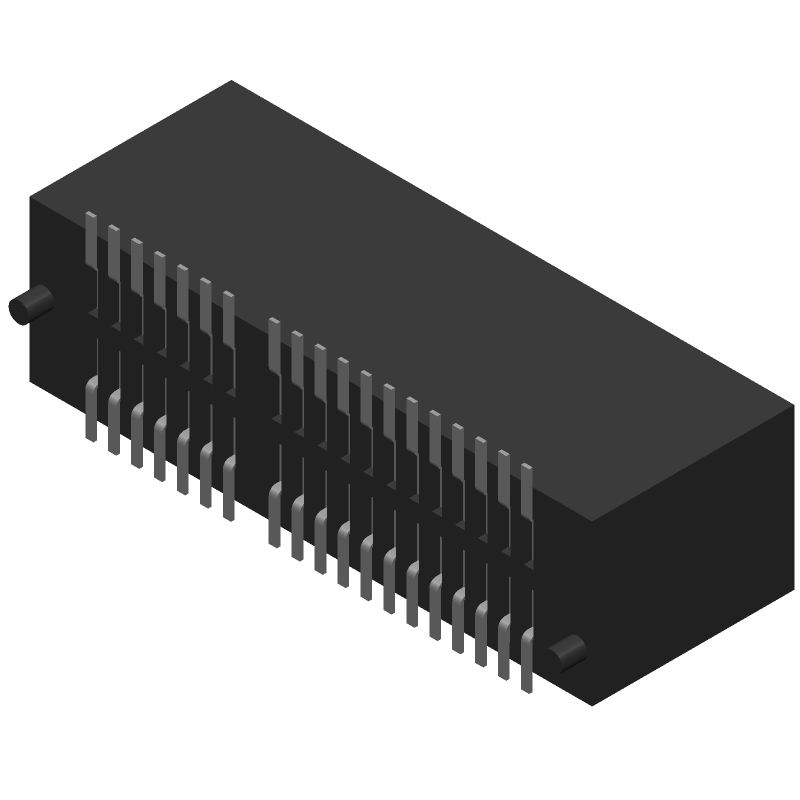

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MEC1-120-02-L-D-A-K-TR by Samtec Inc
Results Overview of MEC1-120-02-L-D-A-K-TR by Samtec Inc
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MEC1-120-02-L-D-A-K-TR Information
MEC1-120-02-L-D-A-K-TR by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| LD09P24A4GV00LF | Amphenol Communications Solutions | D-Subminiature Economy Range, Input Output Connectors, Signal 9 way Pin Straight, Solder, 50 cycles, Harpoons + Female Screw UNC 4 - 40 + Elec cont., 1.6 mm PCB thickness | |
| DB5W5P543M40LF | Amphenol Communications Solutions | D-Sub Power Board Mount Connectors, Input Output Connectors, Full Power 5W5 Pin Right Angle Solder 40A, Europe Standard, 500 Cycles, Front: Without Accessory, Back: Metal Brackets. | |
| DCV8W8P543M30LF | Amphenol Communications Solutions | D-Sub Power Board Mount Connectors, Input Output Connectors, Full Power 8W8 Pin Right Angle Solder 30A, Europe Standard, 500 Cycles, Front: Female Screw Lock UNC 4.40, Back: Metal Brackets. |
Price & Stock for MEC1-120-02-L-D-A-K-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
54AJ5329
|
Newark | Card Edge Conn, Dual Side, 40Pos, Smt, Card Edge Connector Type:Dual Side, Card Thickness:1.57Mm, No. Of Contacts:40 Contacts, Connector Mounting:Surface Mount, Connector Body Orientation:Straight, Contact Termination Type:Solder Rohs Compliant: Yes |Samtec MEC1-120-02-L-D-A-K-TR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 422 |
|
$4.0400 / $5.7800 | Buy Now |
|
DISTI #
96AH1228
|
Newark | Card Edge Conn, Dual Side, 40Pos, Smt, Card Edge Connector Type:Dual Side, Card Thickness:1.57Mm, No. Of Contacts:40 Contacts, Connector Mounting:Surface Mount, Connector Body Orientation:Straight, Contact Termination Type:Solder Rohs Compliant: Yes |Samtec MEC1-120-02-L-D-A-K-TR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
Buy Now | |
|
DISTI #
SAM14182CT-ND
|
DigiKey | CONN EDGE DUAL FMALE 40POS 0.039 Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
417 In Stock |
|
$3.3981 / $5.9600 | Buy Now |
|
DISTI #
MEC1-120-02-L-D-A-K-TR
|
Avnet Americas | Conn Card Edge SKT 40 POS 1mm Solder ST SMD T/R - Tape and Reel (Alt: MEC1-120-02-L-D-A-K-TR) RoHS: Compliant Min Qty: 200 Package Multiple: 200 Lead time: 1 Weeks, 0 Days Container: Reel | 4919 Factory Stock |
|
$3.1622 / $3.8066 | Buy Now |
|
DISTI #
200-MEC112002LDAKTR
|
Mouser Electronics | Standard Card Edge Connectors 1.00 mm Mini Edge Card Socket RoHS: Compliant | 255 |
|
$3.4000 / $5.9600 | Buy Now |
|
|
Onlinecomponents.com | 1.00 mm Mini Edge Card Socket, Vertical RoHS: Compliant | 0 |
|
$2.8500 / $5.6900 | Buy Now |
|
DISTI #
85033178
|
Verical | Conn Card Edge SKT 40 POS 1mm Solder ST SMD T/R RoHS: Compliant Min Qty: 2 Package Multiple: 1 | Americas - 4919 |
|
$2.8100 / $5.9600 | Buy Now |
|
DISTI #
5cd8fef4cd7c1c4c3852dfb5
|
Samtec | 1.00 mm Mini Edge Card Socket, Vertical RoHS: Compliant Min Qty: 1 Lead time: 4 Weeks, 1 Days Container: Tape & Reel | 0 |
|
$2.8100 / $5.9600 | Buy Now |
|
|
Powell Electronics | 1.00 mm Mini Edge Card Skt Vertical Min Qty: 1 | 3247 |
|
$3.7600 / $5.9600 | Buy Now |
|
DISTI #
000000000001321755
|
Sager | Standard Card Edge Connectors 1.00 mm Mini Edge Card Socket, Vertical Min Qty: 1 | 4919 |
|
$3.4000 / $5.9600 | Buy Now |
Part Details for MEC1-120-02-L-D-A-K-TR
MEC1-120-02-L-D-A-K-TR CAD Models
MEC1-120-02-L-D-A-K-TR Part Data Attributes
|
|
MEC1-120-02-L-D-A-K-TR
Samtec Inc
Buy Now
Datasheet
|
Compare Parts:
MEC1-120-02-L-D-A-K-TR
Samtec Inc
Card Edge Connector, 40 Contact(s), 2 Row(s), Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking, Black Insulator
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | SAMTEC INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.40 | |
| Factory Lead Time | 1 Week | |
| Samacsys Manufacturer | SAMTEC | |
| Body Breadth | 0.275 inch | |
| Body Depth | 0.35 inch | |
| Body Length | 0.887 inch | |
| Connector Type | CARD EDGE CONNECTOR | |
| Contact Finish Mating | AU ON NI | |
| Contact Finish Termination | Tin (Sn) - with Nickel (Ni) barrier | |
| Contact Material | BERYLLIUM COPPER | |
| Contact Pattern | RECTANGULAR | |
| Contact Style | BELLOWED TYPE | |
| Filter Feature | NO | |
| Insulator Color | BLACK | |
| Insulator Material | LIQUID CRYSTAL POLYMER | |
| JESD-609 Code | e3 | |
| Mating Contact Pitch | 0.039 inch | |
| Mixed Contacts | NO | |
| Mounting Option 1 | LOCKING | |
| Mounting Style | STRAIGHT | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number Of PCB Rows | 2 | |
| Number of Rows Loaded | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| PCB Contact Pattern | RECTANGULAR | |
| PCB Contact Row Spacing | 7.0612 mm | |
| Plating Thickness | 10u inch | |
| Rated Current (Signal) | 2.2 A | |
| Reference Standard | UL | |
| Terminal Pitch | 0.9906 mm | |
| Termination Type | SURFACE MOUNT | |
| Total Number of Contacts | 40 |
Alternate Parts for MEC1-120-02-L-D-A-K-TR
This table gives cross-reference parts and alternative options found for MEC1-120-02-L-D-A-K-TR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MEC1-120-02-L-D-A-K-TR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| JBB20DYRT | Sullins Connector Solutions | Check for Price | Card Edge Connector, 40 Contact(s), 2 Row(s), Right Angle, 0.05 inch Pitch, Surface Mount Terminal, Locking | MEC1-120-02-L-D-A-K-TR vs JBB20DYRT |
| FCN-225J040-G/A-HN | FUJITSU Semiconductor Limited | Check for Price | EDGE CONNECTOR,PCB MNT,RECEPT,40 CONTACTS,0.05 PITCH,PC TAIL TERMINAL | MEC1-120-02-L-D-A-K-TR vs FCN-225J040-G/A-HN |
| 88134-3451-09 | Aces Electronics Co Ltd | Check for Price | Board Connector, 34 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Receptacle | MEC1-120-02-L-D-A-K-TR vs 88134-3451-09 |
| RZB20DHHN | Sullins Connector Solutions | Check for Price | Card Edge Connector, 40 Contact(s), 2 Row(s), Straight, 0.05 inch Pitch, Solder Terminal, Locking | MEC1-120-02-L-D-A-K-TR vs RZB20DHHN |
| PH5S10-150TB1.9/1.2-U | AMtek Semiconductors Co Ltd | Check for Price | Board Connector, 50 Contact(s), 1 Row(s), Male, Straight, 0.039 inch Pitch, Solder Terminal, Black Insulator, Receptacle | MEC1-120-02-L-D-A-K-TR vs PH5S10-150TB1.9/1.2-U |
| FCN-224J040-G/O | FUJITSU Semiconductor Limited | Check for Price | EDGE CONNECTOR,PCB MNT,RECEPT,40 CONTACTS,0.05 PITCH,PC TAIL TERMINAL | MEC1-120-02-L-D-A-K-TR vs FCN-224J040-G/O |
| JBB20DYRQ | Sullins Connector Solutions | Check for Price | Card Edge Connector, 40 Contact(s), 2 Row(s), Right Angle, 0.05 inch Pitch, Surface Mount Terminal, Locking | MEC1-120-02-L-D-A-K-TR vs JBB20DYRQ |
| ACC20DRSH-S328 | Sullins Connector Solutions | Check for Price | Card Edge Connector, 40 Contact(s), 2 Row(s), Straight, 0.1 inch Pitch, Solder Terminal, Locking | MEC1-120-02-L-D-A-K-TR vs ACC20DRSH-S328 |
| ECC-040-R100-95 | E-tec Interconnect Ltd | Check for Price | Card Edge Connector, 40 Contact(s), 2 Row(s), Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Plug | MEC1-120-02-L-D-A-K-TR vs ECC-040-R100-95 |
| LZE20DHRR | Sullins Connector Solutions | Check for Price | Card Edge Connector, 40 Contact(s), 2 Row(s), 0.039 inch Pitch, Surface Mount Terminal, Locking, Receptacle | MEC1-120-02-L-D-A-K-TR vs LZE20DHRR |
MEC1-120-02-L-D-A-K-TR Frequently Asked Questions (FAQ)
-
The operating temperature range of the MEC1-120-02-L-D-A-K-TR connector is -55°C to 125°C.
-
Yes, the MEC1-120-02-L-D-A-K-TR connector is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
-
The mating cycle life of the MEC1-120-02-L-D-A-K-TR connector is 500 cycles.
-
Yes, the MEC1-120-02-L-D-A-K-TR connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, automotive, and industrial control systems.
-
Yes, the MEC1-120-02-L-D-A-K-TR connector is designed to operate in harsh environments, including those with high temperatures, humidity, and exposure to chemicals.
