Resistors / Thin Film Resistors / MCU08050C1000FP500
Datasheets
MCU08050C1000FP500 by:

Fixed Resistor, Thin Film, 0.125W, 100ohm, 150V, 1% +/-Tol, 50ppm/Cel, Surface Mount, 0805, CHIP

Part Details for MCU08050C1000FP500 by Vishay Intertechnologies

Results Overview of MCU08050C1000FP500 by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

MCU08050C1000FP500 Information

MCU08050C1000FP500 by Vishay Intertechnologies is a Thin Film Resistor.
Thin Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for MCU08050C1000FP500

Part # Distributor Description Stock Price Buy
DISTI # 96Y9455
Newark Res, 100R, 1%, 0.2W, 0805, Thin Film, Resistor Case Style:0805 [2012 Metric], Resistance:100Ohm, Product Range:Mcu 0805 Series, Voltage Rating:150V, Resistor Element Material:Thin Film, Power Rating:200Mw, Resistance Tolerance:± 1%, Rohs Compliant: Yes |Vishay MCU08050C1000FP500 RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 1 Container: Cut Tape 28640
  • 10 $0.1050
  • 25 $0.0990
  • 50 $0.0940
  • 100 $0.0880
$0.0880 / $0.1050 Buy Now
DISTI # 64P5576
Newark Mcu 0805-50 1% P5 100R |Vishay MCU08050C1000FP500 RoHS: Not Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 5,000 $0.0700
  • 10,000 $0.0570
  • 20,000 $0.0500
  • 30,000 $0.0460
  • 50,000 $0.0400
$0.0400 / $0.0700 Buy Now
DISTI # MCU08050C1000FP500
Avnet Americas SMD Chip Resistor, 100 ohm, ? 1%, 200 mW, 0805 [2012 Metric], Thin Film, High Power - Tape and Reel (Alt: MCU08050C1000FP500) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 9 Weeks, 0 Days Container: Reel 0
  • 5,000 $0.0395
  • 10,000 $0.0387
  • 20,000 $0.0383
  • 30,000 $0.0376
  • 40,000 $0.0365
$0.0365 / $0.0395 Buy Now
DISTI # 594-MCU08050C1000FP5
Mouser Electronics Thin Film Resistors - SMD .125W 100ohms 1% 0805 50ppm RoHS: Compliant 14088
  • 1 $0.1800
  • 10 $0.1010
  • 100 $0.0840
  • 500 $0.0640
  • 1,000 $0.0570
  • 5,000 $0.0460
  • 10,000 $0.0400
  • 25,000 $0.0390
$0.0390 / $0.1800 Buy Now
DISTI # V72:2272_09242874
Arrow Electronics Res Thin Film 0805 100 Ohm 1% 0.125W(1/8W) ±50ppm/°C Sulfur Resistant Pad SMD T/R Medical Min Qty: 1 Package Multiple: 1 Lead time: 9 Weeks Date Code: 2138 Container: Cut Strips Americas - 984
  • 1 $0.0430
  • 10 $0.0348
  • 25 $0.0312
  • 100 $0.0300
  • 250 $0.0297
  • 500 $0.0168
$0.0168 / $0.0430 Buy Now
DISTI # 59282740
Verical Res Thin Film 0805 100 Ohm 1% 0.125W(1/8W) ±50ppm/°C Sulfur Resistant Pad SMD T/R Medical Min Qty: 156 Package Multiple: 1 Date Code: 2138 Americas - 984
  • 550 $0.0168
$0.0168 Buy Now
Bristol Electronics   5000
RFQ
Bristol Electronics   3040
RFQ
Quest Components FIXED RESISTOR, THIN FILM, 0.125W, 100OHM, 150V, 1% +/-TOL, 50PPM/CEL, SURFACE MOUNT, 0805 2432
  • 1 $0.2910
  • 44 $0.1310
  • 383 $0.0873
$0.0873 / $0.2910 Buy Now
DISTI # MCU08050C1000FP500
TTI Thin Film Resistors - SMD .125W 100ohms 1% 0805 50ppm RoHS: Compliant pbFree: Pb-Free Min Qty: 5000 Package Multiple: 5000 Container: Reel Americas - 5000
In Stock
  • 5,000 $0.0460
  • 10,000 $0.0400
$0.0400 / $0.0460 Buy Now
DISTI # MCU08050C1000FP500
Avnet Abacus SMD Chip Resistor 100 ohm 1 200 mW 0805 2012 Metric Thin Film High Power (Alt: MCU08050C1000FP500) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 12 Weeks, 0 Days Abacus - 235000
Buy Now
New Advantage Corporation PRECISION FLAT CHIP, TAPE, 7"-REEL 0805 RoHS: Compliant Min Qty: 1 Package Multiple: 5000 55000
  • 5,000 $0.0200
$0.0200 Buy Now
Vyrian Resistors 17100
RFQ

Part Details for MCU08050C1000FP500

MCU08050C1000FP500 CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

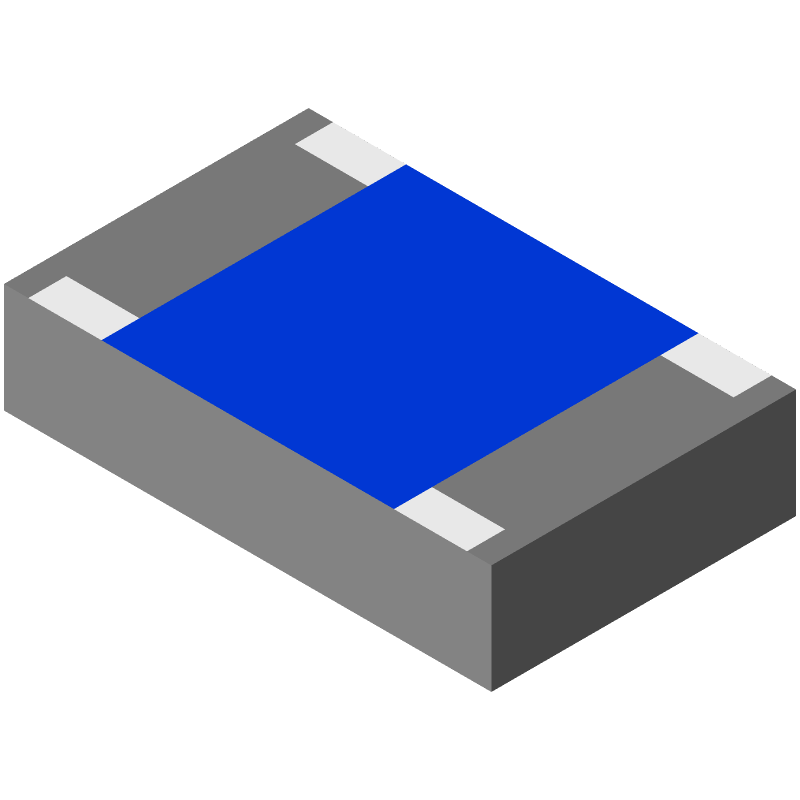

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MCU08050C1000FP500 Part Data Attributes

Parametric Data
MCU08050C1000FP500 Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
MCU08050C1000FP500 Vishay Intertechnologies Fixed Resistor, Thin Film, 0.125W, 100ohm, 150V, 1% +/-Tol, 50ppm/Cel, Surface Mount, 0805, CHIP
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Package Description CHIP
Reach Compliance Code compliant
Factory Lead Time 9 Weeks
Samacsys Manufacturer Vishay
Additional Feature ANTI-SULFUR;RATED AC VOLTAGE:150V
Construction Rectangular
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Height 0.45 mm
Package Length 2 mm
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Package Width 1.25 mm
Packing Method TR, Paper, 7 Inch
Rated Power Dissipation (P) 0.125 W
Rated Temperature 70 °C
Reference Standard CECC40401-801
Resistance 100 Ω
Resistor Type FIXED RESISTOR
Size Code 0805
Surface Mount YES
Technology THIN FILM
Temperature Coefficient 50 ppm/°C
Terminal Finish TIN OVER NICKEL
Terminal Shape WRAPAROUND
Tolerance 1%
Working Voltage 150 V

Alternate Parts for MCU08050C1000FP500

This table gives cross-reference parts and alternative options found for MCU08050C1000FP500. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MCU08050C1000FP500, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MCU0805HC1000FP100 Vishay Intertechnologies $0.6515 Fixed Resistor, Thin Film, 0.125W, 100ohm, 150V, 1% +/-Tol, 50ppm/Cel, Surface Mount, 0805, CHIP MCU08050C1000FP500 vs MCU0805HC1000FP100
MCU0805HC1000FP500 Vishay Beyschlag Check for Price RESISTOR, THIN FILM, 0.125 W, 1 %, 50 ppm, 100 ohm, SURFACE MOUNT, 0805, CHIP, ROHS COMPLIANT MCU08050C1000FP500 vs MCU0805HC1000FP500
MCU0805HC1000FP1 Vishay Intertechnologies Check for Price Fixed Resistor, Thin Film, 0.125W, 100ohm, 150V, 1% +/-Tol, 50ppm/Cel, Surface Mount, 0805, CHIP MCU08050C1000FP500 vs MCU0805HC1000FP1
RT0805FRE13100R YAGEO Corporation Check for Price Fixed Resistor, Thin Film, 0.125W, 100ohm, 150V, 1% +/-Tol, 50ppm/Cel, Surface Mount, 0805, CHIP, ROHS COMPLIANT MCU08050C1000FP500 vs RT0805FRE13100R
MCU0805HC1000FP5 Vishay Intertechnologies Check for Price Fixed Resistor, Thin Film, 0.125W, 100ohm, 150V, 1% +/-Tol, 50ppm/Cel, Surface Mount, 0805, CHIP MCU08050C1000FP500 vs MCU0805HC1000FP5
RB10FBS1000 TA-I Technology Co Ltd Check for Price Fixed Resistor, Thin Film, 0.125W, 100ohm, 150V, 1% +/-Tol, 50ppm/Cel, Surface Mount, 0805, CHIP, LEAD FREE MCU08050C1000FP500 vs RB10FBS1000
RT0805FRE10100R YAGEO Corporation Check for Price Fixed Resistor, Thin Film, 0.125W, 100ohm, 150V, 1% +/-Tol, 50ppm/Cel, Surface Mount, 0805, CHIP, ROHS COMPLIANT MCU08050C1000FP500 vs RT0805FRE10100R
9T08052A1000FBPF3 YAGEO Corporation Check for Price Fixed Resistor, Thin Film, 0.125W, 100ohm, 150V, 1% +/-Tol, -50,50ppm/Cel, 0805, MCU08050C1000FP500 vs 9T08052A1000FBPF3
RT0805FRE07100R YAGEO Corporation Check for Price Fixed Resistor, Thin Film, 0.125W, 100ohm, 150V, 1% +/-Tol, 50ppm/Cel, Surface Mount, 0805, CHIP, ROHS COMPLIANT MCU08050C1000FP500 vs RT0805FRE07100R
MCU08050C1000FPW0S Vishay Intertechnologies Check for Price Fixed Resistor, Thin Film, 0.125W, 100ohm, 150V, 1% +/-Tol, 50ppm/Cel, Surface Mount, 0805, CHIP MCU08050C1000FP500 vs MCU08050C1000FPW0S

MCU08050C1000FP500 Related Parts

MCU08050C1000FP500 Frequently Asked Questions (FAQ)

  • The recommended land pattern for MCU08050C1000FP500 can be found in Vishay's application note AN483, which provides guidelines for surface-mount assembly of chip resistors and arrays.

  • To prevent damage, handle the MCU08050C1000FP500 by the edges, avoid touching the component's surface, and use anti-static wrist straps or mats to prevent electrostatic discharge (ESD).

  • The maximum power rating for the MCU08050C1000FP500 is 0.5 W, as specified in the datasheet. However, it's essential to consider the operating temperature and thermal resistance to ensure the component operates within its safe operating area.

  • The MCU08050C1000FP500 is a general-purpose chip resistor, and its frequency response is not optimized for high-frequency applications. For high-frequency applications, consider using specialized resistors designed for high-frequency use, such as Vishay's HF series.

  • The reliability and lifespan of the MCU08050C1000FP500 can be determined by considering factors such as operating temperature, humidity, and power rating. Vishay provides reliability data and guidelines in their application notes and technical resources.
