Optoelectronics / Optocoupler / MCT6
Datasheets
MCT6 by:

Transistor Output Optocoupler, 2-Element, 5300V Isolation, DIP-8

Part Details for MCT6 by Vishay Intertechnologies

Results Overview of MCT6 by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Space Technology Industrial Automation Aerospace and Defense Transportation and Logistics Renewable Energy Automotive Robotics and Drones

MCT6 Information

MCT6 by Vishay Intertechnologies is an Optocoupler.
Optocoupler are under the broader part category of Optoelectronics.

Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.

Price & Stock for MCT6

Part # Distributor Description Stock Price Buy
DISTI # 58K1824
Newark Optocoupler, Phototransistor, 5300Vrms, No. Of Channels:2 Channel, Optocoupler Case Style:Dip, No. Of Pins:8Pins, Forward Current If Max:60Ma, Isolation Voltage:5.3Kv, Ctr Min:20%, Collector Emitter Voltage V(Br)Ceo:30V Rohs Compliant: Yes |Vishay MCT6 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 873
  • 1 $1.0500
  • 10 $0.6990
  • 25 $0.6950
  • 50 $0.6920
  • 100 $0.6880
  • 500 $0.6540
  • 1,000 $0.6190
  • 2,500 $0.5850
$0.5850 / $1.0500 Buy Now
DISTI # MCT6
Avnet Americas DIP-8 CPL DUAL CTR>20% -e3 - Bulk (Alt: MCT6) RoHS: Compliant Min Qty: 4000 Package Multiple: 1000 Lead time: 111 Weeks, 0 Days Container: Bulk 0
  • 2,000 $0.4499
  • 4,000 $0.4415
  • 8,000 $0.4347
  • 12,000 $0.4280
  • 16,000 $0.4213
$0.4213 / $0.4499 Buy Now
DISTI # 782-MCT6
Mouser Electronics Transistor Output Optocouplers Dual Phototransistor RoHS: Compliant 639
  • 1 $1.1800
  • 10 $0.8440
  • 100 $0.7130
  • 500 $0.6280
  • 1,000 $0.5940
  • 2,000 $0.5040
  • 10,000 $0.5020
$0.5020 / $1.1800 Buy Now
DISTI # V99:2348_07450010
Arrow Electronics Optocoupler DC-IN 2-CH Transistor DC-OUT 8-Pin PDIP RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 4 Weeks Date Code: 2241 Americas - 164
  • 1 $0.7092
  • 10 $0.5964
  • 100 $0.5186
  • 500 $0.4935
  • 1,000 $0.4892
  • 2,000 $0.4086
$0.4086 / $0.7092 Buy Now
DISTI # 67539652
Verical Optocoupler DC-IN 2-CH Transistor DC-OUT 8-Pin PDIP RoHS: Compliant Min Qty: 14 Package Multiple: 1 Date Code: 2241 Americas - 164
  • 14 $0.4086
$0.4086 Buy Now
Bristol Electronics   400
RFQ
Bristol Electronics   25
RFQ
Quest Components 2 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER 320
  • 1 $1.2430
  • 21 $0.7458
  • 81 $0.6215
$0.6215 / $1.2430 Buy Now
DISTI # MCT6
EBV Elektronik DIP8 CPL DUAL CTR20 e3 (Alt: MCT6) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 143 Weeks, 0 Days EBV - 450
Buy Now

Part Details for MCT6

MCT6 CAD Models

  • Part Symbol

    Part Symbol

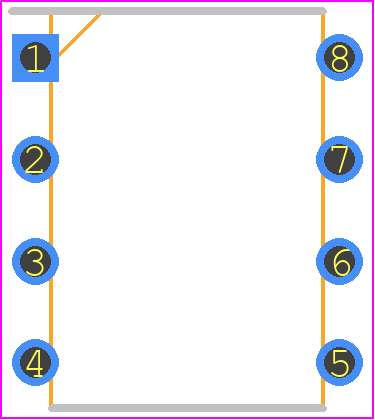

  • Footprint

    footprint

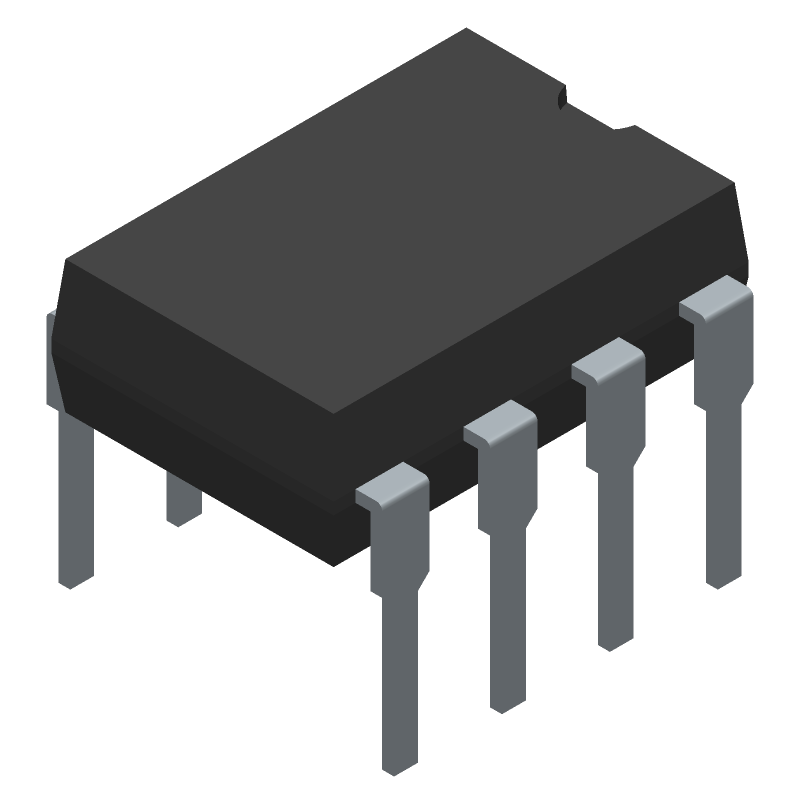

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MCT6 Part Data Attributes

Parametric Data
MCT6 Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
MCT6 Vishay Intertechnologies Transistor Output Optocoupler, 2-Element, 5300V Isolation, DIP-8
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Obsolete
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8541.40.80.00
Factory Lead Time 111 Weeks
Samacsys Manufacturer Vishay
Additional Feature UL RECOGNIZED
Coll-Emtr Bkdn Voltage-Min 30 V
Configuration SEPARATE, 2 CHANNELS
Current Transfer Ratio-Min 20%
Current Transfer Ratio-Nom 50%
Dark Current-Max 100 nA
Forward Current-Max 0.06 A
Forward Voltage-Max 1.5 V
Isolation Voltage-Max 5300 V
JESD-609 Code e3
Mounting Feature THROUGH HOLE MOUNT
Number of Elements 2
On-State Current-Max 0.03 A
Operating Temperature-Max 100 °C
Operating Temperature-Min -55 °C
Optoelectronic Device Type TRANSISTOR OUTPUT OPTOCOUPLER
Power Dissipation-Max 0.15 W
Surface Mount NO
Terminal Finish Matte Tin (Sn)

Alternate Parts for MCT6

This table gives cross-reference parts and alternative options found for MCT6. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MCT6, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MCT6 QT Optoelectronics Check for Price Transistor Output Optocoupler, 2-Element, 2500V Isolation, DIP-8 MCT6 vs MCT6
Part Number Manufacturer Composite Price Description Compare
MCT6 Telefunken Microelectronics Gmbh Check for Price Transistor Output Optocoupler, 2-Element, 1500V Isolation, MCT6 vs MCT6

MCT6 Related Parts

MCT6 Frequently Asked Questions (FAQ)

  • The recommended storage temperature for MCT6 is -40°C to 125°C.

  • Yes, MCT6 is suitable for high-reliability applications due to its high-quality materials and manufacturing process.

  • To prevent ESD damage, handle MCT6 components in an ESD-protected environment, use ESD-protective packaging, and follow proper handling and storage procedures.

  • The maximum operating voltage for MCT6 is 50V, but it's recommended to operate within the specified voltage range for optimal performance and reliability.

  • Yes, MCT6 is suitable for high-frequency applications up to 1 GHz due to its low capacitance and high-frequency characteristics.
