MCT06030C8200FP500 Information

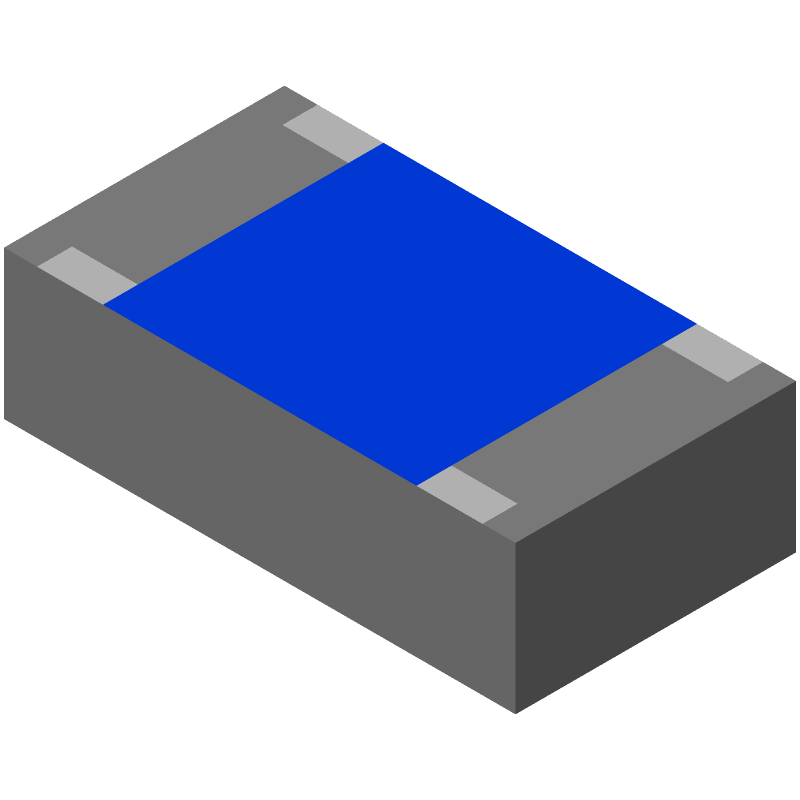

MCT06030C8200FP500 by Vishay Intertechnologies is a Thin Film Resistor.
Thin Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for MCT06030C8200FP500
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
84AH6418
|
Newark | Res, 820R, 1%, 0.125W, 0603, Thin Film Rohs Compliant: Yes |Vishay MCT06030C8200FP500 RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 4850 |
|
$0.0260 / $0.0400 | Buy Now |
|
DISTI #
64P5080
|
Newark | Mct 0603-50 1% P5 820R Rohs Compliant: Yes |Vishay MCT06030C8200FP500 RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0170 / $0.0300 | Buy Now |
|
DISTI #
MCT06030C8200FP500
|
Avnet Americas | MCT 0603-50 1% P5 820R - Tape and Reel (Alt: MCT06030C8200FP500) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 9 Weeks, 0 Days Container: Reel | 0 |
|
$0.0115 / $0.0125 | Buy Now |
|
DISTI #
594-MCT06030C8200FP5
|
Mouser Electronics | Thin Film Resistors - SMD .1W 820ohm 1% 0603 50ppm Auto RoHS: Compliant | 16583 |
|
$0.0120 / $0.1000 | Buy Now |
|
DISTI #
V79:2366_26232347
|
Arrow Electronics | Res Thin Film 0603 820 Ohm 1% 0.1W(1/10W) ±50ppm/°C Sulfur Resistant Pad SMD T/R Medical Min Qty: 1 Package Multiple: 1 Date Code: 1707 | Americas - 5 |
|
$0.0144 / $0.0150 | Buy Now |
|
DISTI #
MCT06030C8200FP500
|
TTI | Thin Film Resistors - SMD .1W 820ohm 1% 0603 50ppm Auto RoHS: Compliant pbFree: Pb-Free Min Qty: 5000 Package Multiple: 5000 Container: Reel |
Americas - 10000 In Stock |
|
$0.0120 / $0.0163 | Buy Now |
|
DISTI #
MCT06030C8200FP500
|
Avnet Abacus | MCT 060350 1 P5 820R (Alt: MCT06030C8200FP500) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 12 Weeks, 0 Days | Abacus - 0 |
|
Buy Now | |
|
|
LCSC | 125mW Thin Film Resistor 75V 50ppm/ 1% 820 0603 Chip Resistor - Surface Mount ROHS | 140 |
|
$0.0190 / $0.0365 | Buy Now |
|
|
New Advantage Corporation | PRECISION FLAT CHIP, REEL 7in., CASE 0603 RoHS: Compliant Min Qty: 1 Package Multiple: 5000 | 75000 |
|
$0.0100 | Buy Now |
Part Details for MCT06030C8200FP500
MCT06030C8200FP500 CAD Models
MCT06030C8200FP500 Part Data Attributes
|
|
MCT06030C8200FP500
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
MCT06030C8200FP500
Vishay Intertechnologies
Fixed Resistor, Thin Film, 0.1W, 820ohm, 75V, 1% +/-Tol, 50ppm/Cel, Surface Mount, 0603, CHIP
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 9 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | ANTI-SULFUR;RATED AC VOLTAGE:75V | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.45 mm | |
| Package Length | 1.55 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 0.85 mm | |
| Packing Method | TR, Paper, 7 Inch | |
| Rated Power Dissipation (P) | 0.1 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | CECC40401-801 | |
| Resistance | 820 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 0603 | |
| Surface Mount | YES | |
| Technology | THIN FILM | |
| Temperature Coefficient | 50 ppm/°C | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 75 V |
