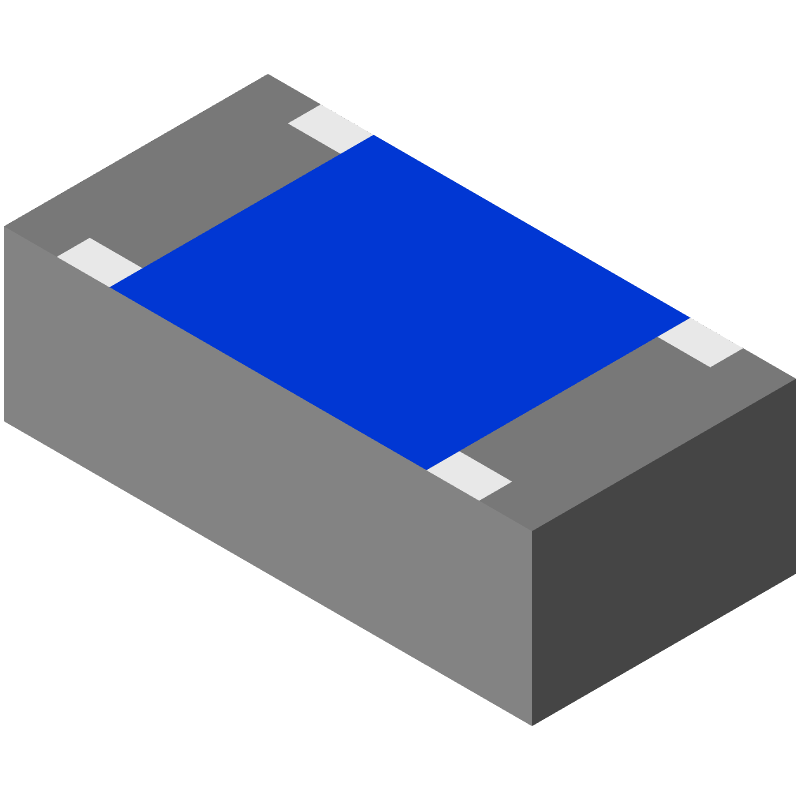

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MCS0402MD4991BE100 by Vishay Intertechnologies
Results Overview of MCS0402MD4991BE100 by Vishay Intertechnologies
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Renewable Energy
MCS0402MD4991BE100 Information
MCS0402MD4991BE100 by Vishay Intertechnologies is a Thin Film Resistor.
Thin Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for MCS0402MD4991BE100
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
65AC3519
|
Newark | Res, Aec-Q200, Thin Film, 4K99, 0402, Resistance:4.99Kohm, Resistance Tolerance:± 0.1%, Power Rating:62.5Mw, Resistor Case/Package:0402 [1005 Metric], Resistor Technology:Thin Film, Resistor Type:High Power, Sulfur Resistant Rohs Compliant: Yes |Vishay MCS0402MD4991BE100 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1008 |
|
$0.1790 | Buy Now |
|
DISTI #
61AC6086
|
Newark | Res, Aec-Q200, Thin Film, 4K99, 0402, Resistance:4.99Kohm, Resistance Tolerance:± 0.1%, Power Rating:62.5Mw, Resistor Case/Package:0402 [1005 Metric], Resistor Technology:Thin Film, Resistor Type:High Power, Sulfur Resistant Rohs Compliant: Yes |Vishay MCS0402MD4991BE100 RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 1 Container: Reel | 0 |
|
$0.1900 / $0.1990 | Buy Now |
|
DISTI #
MCS0402MD4991BE100
|
Avnet Americas | MCS 0402-25 0.1% AT E1 4K99 - Tape and Reel (Alt: MCS0402MD4991BE100) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 9 Weeks, 0 Days Container: Reel | 0 |
|
$0.1788 / $0.1936 | Buy Now |
|
DISTI #
65AC3519
|
Avnet Americas | MCS 0402-25 0.1% AT E1 4K99 - Product that comes on tape, but is not reeled (Alt: 65AC3519) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 31 Weeks, 4 Days Container: Ammo Pack | 0 |
|
$0.3010 / $0.6100 | Buy Now |
|
DISTI #
61AC6086
|
Avnet Americas | MCS 0402-25 0.1% AT E1 4K99 - Tape and Reel (Alt: 61AC6086) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 31 Weeks, 4 Days Container: Reel | 0 |
|
$0.1900 / $0.1990 | Buy Now |
|
DISTI #
594-MCS0402MD4991BE1
|
Mouser Electronics | Thin Film Resistors - SMD .063W 4.99Kohms 0.1% 0402 25ppm Auto RoHS: Compliant | 193 |
|
$0.1970 / $0.4500 | Buy Now |
|
DISTI #
V72:2272_09554005
|
Arrow Electronics | Res Thin Film 0402 4.99K Ohm 0.1% 0.063W(1/16W) ±25ppm/°C Sulfur Resistant Pad SMD T/R Medical Automotive AEC-Q200 Min Qty: 1 Package Multiple: 1 Lead time: 9 Weeks Date Code: 2307 Container: Cut Strips | Americas - 100 |
|
$0.2040 / $0.2455 | Buy Now |
|
DISTI #
MCS0402MD4991BE100
|
TTI | Thin Film Resistors - SMD .063W 4.99Kohms 0.1% 0402 25ppm Auto RoHS: Compliant pbFree: Pb-Free Min Qty: 1000 Package Multiple: 1000 Container: Reel | Americas - 0 |
|
$0.1850 / $0.1970 | Buy Now |
|
DISTI #
MCS0402MD4991BE100
|
Avnet Abacus | MCS 040225 01 AT E1 4K99 (Alt: MCS0402MD4991BE100) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 12 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for MCS0402MD4991BE100
MCS0402MD4991BE100 CAD Models
MCS0402MD4991BE100 Part Data Attributes
|
|
MCS0402MD4991BE100
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
MCS0402MD4991BE100
Vishay Intertechnologies
Fixed Resistor, Thin Film, 0.063W, 4990ohm, 50V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 0402, CHIP
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 9 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | ANTI-SULFUR, LASER TRIMMABLE, PRECISION, RATED AC VOLTAGE (V): 50, STANDARD: CECC40401-801 | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.32 mm | |
| Package Length | 1 mm | |
| Package Style | SMT | |
| Package Width | 0.5 mm | |
| Packing Method | TR, Paper, 7 Inch | |
| Rated Power Dissipation (P) | 0.063 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 4990 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 0402 | |
| Surface Mount | YES | |
| Technology | THIN FILM | |
| Temperature Coefficient | 25 ppm/°C | |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 0.1% | |
| Working Voltage | 50 V |
MCS0402MD4991BE100 Frequently Asked Questions (FAQ)
-
The recommended land pattern for the MCS0402MD4991BE100 is a rectangular pad with a size of 0.5 mm x 0.5 mm, with a non-solder mask defined (NSMD) pad shape.
-
The MCS0402MD4991BE100 is rated for operation up to 150°C, but it's recommended to derate the power rating at higher temperatures. Consult the datasheet for specific derating information.
-
Handle the component by the body, avoid touching the terminations, and use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD) damage.
-
The recommended soldering profile is a peak temperature of 260°C, with a dwell time of 10-30 seconds above 220°C. Consult the datasheet for a detailed soldering profile.
-
The MCS0402MD4991BE100 is rated for operation in humid environments, but it's recommended to follow the IPC-J-STD-020 standard for moisture sensitivity level (MSL) classification.
