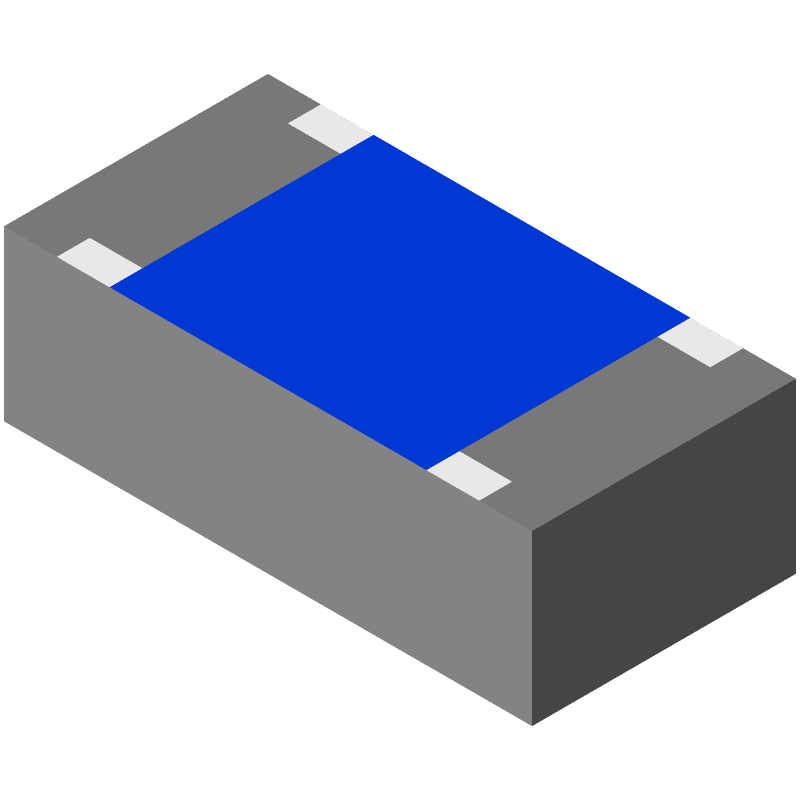

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MCS0402MC1000FE000 by Vishay Intertechnologies
Results Overview of MCS0402MC1000FE000 by Vishay Intertechnologies
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Renewable Energy
MCS0402MC1000FE000 Information
MCS0402MC1000FE000 by Vishay Intertechnologies is a Thin Film Resistor.
Thin Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for MCS0402MC1000FE000
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
84AH6322
|
Newark | Res, Aec-Q200, 100R, 1%, 0.1W, 0402 Rohs Compliant: Yes |Vishay MCS0402MC1000FE000 RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 7860 |
|
$0.0380 / $0.0670 | Buy Now |
|
DISTI #
MCS0402MC1000FE000
|
Avnet Americas | SMD Chip Resistor, 100 ohm, ? 1%, 100 mW, 0402 [1005 Metric], Thin Film, Sulfur Resistant - Tape and Reel (Alt: MCS0402MC1000FE000) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 9 Weeks, 0 Days Container: Reel | 0 |
|
$0.0238 / $0.0255 | Buy Now |
|
DISTI #
594-MCS0402MC1000FE0
|
Mouser Electronics | Thin Film Resistors - SMD .1W 100ohms 1% 0402 50ppm Auto RoHS: Compliant | 16129 |
|
$0.0250 / $0.1200 | Buy Now |
|
DISTI #
V72:2272_09554029
|
Arrow Electronics | Res Thin Film 0402 100 Ohm 1% 0.07W ±50ppm/°C Sulfur Resistant Pad SMD T/R Medical Automotive AEC-Q200 Min Qty: 1 Package Multiple: 1 Lead time: 9 Weeks Date Code: 2222 Container: Cut Strips | Americas - 61 |
|
$0.0259 / $0.0430 | Buy Now |
|
DISTI #
85555626
|
Verical | Res Thin Film 0402 100 Ohm 1% 0.07W ±50ppm/°C Sulfur Resistant Pad SMD T/R Medical Automotive AEC-Q200 Min Qty: 1185 Package Multiple: 1 Date Code: 2249 | Americas - 2695 |
|
$0.0311 | Buy Now |
|
DISTI #
MCS0402MC1000FE000
|
TTI | Thin Film Resistors - SMD .1W 100ohms 1% 0402 50ppm Auto RoHS: Compliant pbFree: Pb-Free Min Qty: 10000 Package Multiple: 10000 Container: Reel |
Americas - 20000 In Stock |
|
$0.0248 | Buy Now |
|
DISTI #
MCS0402MC1000FE000
|
IBS Electronics | RES THIN FILM 0402 100 OHM 1% 0.063W(1/16W) ±, 50PPM/C SULFUR RESISTANT MOLDED SMD PAPER T/R Min Qty: 10000 Package Multiple: 1 | 0 |
|
$0.0247 / $0.0261 | Buy Now |
|
DISTI #
SMC-MCS0402MC1000FE000
|
Sensible Micro Corporation | XRES 100ohm 1% 0402 RoHS: Compliant Min Qty: 25 Lead time: 0 Weeks, 1 Days Date Code: 1636 Container: Tape & Reel | 484 |
|
RFQ | |
|
DISTI #
MCS0402MC1000FE000
|
Avnet Abacus | SMD Chip Resistor 100 ohm 1 100 mW 0402 1005 Metric Thin Film Sulfur Resistant (Alt: MCS0402MC1000FE000) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 12 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for MCS0402MC1000FE000
MCS0402MC1000FE000 CAD Models
MCS0402MC1000FE000 Part Data Attributes
|
|
MCS0402MC1000FE000
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
MCS0402MC1000FE000
Vishay Intertechnologies
Fixed Resistor, Thin Film, 0.13W, 100ohm, 50V, 1% +/-Tol, 50ppm/Cel, Surface Mount, 0402, CHIP
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 9 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | ANTI-SULFUR, RATED AC VOLTAGE (V): 50 | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 175 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.32 mm | |
| Package Length | 1 mm | |
| Package Style | SMT | |
| Package Width | 0.5 mm | |
| Packing Method | TR, Paper, 7 Inch | |
| Rated Power Dissipation (P) | 0.13 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200; CECC40401-801 | |
| Resistance | 100 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 0402 | |
| Surface Mount | YES | |
| Technology | THIN FILM | |
| Temperature Coefficient | 50 ppm/°C | |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 50 V |
MCS0402MC1000FE000 Frequently Asked Questions (FAQ)
-
The recommended land pattern for the MCS0402MC1000FE000 is a rectangular pad with a size of 1.3 mm x 0.8 mm, with a non-solder mask defined (NSMD) pad shape.
-
Yes, the MCS0402MC1000FE000 is rated for operation up to 150°C, making it suitable for high-temperature applications. However, it's essential to ensure that the component is properly derated to prevent overheating.
-
To prevent damage, handle the MCS0402MC1000FE000 by the body, avoiding touching the terminations. Use anti-static wrist straps, mats, or other ESD protection methods to prevent electrostatic discharge damage.
-
The recommended soldering profile for the MCS0402MC1000FE000 is a peak temperature of 260°C, with a dwell time of 10-30 seconds above 220°C. Ensure that the component is properly aligned and secured during the soldering process.
-
Yes, the MCS0402MC1000FE000 is designed to withstand vibrations up to 10 G's, making it suitable for applications with moderate vibration levels. However, it's essential to ensure that the component is properly secured to the PCB to prevent mechanical stress.
