Resistors / Thin Film Resistors / MCS04020C1501FE000
Datasheets
MCS04020C1501FE000 by:

Fixed Resistor, Thin Film, 0.063W, 1500ohm, 50V, 1% +/-Tol, 50ppm/Cel, Surface Mount, 0402, CHIP

Part Details for MCS04020C1501FE000 by Vishay Intertechnologies

Results Overview of MCS04020C1501FE000 by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Internet of Things (IoT) Computing and Data Storage Aerospace and Defense Healthcare Telecommunications Automotive

MCS04020C1501FE000 Information

MCS04020C1501FE000 by Vishay Intertechnologies is a Thin Film Resistor.
Thin Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for MCS04020C1501FE000

Part # Distributor Description Stock Price Buy
DISTI # 84AH6325
Newark Res, 1K5, 1%, 0.1W, 0402, Thin Film Rohs Compliant: Yes |Vishay MCS04020C1501FE000 RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 1 Container: Cut Tape 38915
  • 10 $0.0400
  • 25 $0.0390
  • 50 $0.0370
  • 100 $0.0360
  • 250 $0.0320
  • 500 $0.0280
  • 1,000 $0.0260
$0.0260 / $0.0400 Buy Now
DISTI # MCS04020C1501FE000
Avnet Americas SMD Chip Resistor, 1.5 kOhm, ? 1%, 100 mW, 0402 [1005 Metric], Thin Film, Professional - Tape and Reel (Alt: MCS04020C1501FE000) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 9 Weeks, 0 Days Container: Reel 0
  • 10,000 $0.0125
  • 20,000 $0.0125
  • 40,000 $0.0124
  • 60,000 $0.0123
  • 80,000 $0.0123
$0.0123 / $0.0125 Buy Now
DISTI # 594-MCS04020C1501FE0
Mouser Electronics Thin Film Resistors - SMD .063W 1.5Kohms 1% 0402 50ppm Auto RoHS: Compliant 30627
  • 1 $0.1000
  • 10 $0.0260
  • 100 $0.0240
  • 500 $0.0230
  • 1,000 $0.0180
  • 10,000 $0.0140
  • 20,000 $0.0130
$0.0130 / $0.1000 Buy Now
DISTI # MCS04020C1501FE000
TTI Thin Film Resistors - SMD .063W 1.5Kohms 1% 0402 50ppm Auto RoHS: Compliant pbFree: Pb-Free Min Qty: 10000 Package Multiple: 10000 Container: Reel Americas - 0
  • 10,000 $0.0137
  • 20,000 $0.0132
  • 30,000 $0.0129
  • 50,000 $0.0127
  • 100,000 $0.0124
  • 250,000 $0.0122
  • 500,000 $0.0120
$0.0120 / $0.0137 Buy Now
DISTI # MCS04020C1501FE000
Avnet Abacus SMD Chip Resistor 15 kOhm 1 100 mW 0402 1005 Metric Thin Film Professional (Alt: MCS04020C1501FE000) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 12 Weeks, 0 Days Abacus - 40000
Buy Now
LCSC 100mW Thin Film Resistor 50V 50ppm/ 1% 1.5k 0402 Chip Resistor - Surface Mount ROHS 9350
  • 10 $0.0353
  • 100 $0.0279
  • 300 $0.0243
  • 1,000 $0.0215
  • 5,000 $0.0193
  • 10,000 $0.0182
$0.0182 / $0.0353 Buy Now
New Advantage Corporation RES SMD Prec 0402 1K50 1% 50PPM 0.1W T&R 12 NC 231227511502 RoHS: Compliant Min Qty: 1 Package Multiple: 10000 140000
  • 20,000 $0.0161
  • 140,000 $0.0149
$0.0149 / $0.0161 Buy Now
Vyrian Resistors 36298
RFQ

Part Details for MCS04020C1501FE000

MCS04020C1501FE000 CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

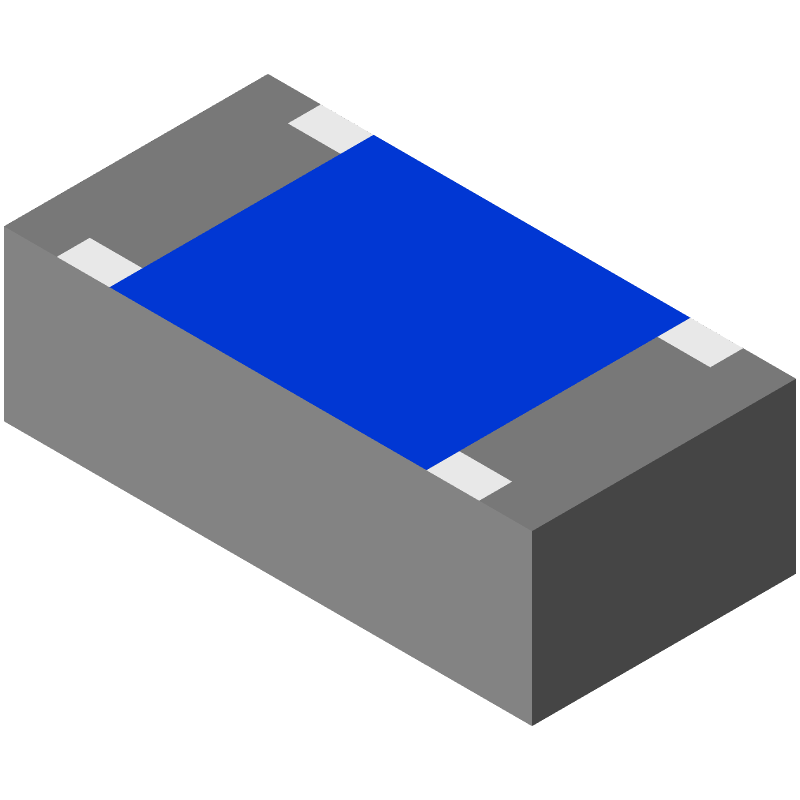

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MCS04020C1501FE000 Part Data Attributes

Parametric Data
MCS04020C1501FE000 Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
MCS04020C1501FE000 Vishay Intertechnologies Fixed Resistor, Thin Film, 0.063W, 1500ohm, 50V, 1% +/-Tol, 50ppm/Cel, Surface Mount, 0402, CHIP
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Package Description CHIP
Reach Compliance Code compliant
Factory Lead Time 9 Weeks
Samacsys Manufacturer Vishay
Additional Feature ANTI-SULFUR;RATED AC VOLTAGE:50V
Construction Rectangular
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Height 0.32 mm
Package Length 1 mm
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Package Width 0.5 mm
Packing Method TR, Paper, 7 Inch
Rated Power Dissipation (P) 0.063 W
Rated Temperature 70 °C
Reference Standard CECC40401-801
Resistance 1500 Ω
Resistor Type FIXED RESISTOR
Size Code 0402
Surface Mount YES
Technology THIN FILM
Temperature Coefficient 50 ppm/°C
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Tolerance 1%
Working Voltage 50 V

Alternate Parts for MCS04020C1501FE000

This table gives cross-reference parts and alternative options found for MCS04020C1501FE000. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MCS04020C1501FE000, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MCS0402HC1501FE1 Vishay Intertechnologies Check for Price Fixed Resistor, Thin Film, 0.063W, 1500ohm, 50V, 1% +/-Tol, 50ppm/Cel, Surface Mount, 0402, CHIP MCS04020C1501FE000 vs MCS0402HC1501FE1
239040771502 YAGEO Corporation Check for Price Fixed Resistor, Thin Film, 0.0625W, 1500ohm, 50V, 1% +/-Tol, 50ppm/Cel, Surface Mount, 0402, CHIP, ROHS COMPLIANT MCS04020C1501FE000 vs 239040771502
MCS04020C1501FE000 Vishay Beyschlag Check for Price RESISTOR, THIN FILM, 0.063 W, 1 %, 50 ppm, 1500 ohm, SURFACE MOUNT, 0402, CHIP, ROHS COMPLIANT MCS04020C1501FE000 vs MCS04020C1501FE000
MCS04020C1501FE500 Vishay Intertechnologies Check for Price Fixed Resistor, Thin Film, 0.063W, 1500ohm, 50V, 1% +/-Tol, 50ppm/Cel, Surface Mount, 0402, CHIP MCS04020C1501FE000 vs MCS04020C1501FE500
9T04021A1501FBPF7 YAGEO Corporation Check for Price Fixed Resistor, Thin Film, 0.0625W, 1500ohm, 50V, 1% +/-Tol, -50,50ppm/Cel, 0402, MCS04020C1501FE000 vs 9T04021A1501FBPF7

MCS04020C1501FE000 Related Parts

MCS04020C1501FE000 Frequently Asked Questions (FAQ)

  • The recommended land pattern for the MCS04020C1501FE000 can be found in the Vishay Intertechnologies' application note AN42172, which provides guidelines for PCB layout and land pattern design.

  • The MCS04020C1501FE000 has a thermal resistance of 2.5°C/W. To handle thermal management, ensure good airflow, use a heat sink if necessary, and follow proper PCB design guidelines to minimize thermal impedance.

  • The maximum operating temperature range for the MCS04020C1501FE000 is -55°C to 150°C, as specified in the datasheet.

  • Yes, the MCS04020C1501FE000 is a high-reliability device, suitable for use in aerospace, defense, and other high-reliability applications. It is manufactured and tested to meet the requirements of MIL-PRF-49470.

  • Follow the recommended soldering profile and guidelines provided in the datasheet, and ensure that the soldering process is done in a controlled environment to prevent damage to the device.
