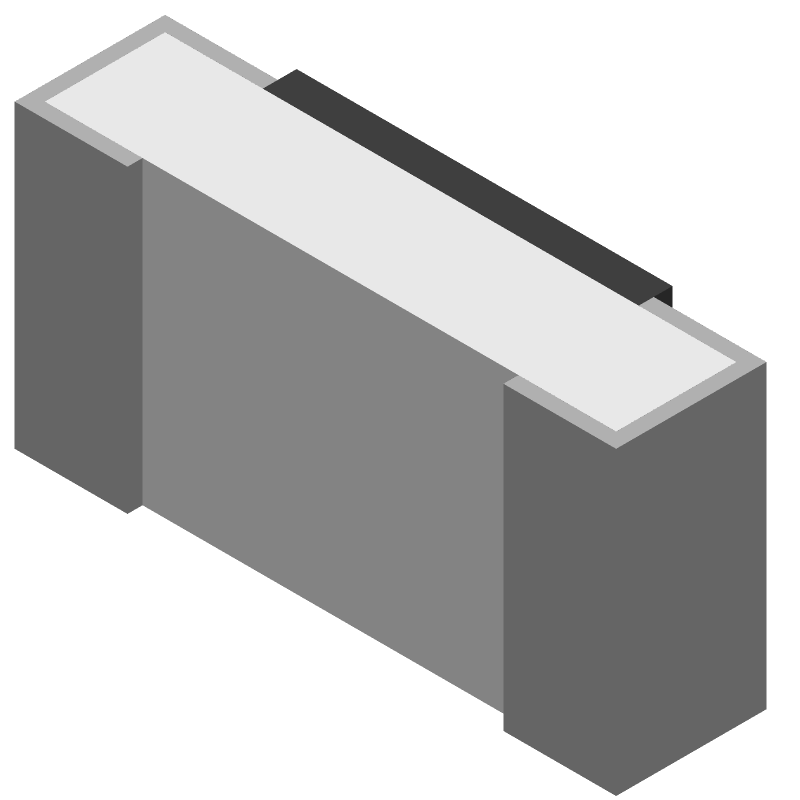

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MCR03EZPJ101 by ROHM Semiconductor
Results Overview of MCR03EZPJ101 by ROHM Semiconductor
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MCR03EZPJ101 Information
MCR03EZPJ101 by ROHM Semiconductor is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for MCR03EZPJ101
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
61140319
|
Verical | Res Thick Film 0603 100 Ohm 5% 0.1W(1/10W) ±200ppm/°C Pad SMD Automotive T/R Min Qty: 16667 Package Multiple: 1 Date Code: 2201 | Americas - 732101 |
|
$0.0039 / $0.0040 | Buy Now |
|
DISTI #
86362223
|
Verical | Res Thick Film 0603 100 Ohm 5% 0.1W(1/10W) ±200ppm/°C Pad SMD Automotive T/R Min Qty: 10870 Package Multiple: 1 Date Code: 2233 | Americas - 24920 |
|
$0.0038 / $0.0040 | Buy Now |
|
|
Bristol Electronics | 15275 |
|
RFQ | ||
|
|
Quest Components | RESISTOR, METAL GLAZE/THICK FILM, 0.1 W, 5 %, 200 PPM, 100 OHM, SURFACE MOUNT, 0603 | 761560 |
|
$0.0045 / $0.0450 | Buy Now |
|
|
Quest Components | RESISTOR, METAL GLAZE/THICK FILM, 0.1 W, 5 %, 200 PPM, 100 OHM, SURFACE MOUNT, 0603 | 3436 |
|
$0.6450 / $2.1500 | Buy Now |
|
DISTI #
SMC-MCR03EZPJ101
|
Sensible Micro Corporation | 100 Ohm 1/10W 5% 0603 RoHS: Compliant Min Qty: 25 Lead time: 0 Weeks, 1 Days Date Code: 2010+ Container: Tape & Reel | 55000 |
|
$0.0090 / $0.0097 | RFQ |
|
DISTI #
SMC-MCR03EZPJ101
|
Sensible Micro Corporation | Rohs(Ship Within 1Day) - D/C 2022 RoHS: Compliant Min Qty: 25 Lead time: 0 Weeks, 1 Days Date Code: 1019 Container: Tape & Reel | 812 |
|
$0.0090 / $0.0097 | RFQ |
|
DISTI #
MCR03EZPJ101
|
Avnet Abacus | SMD Chip Resistor 100 Ohm 5 100 mW 0603 1608 Metric Thick Film General Purpose (Alt: MCR03EZPJ101) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 112 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for MCR03EZPJ101
MCR03EZPJ101 CAD Models
MCR03EZPJ101 Part Data Attributes
|
|
MCR03EZPJ101
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
MCR03EZPJ101
ROHM Semiconductor
Fixed Resistor, Metal Glaze/thick Film, 0.1W, 100ohm, 50V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0603, CHIP
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ROHM CO LTD | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.45 mm | |
| Package Length | 1.6 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 0.8 mm | |
| Packing Method | TR, PAPER, 7 INCH | |
| Rated Power Dissipation (P) | 0.1 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200; IATF 16949 | |
| Resistance | 100 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 0603 | |
| Surface Mount | YES | |
| Technology | METAL GLAZE/THICK FILM | |
| Temperature Coefficient | 200 ppm/°C | |
| Terminal Finish | TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 5% | |
| Working Voltage | 50 V |
