MCP6543-I/MS by: Microchip Technology Inc

COMPARATOR, 7000 uV OFFSET-MAX, 4000 ns RESPONSE TIME, PDSO8, PLASTIC, MSOP-8

Part Details for MCP6543-I/MS by Microchip Technology Inc

Results Overview of MCP6543-I/MS by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Industrial Automation Healthcare Medical Imaging Automotive

MCP6543-I/MS Information

MCP6543-I/MS by Microchip Technology Inc is a Comparator.
Comparators are under the broader part category of Amplifier Circuits.

Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.

Price & Stock for MCP6543-I/MS

Part # Distributor Description Stock Price Buy
DISTI # 92C4252
Newark Ic, volt Comparator, single, cmos, tssop,8Pin, plastic Rohs Compliant: Yes |Microchip MCP6543-I/MS RoHS: Compliant Min Qty: 900 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 100 $0.4240
$0.4240 Buy Now
DISTI # MCP6543-I/MS-ND
DigiKey IC COMPARATOR 1 GEN PUR 8MSOP Min Qty: 1 Lead time: 52 Weeks Container: Tube 523
In Stock
  • 1 $0.5300
  • 25 $0.4400
  • 100 $0.4000
$0.4000 / $0.5300 Buy Now
DISTI # MCP6543-I/MS
Avnet Americas Comparator Single R-R I/O 5.5V 8-Pin MSOP Tube - Rail/Tube (Alt: MCP6543-I/MS) RoHS: Compliant Min Qty: 800 Package Multiple: 100 Lead time: 52 Weeks, 0 Days Container: Tube 0
  • 1 $0.5300
  • 25 $0.4400
  • 100 $0.4000
$0.4000 / $0.5300 Buy Now
DISTI # 579-MCP6543-I/MS
Mouser Electronics Analog Comparators Sgl 1.6V Psh/Pl w/CS RoHS: Compliant 196
  • 1 $0.5300
  • 25 $0.4400
  • 100 $0.4000
$0.4000 / $0.5300 Buy Now
DISTI # V99:2348_06453578
Arrow Electronics Comparator Single R-R I/O 5.5V Automotive AEC-Q100 8-Pin MSOP Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 52 Weeks Date Code: 1737 Americas - 164
  • 0 $0.4502
  • 1 $0.0857
$0.0857 / $0.4502 Buy Now
DISTI # MCP6543-I/MS
Microchip Technology Inc Single 1.6V Push/Pull Comparator w/ CS, I temp, MSOP, Projected EOL: 2034-05-16 COO: Thailand ECCN: EAR99 RoHS: Compliant Container: Tube 0

Alternates Available
  • 1 $0.5300
  • 25 $0.4400
  • 100 $0.4000
  • 5,000 $0.3900
$0.3900 / $0.5300 Buy Now
DISTI # 70569837
RS Single 1.6V Push/Pull Comparator w/ CS, I temp Min Qty: 800 Package Multiple: 1 Lead time: 52 Weeks, 0 Days Container: Bulk 0
  • 800 $0.8200
  • 8,000 $0.7800
  • 40,000 $0.7300
  • 80,000 $0.6900
$0.6900 / $0.8200 RFQ
Onlinecomponents.com Single Comparator with Chip Select - Push-Pull Output - 1.6V to 5.5V - 600nA/comparator - Rail to Rail Input - 8-lead MSOP - -40°C to +85°C RoHS: Compliant 0
  • 100 $0.4328
  • 500 $0.3973
  • 1,000 $0.3913
  • 2,500 $0.3766
  • 5,000 $0.3671
  • 7,500 $0.3616
  • 10,000 $0.3562
  • 15,000 $0.3508
$0.3508 / $0.4328 Buy Now
DISTI # MCP6543-I/MS
TME IC: comparator, Cmp: 1, 4us, 1.6÷5.5V, SMT, MSOP8, tube, Iio: 1pA Min Qty: 1 0
  • 1 $0.8160
  • 5 $0.6430
  • 25 $0.5680
  • 100 $0.5100
$0.5100 / $0.8160 RFQ
NAC Single 1.6V Push/Pull Comparator w/ CS, I temp - Package: 8 MSOP 3x3mm TUBE RoHS: Compliant Min Qty: 800 Package Multiple: 100 Container: Tube 0
  • 1 $0.5400
  • 100 $0.4900
  • 500 $0.4500
  • 1,000 $0.4400
$0.4400 / $0.5400 Buy Now
DISTI # MCP6543-I/MS
Avnet Silica Comparator Single RR IO 55V 8Pin MSOP Tube (Alt: MCP6543-I/MS) RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 38 Weeks, 0 Days Silica - 0
Buy Now
Master Electronics Single Comparator with Chip Select - Push-Pull Output - 1.6V to 5.5V - 600nA/comparator - Rail to Rail Input - 8-lead MSOP - -40°C to +85°C RoHS: Compliant 0
  • 100 $0.4328
  • 500 $0.3973
  • 1,000 $0.3913
  • 2,500 $0.3766
  • 5,000 $0.3671
  • 7,500 $0.3616
  • 10,000 $0.3562
  • 15,000 $0.3508
$0.3508 / $0.4328 Buy Now

Part Details for MCP6543-I/MS

MCP6543-I/MS CAD Models

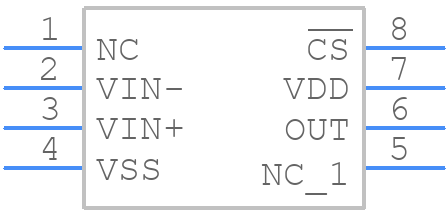

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MCP6543-I/MS Part Data Attributes

Parametric Data
MCP6543-I/MS Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
MCP6543-I/MS Microchip Technology Inc COMPARATOR, 7000 uV OFFSET-MAX, 4000 ns RESPONSE TIME, PDSO8, PLASTIC, MSOP-8
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Part Package Code MSOP
Package Description PLASTIC, MSOP-8
Pin Count 8
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.33.00.01
Factory Lead Time 52 Weeks
Samacsys Manufacturer Microchip
Amplifier Type COMPARATOR
Average Bias Current-Max (IIB) 0.0001 µA
Input Offset Voltage-Max 7000 µV
JESD-30 Code S-PDSO-G8
JESD-609 Code e3
Length 3 mm
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Output Type PUSH-PULL
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Equivalence Code TSSOP8,.19
Package Shape SQUARE
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Packing Method TUBE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Response Time-Nom 4000 ns
Seated Height-Max 1.1 mm
Supply Current-Max 0.001 mA
Supply Voltage Limit-Max 7 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 40
Width 3 mm
