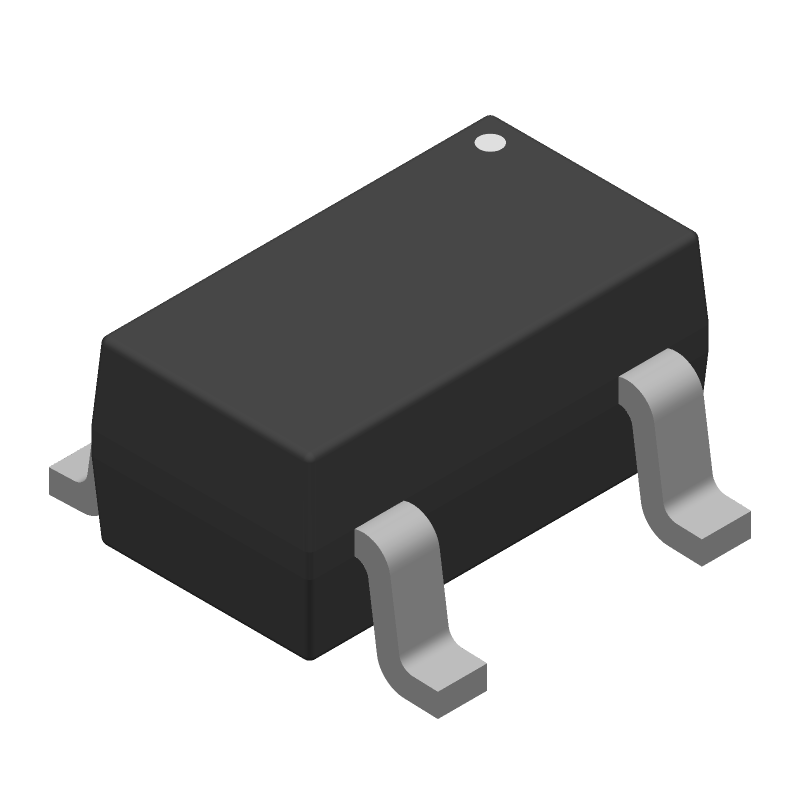

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MCP6411T-E/OT by Microchip Technology Inc
Results Overview of MCP6411T-E/OT by Microchip Technology Inc
- Distributor Offerings: (15 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
MCP6411T-E/OT Information
MCP6411T-E/OT by Microchip Technology Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for MCP6411T-E/OT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
23AC6819
|
Newark | Op-Amp, 1Mhz, 0.5V/Us, Sc-70-5, No. Of Channels:1Channels, Gain Bandwidth Product:1Mhz, Supply Voltage Range:1.7V To 5.5V, Ic Case/Package:Sot-23, No. Of Pins:5Pins, Amplifier Type:General Purpose, Input Offset Voltage:1Mv, Msl:- Rohs Compliant: Yes |Microchip MCP6411T-E/OT RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
$0.4200 | Buy Now |
|
DISTI #
MCP6411T-E/OTCT-ND
|
DigiKey | IC OPAMP GP 1 CIRCUIT SOT23-5 Min Qty: 1 Lead time: 7 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
3458 In Stock |
|
$0.4200 / $0.5500 | Buy Now |
|
DISTI #
MCP6411T-E/OT
|
Avnet Americas | Operational Amplifier, 1 Channel, 1 MHz, 500 mV/us, 1.7 V to 5.5 V, 5 Pins, SOT-23 - Tape and Reel (Alt: MCP6411T-E/OT) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 7 Weeks, 0 Days Container: Reel | 0 |
|
$0.4212 / $0.4500 | Buy Now |
|
DISTI #
579-MCP6411T-E/OT
|
Mouser Electronics | Operational Amplifiers - Op Amps Operational Amplifier, 1MHz with EMI Filter RoHS: Compliant | 22155 |
|
$0.4200 / $0.5500 | Buy Now |
|
DISTI #
MCP6411T-E/OT
|
Microchip Technology Inc | 1 MHz, R/R I/O Op-amps with EMI Filter, SOT-23, Projected EOL: 2044-06-01 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 7 Weeks, 0 Days Container: Reel |
12000 Alternates Available |
|
$0.4100 / $0.5500 | Buy Now |
|
|
Future Electronics | Operational Amplifier, 1MHz with EMI Filter RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 7 Weeks Container: Reel | 3000Reel |
|
$0.4600 / $0.4700 | Buy Now |
|
|
Onlinecomponents.com | Op Amp Single GP R-R I/O 5.5V 5-Pin SOT-23 T/R RoHS: Compliant |
6000 In Stock 12000 Factory Stock |
|
$0.3921 / $0.4068 | Buy Now |
|
DISTI #
70367299
|
Verical | Op Amp Single GP R-R I/O 5.5V 5-Pin SOT-23 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Date Code: 2335 | Americas - 6000 |
|
$0.5097 / $0.5288 | Buy Now |
|
|
Future Electronics | Operational Amplifier, 1MHz with EMI Filter Min Qty: 3000 Package Multiple: 3000 |
3000 null |
|
$0.4600 / $0.4700 | Buy Now |
|
|
NAC | Operational Amplifier, 1MHz with EMI Filter - Package: 5 SOT-23 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 | 0 |
|
$0.4500 / $0.5500 | Buy Now |
Part Details for MCP6411T-E/OT
MCP6411T-E/OT CAD Models
MCP6411T-E/OT Part Data Attributes
|
|
MCP6411T-E/OT
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
MCP6411T-E/OT
Microchip Technology Inc
OP-AMP
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Package Description | SOT-23, 5 PIN | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Factory Lead Time | 7 Weeks | |
| Date Of Intro | 2017-06-20 | |
| Samacsys Manufacturer | Microchip | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Common-mode Reject Ratio-Min | 75 dB | |
| Common-mode Reject Ratio-Nom | 90 dB | |
| Frequency Compensation | YES | |
| Input Offset Voltage-Max | 1000 µV | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e3 | |
| Length | 2.9 mm | |
| Low-Bias | YES | |
| Low-Offset | NO | |
| Micropower | NO | |
| Number of Functions | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSOP | |
| Package Equivalence Code | TSOP5/6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE | |
| Packing Method | TR | |
| Power | NO | |
| Programmable Power | NO | |
| Screening Level | TS 16949 | |
| Seated Height-Max | 1.45 mm | |
| Slew Rate-Nom | 0.5 V/us | |
| Supply Current-Max | 0.055 mA | |
| Supply Voltage Limit-Max | 6.5 V | |
| Supply Voltage-Nom (Vsup) | 3.5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Unity Gain BW-Nom | 1000 | |
| Voltage Gain-Min | 56234 | |
| Wideband | NO | |
| Width | 1.6 mm |
Alternate Parts for MCP6411T-E/OT
This table gives cross-reference parts and alternative options found for MCP6411T-E/OT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MCP6411T-E/OT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MCP6411T-E/LTY | Microchip Technology Inc | $0.4736 | OP-AMP | MCP6411T-E/OT vs MCP6411T-E/LTY |
MCP6411T-E/OT Frequently Asked Questions (FAQ)
-
The maximum power dissipation of the MCP6411T-E/OT is 670 mW, which is calculated based on the package thermal resistance and the maximum junction temperature.
-
To ensure stability, it's essential to follow proper PCB layout practices, use a low-ESR capacitor for decoupling, and consider adding a compensation capacitor in the feedback loop if necessary.
-
The recommended input impedance for the MCP6411T-E/OT is greater than 1 kΩ to ensure optimal performance and minimize input bias current effects.
-
While the MCP6411T-E/OT can be used as a comparator, it's not the most suitable application due to its relatively slow slew rate and limited output current. A dedicated comparator IC would be a better choice.
-
To ensure ESD protection, use a TVS diode or a dedicated ESD protection device at the input pins, and follow proper PCB layout practices to minimize the risk of ESD damage.
