MCP6274T-E/ST by: Microchip Technology Inc

QUAD OP-AMP, 5000 uV OFFSET-MAX, 2 MHz BAND WIDTH, PDSO14, 4.40 MM, PLASTIC, TSSOP-14

Part Details for MCP6274T-E/ST by Microchip Technology Inc

Results Overview of MCP6274T-E/ST by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Internet of Things (IoT) Computing and Data Storage Aerospace and Defense Healthcare Telecommunications Automotive

MCP6274T-E/ST Information

MCP6274T-E/ST by Microchip Technology Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.

Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.

Price & Stock for MCP6274T-E/ST

Part # Distributor Description Stock Price Buy
DISTI # 68H9390
Newark Ic, operational Amplifier, quad, cmos, tssop,14Pin, plastic Rohs Compliant: Yes |Microchip MCP6274T-E/ST RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 100 $1.2400
$1.2400 Buy Now
DISTI # MCP6274T-E/STCT-ND
DigiKey IC OPAMP GP 4 CIRCUIT 14TSSOP Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 9324
In Stock
  • 1 $1.5900
  • 25 $1.3000
  • 100 $1.2000
  • 2,500 $1.2000
$1.2000 / $1.5900 Buy Now
DISTI # MCP6274T-E/ST
Avnet Americas OP Amp Quad GP R-R I/O 5.5V 14-Pin TSSOP T/R - Tape and Reel (Alt: MCP6274T-E/ST) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 6 Weeks, 0 Days Container: Reel 0
  • 2,500 $1.3125
  • 5,000 $1.2913
  • 10,000 $1.2704
  • 15,000 $1.2494
  • 20,000 $1.2285
$1.2285 / $1.3125 Buy Now
DISTI # 579-MCP6274T-E/ST
Mouser Electronics Operational Amplifiers - Op Amps Quad 2MHz RoHS: Compliant 1573
  • 1 $1.5900
  • 25 $1.3000
  • 100 $1.2000
  • 2,500 $1.2000
  • 5,000 $1.1900
$1.1900 / $1.5900 Buy Now
DISTI # MCP6274T-E/ST
Microchip Technology Inc 2.0-5.5V 2MHZ, IQ/BW selectable, Quad, Low Power OP Amp, TSSOP, Projected EOL: 2034-07-01 COO: Malaysia, Philippines, Thailand ECCN: EAR99 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Reel 2350

Alternates Available
  • 1 $1.5900
  • 25 $1.3000
  • 100 $1.2000
  • 5,000 $1.1900
$1.1900 / $1.5900 Buy Now
DISTI # 70570109
RS IC OPAMP GP 2MHZ RRO 14TSSOP Min Qty: 2500 Package Multiple: 1 Lead time: 52 Weeks, 0 Days Container: Bulk 0
  • 2,500 $2.1700
  • 25,000 $2.0600
  • 125,000 $1.9500
  • 250,000 $1.8400
$1.8400 / $2.1700 RFQ
Onlinecomponents.com   RoHS: Compliant 0
  • 625 $2.2100
  • 1,250 $1.3600
  • 1,875 $1.0800
  • 2,500 $1.0600
$1.0600 / $2.2100 Buy Now
Bristol Electronics   1219
RFQ
Quest Components   975
  • 1 $3.8080
  • 342 $1.5708
  • 638 $1.4280
$1.4280 / $3.8080 Buy Now
NAC Quad 2 MHz OP, E temp - Package: 14 TSSOP 4.4mm T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 0
  • 1 $1.6200
  • 100 $1.4600
  • 500 $1.3500
  • 1,000 $1.3100
$1.3100 / $1.6200 Buy Now
DISTI # MCP6274T-E/ST
Avnet Silica OP Amp Quad GP RR IO 55V 14Pin TSSOP TR (Alt: MCP6274T-E/ST) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 8 Weeks, 0 Days Silica - 0
Buy Now
DISTI # MCP6274T-E/ST
EBV Elektronik OP Amp Quad GP RR IO 55V 14Pin TSSOP TR (Alt: MCP6274T-E/ST) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 7 Weeks, 0 Days EBV - 0
Buy Now
Master Electronics   RoHS: Compliant 0
  • 625 $2.2100
  • 1,250 $1.3600
  • 1,875 $1.0800
  • 2,500 $1.0600
$1.0600 / $2.2100 Buy Now

Part Details for MCP6274T-E/ST

MCP6274T-E/ST CAD Models

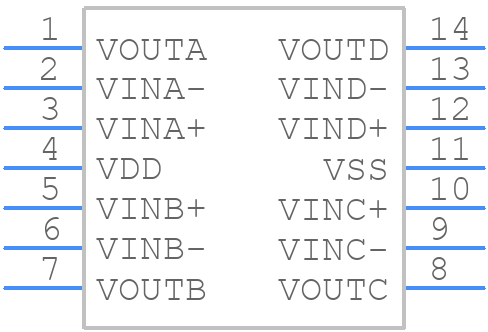

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

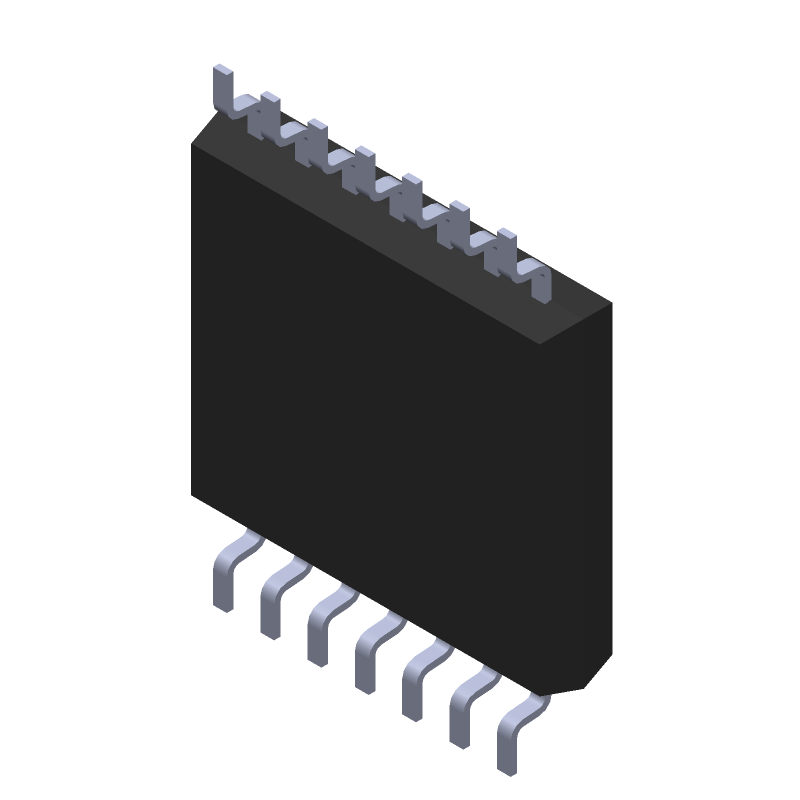

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MCP6274T-E/ST Part Data Attributes

Parametric Data
MCP6274T-E/ST Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
MCP6274T-E/ST Microchip Technology Inc QUAD OP-AMP, 5000 uV OFFSET-MAX, 2 MHz BAND WIDTH, PDSO14, 4.40 MM, PLASTIC, TSSOP-14
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Part Package Code TSSOP
Pin Count 14
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.33.00.01
Factory Lead Time 6 Weeks
Samacsys Manufacturer Microchip
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 0.005 µA
Common-mode Reject Ratio-Min 65 dB
Common-mode Reject Ratio-Nom 85 dB
Frequency Compensation YES
Input Offset Voltage-Max 5000 µV
JESD-30 Code R-PDSO-G14
JESD-609 Code e3
Length 5 mm
Low-Bias YES
Low-Offset NO
Micropower YES
Moisture Sensitivity Level 1
Number of Functions 4
Number of Terminals 14
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Equivalence Code TSSOP14,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Packing Method TAPE AND REEL
Peak Reflow Temperature (Cel) 260
Power NO
Programmable Power NO
Qualification Status Not Qualified
Seated Height-Max 1.2 mm
Slew Rate-Nom 0.9 V/us
Supply Current-Max 0.96 mA
Supply Voltage Limit-Max 7 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount YES
Technology CMOS
Temperature Grade AUTOMOTIVE
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 40
Unity Gain BW-Nom 2000
Voltage Gain-Min 31620
Wideband NO
Width 4.4 mm

Alternate Parts for MCP6274T-E/ST

This table gives cross-reference parts and alternative options found for MCP6274T-E/ST. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MCP6274T-E/ST, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MCP6274-E/ST Microchip Technology Inc $1.2860 QUAD OP-AMP, 5000 uV OFFSET-MAX, 2 MHz BAND WIDTH, PDSO14, 4.40 MM, PLASTIC, TSSOP-14 MCP6274T-E/ST vs MCP6274-E/ST
MCP6274-E/P Microchip Technology Inc $1.4157 QUAD OP-AMP, 5000 uV OFFSET-MAX, 2 MHz BAND WIDTH, PDIP14, 0.300 INCH, PLASTIC, DIP-14 MCP6274T-E/ST vs MCP6274-E/P
NJU7044D Nisshinbo Micro Devices Check for Price Operational Amplifier, 4 Func, 10000uV Offset-Max, CMOS, PDIP14, MCP6274T-E/ST vs NJU7044D
NE5234D,512 NXP Semiconductors Check for Price IC QUAD OP-AMP, 5000 uV OFFSET-MAX, 2.5 MHz BAND WIDTH, PDSO14, 3.90 MM, PLASTIC, MS-012, SOT108-1, SOP-14, Operational Amplifier MCP6274T-E/ST vs NE5234D,512
NE5234D,518 NXP Semiconductors Check for Price IC QUAD OP-AMP, 5000 uV OFFSET-MAX, 2.5 MHz BAND WIDTH, PDSO14, 3.90 MM, PLASTIC, MS-012, SOT108-1, SOP-14, Operational Amplifier MCP6274T-E/ST vs NE5234D,518
NE5234D NXP Semiconductors Check for Price IC QUAD OP-AMP, 5000 uV OFFSET-MAX, 2.5 MHz BAND WIDTH, PDSO14, 3.90 MM, PLASTIC, MS-012, SOT108-1, SOP-14, Operational Amplifier MCP6274T-E/ST vs NE5234D
SA5234D/01,512 NXP Semiconductors Check for Price IC QUAD OP-AMP, 5000 uV OFFSET-MAX, 2.5 MHz BAND WIDTH, PDSO14, 3.90 MM, PLASTIC, SO-14, Operational Amplifier MCP6274T-E/ST vs SA5234D/01,512
SA5234D,518 NXP Semiconductors Check for Price IC QUAD OP-AMP, 5000 uV OFFSET-MAX, 2.5 MHz BAND WIDTH, PDSO14, 3.90 MM, PLASTIC, MS-012, SOT108-1, SOP-14, Operational Amplifier MCP6274T-E/ST vs SA5234D,518
NE5234D/01,518 NXP Semiconductors Check for Price IC QUAD OP-AMP, 5000 uV OFFSET-MAX, 2.5 MHz BAND WIDTH, PDSO14, 3.90 MM, PLASTIC, SO-14, Operational Amplifier MCP6274T-E/ST vs NE5234D/01,518
SA5234D NXP Semiconductors Check for Price IC QUAD OP-AMP, 5000 uV OFFSET-MAX, 2.5 MHz BAND WIDTH, PDSO14, 3.90 MM, PLASTIC, MS-012, SOT108-1, SOP-14, Operational Amplifier MCP6274T-E/ST vs SA5234D

MCP6274T-E/ST Frequently Asked Questions (FAQ)

  • The maximum power dissipation of the MCP6274T-E/ST is 670 mW, which is calculated based on the package thermal resistance and the maximum junction temperature.

  • To ensure stability in high-gain configurations, it's essential to follow proper PCB layout practices, use adequate decoupling capacitors, and consider adding a compensation capacitor between the output and the inverting input.

  • The recommended input voltage range for the MCP6274T-E/ST is between 100 mV and VDD - 1.5 V to ensure proper operation and to prevent latch-up.

  • While the MCP6274T-E/ST can be used as a comparator, it's not recommended due to its op-amp architecture and limited slew rate. Microchip offers dedicated comparator products, such as the MCP6541, which are better suited for comparator applications.

  • The MCP6274T-E/ST has built-in ESD protection, but it's still essential to follow proper ESD handling practices during assembly and testing. Additionally, consider adding external ESD protection devices, such as TVS diodes, to ensure robust ESD protection.
