MCP6274-E/SL by: Microchip Technology Inc

QUAD OP-AMP, 5000 uV OFFSET-MAX, 2 MHz BAND WIDTH, PDSO14, 3.90 MM, PLASTIC, SOIC-14

Part Details for MCP6274-E/SL by Microchip Technology Inc

Results Overview of MCP6274-E/SL by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Internet of Things (IoT) Computing and Data Storage Aerospace and Defense Healthcare Telecommunications Automotive

MCP6274-E/SL Information

MCP6274-E/SL by Microchip Technology Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.

Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.

Price & Stock for MCP6274-E/SL

Part # Distributor Description Stock Price Buy
DISTI # 58M8968
Newark Operational Amplifier, Quad, 2 Mhz, 4, 0.9 V/ S, 2V To 5.5V, Soic, 14 Rohs Compliant: Yes |Microchip MCP6274-E/SL RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 0
  • 1 $1.5900
  • 10 $1.4500
  • 25 $1.3000
  • 50 $1.2700
  • 114 $1.2300
  • 513 $1.2000
$1.2000 / $1.5900 Buy Now
DISTI # MCP6274-E/SL-ND
DigiKey IC OPAMP GP 4 CIRCUIT 14SOIC Min Qty: 1 Lead time: 4 Weeks Container: Tube 736
In Stock
  • 1 $1.5900
  • 25 $1.3000
  • 100 $1.2000
$1.2000 / $1.5900 Buy Now
DISTI # MCP6274-E/SL
Avnet Americas OP Amp Quad GP R-R I/O 5.5V 14-Pin SOIC N Tube - Rail/Tube (Alt: MCP6274-E/SL) RoHS: Compliant Min Qty: 285 Package Multiple: 57 Lead time: 4 Weeks, 0 Days Container: Tube 0
  • 1 $1.5900
  • 25 $1.3000
  • 100 $1.2000
$1.2000 / $1.5900 Buy Now
DISTI # 579-MCP6274-E/SL
Mouser Electronics Operational Amplifiers - Op Amps Quad 2MHz RoHS: Compliant 382
  • 1 $1.5900
  • 25 $1.3000
  • 114 $1.2000
$1.2000 / $1.5900 Buy Now
DISTI # MCP6274-E/SL
Microchip Technology Inc 2.0-5.5V 2MHZ, IQ/BW selectable, Quad, Low Power OP Amp, SOIC, Projected EOL: 2034-07-01 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Tube 18183

Alternates Available
  • 1 $1.5900
  • 25 $1.3000
  • 100 $1.2000
  • 5,000 $1.1900
$1.1900 / $1.5900 Buy Now
DISTI # 70046477
RS Microchip MCP6274-E/SL, Quad Op Amp,2MHz CMOS, Rail to Rail,3V,5V,14-Pin SOIC Min Qty: 342 Package Multiple: 1 Lead time: 29 Weeks, 0 Days Container: Bulk 0
  • 342 $1.5300
$1.5300 RFQ
Onlinecomponents.com Op Amp Quad GP R-R I/O 5.5V Automotive 14-Pin SOIC N Tube RoHS: Compliant 456 In Stock
18525 Factory Stock
  • 57 $1.2700
  • 285 $1.1600
  • 513 $1.1500
  • 1,026 $1.0900
  • 2,508 $1.0500
  • 5,016 $1.0300
  • 7,524 $1.0200
$1.0200 / $1.2700 Buy Now
DISTI # 69168129
Verical Op Amp Quad GP R-R I/O 6V 14-Pin SOIC N Tube Automotive AEC-Q100 RoHS: Compliant Min Qty: 57 Package Multiple: 57 Date Code: 2315 Americas - 456
  • 57 $1.6510
  • 285 $1.5080
  • 513 $1.4950
  • 1,026 $1.4170
  • 2,508 $1.3650
$1.3650 / $1.6510 Buy Now
DISTI # MCP6274-E/SL
TME IC: operational amplifier, 2MHz, Ch: 4, SO14, 2÷5.5VDC, IB: 1pA Min Qty: 1 0
  • 1 $1.4900
  • 10 $1.4200
  • 25 $1.3400
  • 100 $1.2200
$1.2200 / $1.4900 RFQ
NAC Quad 2 MHz OP, E temp - Package: 14 SOIC .150in TUBE RoHS: Compliant Min Qty: 285 Package Multiple: 57 Container: Tube 0
  • 1 $1.6200
  • 100 $1.4600
  • 500 $1.3500
  • 1,000 $1.3100
$1.3100 / $1.6200 Buy Now
DISTI # MCP6274-E/SL
Avnet Silica OP Amp Quad GP RR IO 55V 14Pin SOIC N Tube (Alt: MCP6274-E/SL) RoHS: Compliant Min Qty: 57 Package Multiple: 57 Lead time: 6 Weeks, 0 Days Silica - 0
Buy Now
DISTI # MCP6274-E/SL
EBV Elektronik OP Amp Quad GP RR IO 55V 14Pin SOIC N Tube (Alt: MCP6274-E/SL) RoHS: Compliant Min Qty: 57 Package Multiple: 57 Lead time: 5 Weeks, 0 Days EBV - 0
Buy Now
LCSC QUAD 1pA 900V/ms 2MHz Rail-to-rail input Rail-to-rail output 3mV SOIC-14 Operational Amplifier ROHS 57
  • 1 $1.8369
  • 10 $1.7946
  • 30 $1.7659
  • 100 $1.7373
$1.7373 / $1.8369 Buy Now
Master Electronics Op Amp Quad GP R-R I/O 5.5V Automotive 14-Pin SOIC N Tube RoHS: Compliant 456 In Stock
18525 Factory Stock
  • 57 $1.2700
  • 285 $1.1600
  • 513 $1.1500
  • 1,026 $1.0900
  • 2,508 $1.0500
  • 5,016 $1.0300
  • 7,524 $1.0200
$1.0200 / $1.2700 Buy Now

Part Details for MCP6274-E/SL

MCP6274-E/SL CAD Models

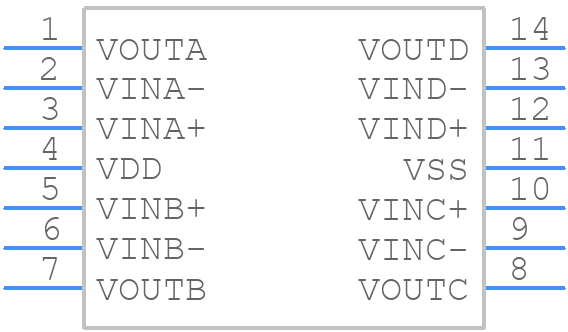

  • Part Symbol

    Part Symbol

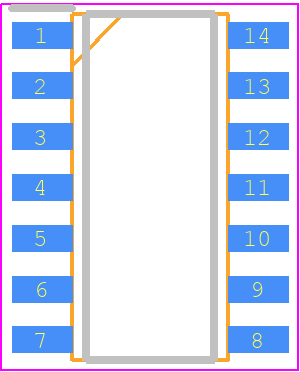

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MCP6274-E/SL Part Data Attributes

Parametric Data
MCP6274-E/SL Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
MCP6274-E/SL Microchip Technology Inc QUAD OP-AMP, 5000 uV OFFSET-MAX, 2 MHz BAND WIDTH, PDSO14, 3.90 MM, PLASTIC, SOIC-14
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Part Package Code SOIC
Pin Count 14
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.33.00.01
Factory Lead Time 4 Weeks
Samacsys Manufacturer Microchip
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 0.005 µA
Common-mode Reject Ratio-Min 65 dB
Common-mode Reject Ratio-Nom 85 dB
Frequency Compensation YES
Input Offset Voltage-Max 5000 µV
JESD-30 Code R-PDSO-G14
JESD-609 Code e3
Length 8.65 mm
Low-Bias YES
Low-Offset NO
Micropower YES
Moisture Sensitivity Level 1
Number of Functions 4
Number of Terminals 14
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP14,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Packing Method TUBE
Peak Reflow Temperature (Cel) 260
Power NO
Programmable Power NO
Qualification Status Not Qualified
Seated Height-Max 1.75 mm
Slew Rate-Nom 0.9 V/us
Supply Current-Max 0.96 mA
Supply Voltage Limit-Max 7 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount YES
Technology CMOS
Temperature Grade AUTOMOTIVE
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 40
Unity Gain BW-Nom 2000
Voltage Gain-Min 31620
Wideband NO
Width 3.9 mm
