MCP6231-E/SN Information

MCP6231-E/SN by Microchip Technology Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.

Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.

Price & Stock for MCP6231-E/SN

Part # Distributor Description Stock Price Buy
DISTI # 88H9909
Newark Ic, operational Amplifier, single, cmos, sop,8Pin, plastic Rohs Compliant: Yes |Microchip MCP6231-E/SN RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 229
  • 1 $0.0870
  • 10 $0.0870
  • 25 $0.0870
  • 50 $0.0870
  • 100 $0.0870
  • 500 $0.0870
$0.0870 Buy Now
DISTI # MCP6231-E/SN-ND
DigiKey IC OPAMP GP 1 CIRCUIT 8SOIC Min Qty: 1 Lead time: 7 Weeks Container: Tube 111
In Stock
  • 1 $0.4200
  • 25 $0.3400
  • 100 $0.3200
$0.3200 / $0.4200 Buy Now
DISTI # MCP6231-E/SN
Avnet Americas OP Amp Single GP R-R I/O 6V 8-Pin SOIC N Tube - Rail/Tube (Alt: MCP6231-E/SN) RoHS: Compliant Min Qty: 1000 Package Multiple: 100 Lead time: 7 Weeks, 0 Days Container: Tube 0
  • 1,000 $0.3375
  • 1,200 $0.3321
  • 2,200 $0.3267
  • 5,000 $0.3213
  • 10,000 $0.3159
$0.3159 / $0.3375 Buy Now
DISTI # 88H9909
Avnet Americas OP Amp Single GP R-R I/O 6V 8-Pin SOIC N Tube - Bulk (Alt: 88H9909) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 5 Weeks, 4 Days Container: Bulk 0
  • 1 $0.3330
$0.3330 Buy Now
DISTI # 579-MCP6231-E/SN
Mouser Electronics Operational Amplifiers - Op Amps Single 1.8V 200KHz RoHS: Compliant 979
  • 1 $0.4200
  • 25 $0.3400
  • 100 $0.3200
$0.3200 / $0.4200 Buy Now
DISTI # MCP6231-E/SN
Microchip Technology Inc 1.8V, 200kHz single low-cost, CMOS Op Amplifier on 120K Analog ROM process., SOIC, Projected EOL: 2034-07-06 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 7 Weeks, 0 Days Container: Tube 55

Alternates Available
  • 1 $0.4200
  • 25 $0.3400
  • 100 $0.3200
$0.3200 / $0.4200 Buy Now
DISTI # 70048228
RS IC, Op Amp, Operating Voltage, 1.8 - 6.0V, Outputs,1,GBWP,300kHz, SOIC-8 Min Qty: 1200 Package Multiple: 1 Lead time: 52 Weeks, 0 Days Container: Bulk 0
  • 1,200 $0.5600
  • 12,000 $0.5300
  • 60,000 $0.5000
  • 120,000 $0.4800
$0.4800 / $0.5600 RFQ
Onlinecomponents.com Op Amp - 300kHz GBP - 20uA - 1.8 to 6.0 VDC - Rail to Rail Output - -40°C to 125°C - 8-lead SOIC RoHS: Compliant 25900 Factory Stock
  • 100 $0.3284
  • 500 $0.3014
  • 1,000 $0.2968
  • 2,500 $0.2857
  • 5,000 $0.2785
  • 7,500 $0.2743
  • 10,000 $0.2702
  • 15,000 $0.2661
$0.2661 / $0.3284 Buy Now
DISTI # 87365541
Verical Op Amp Single GP R-R I/O 6V Automotive AEC-Q100 8-Pin SOIC N Tube RoHS: Compliant Min Qty: 163 Package Multiple: 1 Americas - 630
  • 163 $0.4298
$0.4298 Buy Now
DISTI # MCP6231-E/SN
TME IC: operational amplifier, 300kHz, Ch: 1, SO8, 1.8÷6VDC, IB: 1pA Min Qty: 3 630
  • 3 $0.3900
  • 10 $0.3690
  • 25 $0.3430
  • 100 $0.3060
$0.3060 / $0.3900 Buy Now
DISTI # MCP6231-E/SN
IBS Electronics MCP6231 SERIES 6 V 300 KHZ RAIL-TO-RAIL I/O OPERATIONAL AMPLIFIER - SOIC-8 Min Qty: 1200 Package Multiple: 1 0
  • 500 $0.4225
  • 1,200 $0.4290
  • 2,000 $0.4095
  • 5,000 $0.4030
  • 12,500 $0.3900
$0.3900 / $0.4290 Buy Now
NAC Single 1.8V, 300 kHz OP, E Temp - Package: 8 SOIC 3.90mm(.150in) TUBE RoHS: Compliant Min Qty: 1000 Package Multiple: 100 Container: Tube 0
  • 1 $0.4200
  • 100 $0.3800
  • 500 $0.3500
  • 1,000 $0.3400
$0.3400 / $0.4200 Buy Now
DISTI # MCP6231-E/SN
Avnet Silica OP Amp Single GP RR IO 6V 8Pin SOIC N Tube (Alt: MCP6231-E/SN) RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 9 Weeks, 0 Days Silica - 0
Buy Now
Component Electronics, Inc IN STOCK SHIP TODAY 100
  • 1 $3.8500
  • 100 $2.8800
  • 1,000 $2.5000
$2.5000 / $3.8500 Buy Now
Cytech Systems Limited IC OPAMP GP 1 CIRCUIT 8SOIC 200
RFQ
DISTI # MCP6231-E/SN
EBV Elektronik OP Amp Single GP RR IO 6V 8Pin SOIC N Tube (Alt: MCP6231-E/SN) RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 8 Weeks, 0 Days EBV - 0
Buy Now
Master Electronics Op Amp - 300kHz GBP - 20uA - 1.8 to 6.0 VDC - Rail to Rail Output - -40°C to 125°C - 8-lead SOIC RoHS: Compliant 25900 Factory Stock
  • 100 $0.3284
  • 500 $0.3014
  • 1,000 $0.2968
  • 2,500 $0.2857
  • 5,000 $0.2785
  • 7,500 $0.2743
  • 10,000 $0.2702
  • 15,000 $0.2661
$0.2661 / $0.3284 Buy Now

Part Details for MCP6231-E/SN

MCP6231-E/SN CAD Models

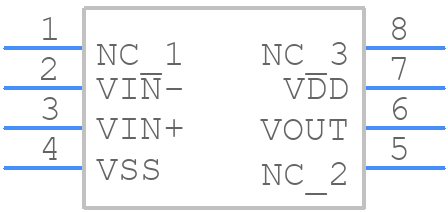

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MCP6231-E/SN Part Data Attributes

Parametric Data
MCP6231-E/SN Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
MCP6231-E/SN Microchip Technology Inc OP-AMP, 7000 uV OFFSET-MAX, 0.3 MHz BAND WIDTH, PDSO8, 3.90 MM, PLASTIC, SOIC-8
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Part Package Code SOIC
Pin Count 8
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.33.00.01
Factory Lead Time 5 Weeks, 4 Days
Samacsys Manufacturer Microchip
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 0.0011 µA
Common-mode Reject Ratio-Min 61 dB
Common-mode Reject Ratio-Nom 75 dB
Frequency Compensation YES
Input Offset Voltage-Max 7000 µV
JESD-30 Code R-PDSO-G8
JESD-609 Code e3
Length 4.9 mm
Low-Bias YES
Low-Offset NO
Micropower YES
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 8
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Packing Method TUBE
Peak Reflow Temperature (Cel) 260
Power NO
Programmable Power NO
Qualification Status Not Qualified
Seated Height-Max 1.75 mm
Slew Rate-Nom 0.15 V/us
Supply Current-Max 0.03 mA
Supply Voltage Limit-Max 7 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount YES
Technology CMOS
Temperature Grade AUTOMOTIVE
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Unity Gain BW-Nom 300
Voltage Gain-Min 31620
Wideband NO
Width 3.9 mm

Alternate Parts for MCP6231-E/SN

This table gives cross-reference parts and alternative options found for MCP6231-E/SN. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MCP6231-E/SN, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MCP6231RT-E/OT Microchip Technology Inc $0.2824 OP-AMP, 7000 uV OFFSET-MAX, 0.3 MHz BAND WIDTH, PDSO5, PLASTIC, SOT-23, 5 PIN MCP6231-E/SN vs MCP6231RT-E/OT
MCP6231-E/MC Microchip Technology Inc $0.3535 OP-AMP, 7000 uV OFFSET-MAX, 0.3 MHz BAND WIDTH, PDSO8, 2 X 3 MM, 0.90 MM HEIGHT, PLASTIC, DFN-8 MCP6231-E/SN vs MCP6231-E/MC
MCP6231-E/P Microchip Technology Inc $0.3820 OP-AMP, 7000 uV OFFSET-MAX, 0.3 MHz BAND WIDTH, PDIP8, 0.300 INCH, LEAD FREE, PLASTIC, DIP-8 MCP6231-E/SN vs MCP6231-E/P
TLV2381ID Texas Instruments $1.1556 Single, 16-V, 160-kHz, RRIO operational amplifier 8-SOIC -40 to 125 MCP6231-E/SN vs TLV2381ID
MCP6231T-E/SN Microchip Technology Inc $50.4056 OP-AMP, 7000 uV OFFSET-MAX, 0.3 MHz BAND WIDTH, PDSO8, 3.90 MM, PLASTIC, SOIC-8 MCP6231-E/SN vs MCP6231T-E/SN
MIC861BC5TR Micrel Inc Check for Price Operational Amplifier, 1 Func, 10000uV Offset-Max, CMOS, PDSO5, SC-70, 5 PIN MCP6231-E/SN vs MIC861BC5TR
TLV2381IDBVTG4 Texas Instruments Check for Price 10-uA/Channel, 160kHz, RRIO Op Amp 5-SOT-23 -40 to 125 MCP6231-E/SN vs TLV2381IDBVTG4
TLV2381IDR Texas Instruments Check for Price Single, 16-V, 160-kHz, RRIO operational amplifier 8-SOIC -40 to 125 MCP6231-E/SN vs TLV2381IDR
MCP6231UT-E/MC Microchip Technology Inc Check for Price Operational Amplifier MCP6231-E/SN vs MCP6231UT-E/MC
TLV2381IDBVR Texas Instruments Check for Price Single, 16-V, 160-kHz, RRIO operational amplifier 5-SOT-23 -40 to 125 MCP6231-E/SN vs TLV2381IDBVR

MCP6231-E/SN Frequently Asked Questions (FAQ)

  • The maximum power dissipation of the MCP6231-E/SN is 670 mW, which is calculated based on the package thermal resistance and the maximum junction temperature.

  • To ensure stability in a unity-gain configuration, it's recommended to add a capacitor (typically 10-100 pF) between the output and the inverting input to compensate for the op-amp's internal capacitance.

  • To minimize noise and EMI, it's recommended to keep the input and output traces short and away from each other, use a ground plane, and decouple the power supply with a 0.1 uF capacitor.

  • While the MCP6231-E/SN can be used as a comparator, it's not recommended due to its relatively slow slew rate and limited bandwidth. A dedicated comparator IC would be a better choice for most applications.

  • The MCP6231-E/SN has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures when handling the device, such as using an ESD wrist strap or mat.
