Amplifier Circuits / Operational Amplifiers / MCP6032-E/SN
Datasheets
MCP6032-E/SN by: Microchip Technology Inc

DUAL OP-AMP, 150 uV OFFSET-MAX, 10 MHz BAND WIDTH, PDSO8, 3.90 MM, PLASTIC, SOIC-8

Part Details for MCP6032-E/SN by Microchip Technology Inc

Results Overview of MCP6032-E/SN by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Healthcare

MCP6032-E/SN Information

MCP6032-E/SN by Microchip Technology Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.

Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.

Price & Stock for MCP6032-E/SN

Part # Distributor Description Stock Price Buy
DISTI # 58M8933
Newark Op-Amp, 10Khz, -40 To 125Deg C, Soic, No. Of Channels:2Channels, Gain Bandwidth Product:10Khz, Supply Voltage Range:1.8V To 5.5V, Ic Case/Package:Soic, No. Of Pins:8Pins, Amplifier Type:General Purpose, Input Offset Voltage:150Μv Rohs Compliant: Yes |Microchip MCP6032-E/SN RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 3556
  • 1 $1.2600
  • 10 $1.1700
  • 25 $1.0800
  • 50 $1.0400
  • 100 $1.0000
$1.0000 / $1.2600 Buy Now
DISTI # MCP6032-E/SN-ND
DigiKey IC OPAMP GP 2 CIRCUIT 8SOIC Min Qty: 1 Lead time: 6 Weeks Container: Tube 7876
In Stock
  • 1 $1.3000
  • 25 $1.0800
  • 100 $1.0000
$1.0000 / $1.3000 Buy Now
DISTI # MCP6032-E/SN
Avnet Americas OP Amp Dual GP R-R I/O 5.5V 8-Pin SOIC N Tube - Rail/Tube (Alt: MCP6032-E/SN) RoHS: Compliant Min Qty: 300 Package Multiple: 100 Lead time: 6 Weeks, 0 Days Container: Tube 0
  • 1 $1.3000
  • 25 $1.0800
  • 100 $1.0000
$1.0000 / $1.3000 Buy Now
DISTI # 579-MCP6032-E/SN
Mouser Electronics Precision Amplifiers Dual 1.8V 14kHz Op Amp E temp RoHS: Compliant 11112
  • 1 $1.2600
  • 25 $1.0800
  • 100 $0.9960
  • 300 $0.9910
  • 500 $0.9850
  • 1,000 $0.9750
  • 5,000 $0.9350
$0.9350 / $1.2600 Buy Now
DISTI # E54:1762_00053552
Arrow Electronics Op Amp Dual Precision Amplifier R-R I/O 5.5V Automotive AEC-Q100 8-Pin SOIC N Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Date Code: 2309 Europe - 68
  • 1 $1.2937
$1.2937 Buy Now
DISTI # MCP6032-E/SN
Microchip Technology Inc Dual 1.8V 10kHz Op Amp, E temp, SOIC, Projected EOL: 2034-03-21 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Tube 75

Alternates Available
  • 1 $1.3000
  • 25 $1.0800
  • 100 $1.0000
  • 5,000 $0.9900
$0.9900 / $1.3000 Buy Now
DISTI # 70046396
RS Microchip MCP6032-E/SN, Dual Op Amp,0.01MHz CMOS, Rail to Rail,3V,5V,8-Pin SOIC Min Qty: 400 Package Multiple: 1 Lead time: 41 Weeks, 0 Days Container: Bulk 0
  • 400 $1.1500
$1.1500 RFQ
Onlinecomponents.com Dual Op Amp - High Precision - 0.9uA - 1.8 to 5.5 VDC - 10KHz GBP - -40°C to 125°C - 8-lead SOIC RoHS: Compliant 900 In Stock
  • 100 $0.9980
  • 300 $0.9600
  • 500 $0.9450
  • 1,000 $0.9140
  • 2,500 $0.8720
  • 5,000 $0.8590
  • 7,500 $0.8460
$0.8460 / $0.9980 Buy Now
DISTI # 69201029
Verical Op Amp Dual Precision Amplifier R-R I/O 5.5V Automotive AEC-Q100 8-Pin SOIC N Tube RoHS: Compliant Min Qty: 100 Package Multiple: 100 Date Code: 2324 Americas - 900
  • 100 $1.2974
  • 300 $1.2480
  • 500 $1.2285
  • 1,000 $1.1882
  • 2,500 $1.1336
$1.1336 / $1.2974 Buy Now
DISTI # 24109419
Verical Op Amp Dual Precision Amplifier R-R I/O 5.5V Automotive AEC-Q100 8-Pin SOIC N Tube RoHS: Compliant Min Qty: 5 Package Multiple: 1 Americas - 65
  • 5 $1.2937
$1.2937 Buy Now
Bristol Electronics   Min Qty: 3 28
  • 3 $2.2500
  • 10 $1.6875
$1.6875 / $2.2500 Buy Now
Quest Components DUAL OP-AMP, 150 uV OFFSET-MAX, 10 MHz BAND WIDTH, PDSO8 22
  • 1 $3.0000
  • 3 $2.2500
  • 12 $1.8750
$1.8750 / $3.0000 Buy Now
DISTI # MCP6032-E/SN
TME IC: operational amplifier, 10kHz, Ch: 2, SO8, 1.8÷5.5VDC, IB: 1pA Min Qty: 1 0
  • 1 $1.2500
  • 5 $1.2000
  • 25 $1.1400
  • 100 $1.0100
$1.0100 / $1.2500 RFQ
DISTI # MCP6032-E/SN
IBS Electronics OP AMP DUAL PRECISION AMPLIFIER R-R I/O 5.5V AUTOMOTIVE 8-PIN SOIC N TUBE Min Qty: 100 Package Multiple: 1 900
  • 100 $1.2974
  • 300 $1.2480
  • 500 $1.2285
  • 1,000 $1.1882
  • 2,500 $1.1336
  • 5,000 $1.1167
  • 7,500 $1.0998
$1.0998 / $1.2974 Buy Now
NAC Dual 1.8V 10kHz Op Amp, E temp - Package: 8 SOIC 3.90mm(.150in) TUBE RoHS: Compliant Min Qty: 300 Package Multiple: 100 Container: Tube 0
  • 1 $1.3400
  • 100 $1.2100
  • 500 $1.1200
  • 1,000 $1.0900
$1.0900 / $1.3400 Buy Now
DISTI # MCP6032-E/SN
Avnet Silica OP Amp Dual GP RR IO 55V 8Pin SOIC N Tube (Alt: MCP6032-E/SN) RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 8 Weeks, 0 Days Silica - 0
Buy Now
DISTI # MCP6032-E/SN
EBV Elektronik OP Amp Dual GP RR IO 55V 8Pin SOIC N Tube (Alt: MCP6032-E/SN) RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 7 Weeks, 0 Days EBV - 0
Buy Now
LCSC Dual 100pA 4V/us 150uV SOIC-8 Operational Amplifier ROHS 85
  • 1 $2.9420
  • 10 $2.5799
  • 30 $2.3536
  • 100 $2.0881
  • 500 $1.9840
  • 1,000 $1.9372
$1.9372 / $2.9420 Buy Now
Master Electronics Dual Op Amp - High Precision - 0.9uA - 1.8 to 5.5 VDC - 10KHz GBP - -40°C to 125°C - 8-lead SOIC RoHS: Compliant 900 In Stock
  • 100 $0.9980
  • 300 $0.9600
  • 500 $0.9450
  • 1,000 $0.9140
  • 2,500 $0.8720
  • 5,000 $0.8590
  • 7,500 $0.8460
$0.8460 / $0.9980 Buy Now
Win Source Electronics IC OPAMP GP 10KHZ RRO 8SOIC 98250
  • 50 $1.2405
  • 115 $1.0187
  • 180 $0.9864
  • 245 $0.9552
  • 315 $0.9228
  • 420 $0.8270
$0.8270 / $1.2405 Buy Now

Part Details for MCP6032-E/SN

MCP6032-E/SN CAD Models

  • Part Symbol

    Part Symbol

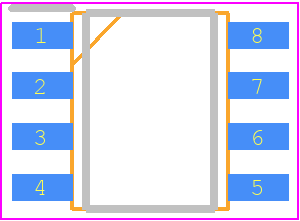

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MCP6032-E/SN Part Data Attributes

Parametric Data
MCP6032-E/SN Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
MCP6032-E/SN Microchip Technology Inc DUAL OP-AMP, 150 uV OFFSET-MAX, 10 MHz BAND WIDTH, PDSO8, 3.90 MM, PLASTIC, SOIC-8
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Part Package Code SOIC
Package Description 3.90 MM, PLASTIC, SOIC-8
Pin Count 8
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.33.00.01
Factory Lead Time 6 Weeks
Samacsys Manufacturer Microchip
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 0.005 µA
Bias Current-Max (IIB) @25C 0.0001 µA
Common-mode Reject Ratio-Min 72 dB
Common-mode Reject Ratio-Nom 93 dB
Frequency Compensation YES
Input Offset Voltage-Max 150 µV
JESD-30 Code R-PDSO-G8
JESD-609 Code e3
Length 4.9 mm
Low-Bias YES
Low-Offset YES
Micropower YES
Moisture Sensitivity Level 1
Number of Functions 2
Number of Terminals 8
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Packing Method TUBE
Peak Reflow Temperature (Cel) 260
Power NO
Programmable Power NO
Qualification Status Not Qualified
Seated Height-Max 1.75 mm
Slew Rate-Nom 4000 V/us
Supply Current-Max 0.0027 mA
Supply Voltage Limit-Max 7 V
Supply Voltage-Nom (Vsup) 1.8 V
Surface Mount YES
Technology CMOS
Temperature Grade AUTOMOTIVE
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Unity Gain BW-Nom 10000
Voltage Gain-Min 56200
Wideband NO
Width 3.9 mm

Alternate Parts for MCP6032-E/SN

This table gives cross-reference parts and alternative options found for MCP6032-E/SN. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MCP6032-E/SN, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MCP6032/SN Microchip Technology Inc Check for Price IC,OP-AMP,DUAL,CMOS,SOP,8PIN,PLASTIC MCP6032-E/SN vs MCP6032/SN
MCP6032T/SN Microchip Technology Inc Check for Price IC,OP-AMP,DUAL,CMOS,SOP,8PIN,PLASTIC MCP6032-E/SN vs MCP6032T/SN
Part Number Manufacturer Composite Price Description Compare
MCP6402T-H/SN Microchip Technology Inc $0.6325 DUAL OP-AMP, 4500 uV OFFSET-MAX, 1 MHz BAND WIDTH, PDSO8, 3.90 MM, LEAD FREE, PLASTIC, SOIC-8 MCP6032-E/SN vs MCP6402T-H/SN
MCP6407T-H/SN Microchip Technology Inc $0.7735 DUAL OP-AMP, 4500 uV OFFSET-MAX, 1 MHz BAND WIDTH, PDSO8, 3.90 MM, LEAD FREE, PLASTIC, SOIC-8 MCP6032-E/SN vs MCP6407T-H/SN
MCP6032T-E/SN Microchip Technology Inc $1.1396 DUAL OP-AMP, 150 uV OFFSET-MAX, 10 MHz BAND WIDTH, PDSO8, 3.90 MM, PLASTIC, SOIC-8 MCP6032-E/SN vs MCP6032T-E/SN
MCP6032-E/SL Microchip Technology Inc Check for Price DUAL OP-AMP, 150 uV OFFSET-MAX, 0.01 MHz BAND WIDTH, PDSO14, 3.90 MM, PLASTIC, SOIC-14 MCP6032-E/SN vs MCP6032-E/SL
MCP6407-H/SNVAO Microchip Technology Inc Check for Price Operational Amplifier, 2 Func, 4500uV Offset-Max, CMOS, PDSO8 MCP6032-E/SN vs MCP6407-H/SNVAO
MCP6033-E/MS Microchip Technology Inc Check for Price OP-AMP, 150 uV OFFSET-MAX, 10 MHz BAND WIDTH, PDSO8, PLASTIC, MSOP-8 MCP6032-E/SN vs MCP6033-E/MS
MCP6033-E/SN Microchip Technology Inc Check for Price OP-AMP, 150 uV OFFSET-MAX, 10 MHz BAND WIDTH, PDSO8, 3.90 MM, PLASTIC, SOIC-8 MCP6032-E/SN vs MCP6033-E/SN
MCP6032T-E/MSVAO Microchip Technology Inc Check for Price Operational Amplifier, 2 Func, 150000uV Offset-Max, CMOS, PDSO8 MCP6032-E/SN vs MCP6032T-E/MSVAO
MCP6032-E/MSVAO Microchip Technology Inc Check for Price Operational Amplifier, 2 Func, 150000uV Offset-Max, CMOS, PDSO8 MCP6032-E/SN vs MCP6032-E/MSVAO
MCP6033T-E/SN Microchip Technology Inc Check for Price OP-AMP, 150 uV OFFSET-MAX, 10 MHz BAND WIDTH, PDSO8, 3.90 MM, PLASTIC, SOIC-8 MCP6032-E/SN vs MCP6033T-E/SN

MCP6032-E/SN Related Parts

MCP6032-E/SN Frequently Asked Questions (FAQ)

  • The maximum power dissipation of the MCP6032-E/SN is 670 mW, which is calculated based on the package thermal resistance and the maximum junction temperature.

  • To ensure stability in a unity-gain buffer configuration, add a capacitor (typically 10-100 pF) between the output and the inverting input to compensate for the op-amp's internal capacitance and prevent oscillations.

  • To minimize noise and EMI, use a star-ground configuration, keep the input and output traces short and away from each other, and use a ground plane to shield the op-amp and its surrounding components.

  • The MCP6032-E/SN is rated for operation up to 125°C, but its performance may degrade at high temperatures. Ensure that the device is properly heat-sinked and follow the recommended thermal management guidelines.

  • The input bias current of the MCP6032-E/SN is typically 1.5 nA. To minimize its effect, use high-impedance input sources, and consider adding a voltage follower or a buffer stage to reduce the input impedance.
