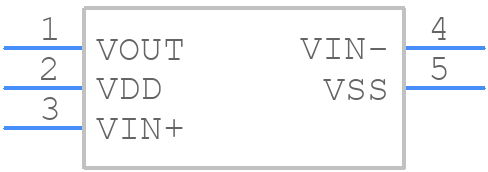

Part Symbol
-
Footprint
-

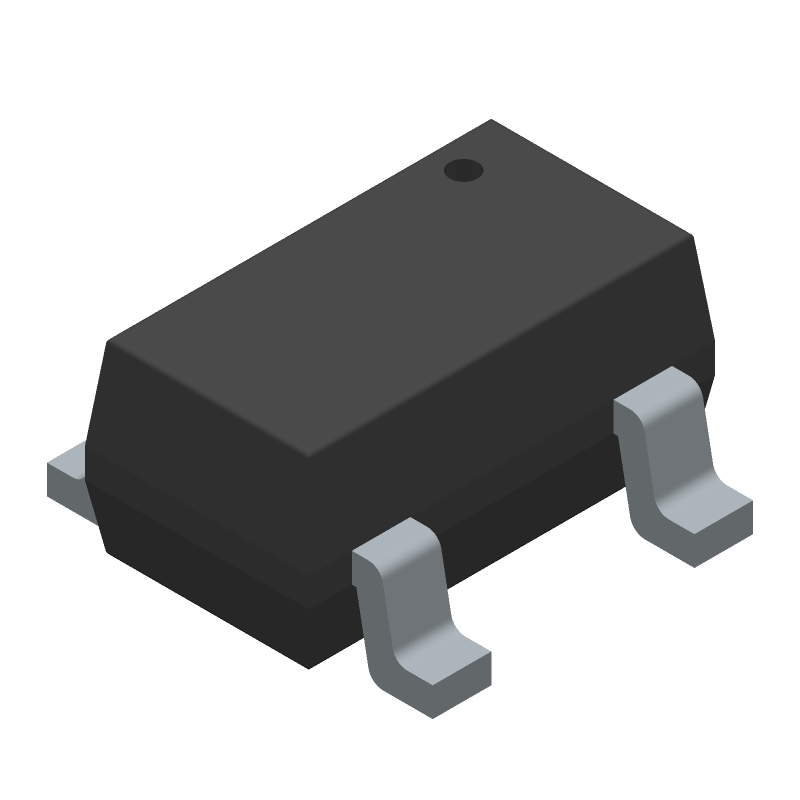

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MCP6021RT-E/OT by Microchip Technology Inc
Results Overview of MCP6021RT-E/OT by Microchip Technology Inc
- Distributor Offerings: (18 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
MCP6021RT-E/OT Information
MCP6021RT-E/OT by Microchip Technology Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for MCP6021RT-E/OT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
91R1258
|
Newark | Operational Amplifier, Single, 10 Mhz, 1, 7 V/ S, 2.5V To 5.5V, Sot-23, 5 Rohs Compliant: Yes |Microchip MCP6021RT-E/OT RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 386 |
|
$1.0200 / $1.3500 | Buy Now |
|
DISTI #
69K0142
|
Newark | Op Amp, 10 Mhz, 7 V/Us, 250 Uv, 5-Sot-23, Full Reel, No. Of Channels:1Channels, Gain Bandwidth Product:10Mhz, Supply Voltage Range:2.5V To 5.5V, Ic Case/Package:Sot-23, No. Of Pins:5Pins, Amplifier Type:Low Noise, Product Range:- Rohs Compliant: Yes |Microchip MCP6021RT-E/OT RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$1.0200 | Buy Now |
|
DISTI #
MCP6021RT-E/OTCT-ND
|
DigiKey | IC OPAMP GP 1 CIRCUIT SOT23-5 Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
12770 In Stock |
|
$1.0200 / $1.3500 | Buy Now |
|
DISTI #
MCP6021RT-E/OT
|
Avnet Americas | Operational Amplifier, 1 Channel, 10 MHz, 7 V/us, 2.5 V to 5.5 V, 5 Pins, SOT-23 - Tape and Reel (Alt: MCP6021RT-E/OT) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 6 Weeks, 0 Days Container: Reel | 0 |
|
$1.0413 / $1.1125 | Buy Now |
|
DISTI #
579-MCP6021RT-E/OT
|
Mouser Electronics | Operational Amplifiers - Op Amps Single 2.5V 10 MHz OP E temp RoHS: Compliant | 2825 |
|
$1.0200 / $1.3500 | Buy Now |
|
DISTI #
V72:2272_06447041
|
Arrow Electronics | Op Amp Single GP R-R I/O 5.5V 5-Pin SOT-23 T/R Automotive AEC-Q100 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Date Code: 2222 Container: Cut Strips | Americas - 4224 |
|
$0.4388 / $1.1447 | Buy Now |
|
DISTI #
70414853
|
RS | Microchip MCP6021RT-E/OT Op Amp, 10MHz Rail-Rail, 2.5 to 5.5 V, 5-Pin SOT-23 Min Qty: 3000 Package Multiple: 1 Lead time: 52 Weeks, 0 Days Container: Bulk | 0 |
|
$1.6000 / $1.8900 | RFQ |
|
|
Onlinecomponents.com | Op Amp Single GP R-R I/O 5.5V Automotive 5-Pin SOT-23 T/R RoHS: Compliant |
3500 In Stock |
|
$0.8700 / $0.9860 | Buy Now |
|
DISTI #
64038106
|
Verical | Op Amp Single GP R-R I/O 5.5V 5-Pin SOT-23 T/R Automotive AEC-Q100 RoHS: Compliant Min Qty: 250 Package Multiple: 250 Date Code: 2236 | Americas - 3500 |
|
$1.1479 / $1.2818 | Buy Now |
|
DISTI #
77265769
|
Verical | Op Amp Single GP R-R I/O 5.5V 5-Pin SOT-23 T/R Automotive AEC-Q100 RoHS: Compliant Min Qty: 31 Package Multiple: 1 Date Code: 2347 | Americas - 2348 |
|
$0.9210 / $1.0200 | Buy Now |
Part Details for MCP6021RT-E/OT
MCP6021RT-E/OT CAD Models
MCP6021RT-E/OT Part Data Attributes
|
|
MCP6021RT-E/OT
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
MCP6021RT-E/OT
Microchip Technology Inc
OP-AMP, 250 uV OFFSET-MAX, 10 MHz BAND WIDTH, PDSO5, PLASTIC, SC-74A, SOT-23, 5 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Part Package Code | SOT-23 | |
| Pin Count | 5 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Factory Lead Time | 6 Weeks | |
| Samacsys Manufacturer | Microchip | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.005 µA | |
| Common-mode Reject Ratio-Min | 74 dB | |
| Common-mode Reject Ratio-Nom | 90 dB | |
| Frequency Compensation | YES | |
| Input Offset Voltage-Max | 2500 µV | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e3 | |
| Length | 2.95 mm | |
| Low-Bias | YES | |
| Low-Offset | NO | |
| Micropower | NO | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Equivalence Code | TSOP5/6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | NO | |
| Programmable Power | NO | |
| Qualification Status | Not Qualified | |
| Screening Level | TS 16949 | |
| Seated Height-Max | 1.45 mm | |
| Slew Rate-Nom | 7 V/us | |
| Supply Current-Max | 1.35 mA | |
| Supply Voltage Limit-Max | 7 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Unity Gain BW-Nom | 10000 | |
| Voltage Gain-Min | 31620 | |
| Wideband | NO | |
| Width | 1.63 mm |
Alternate Parts for MCP6021RT-E/OT
This table gives cross-reference parts and alternative options found for MCP6021RT-E/OT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MCP6021RT-E/OT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MCP6023-E/ST | Microchip Technology Inc | $0.9295 | OP-AMP, 250 uV OFFSET-MAX, 10 MHz BAND WIDTH, PDSO8, 4.40 MM, PLASTIC, MO-153, TSSOP-8 | MCP6021RT-E/OT vs MCP6023-E/ST |
| MCP6021-I/P | Microchip Technology Inc | $1.2620 | OP-AMP, 500 uV OFFSET-MAX, 10 MHz BAND WIDTH, PDIP8, 0.300 INCH, LEAD FREE, PLASTIC, MS-001, DIP-8 | MCP6021RT-E/OT vs MCP6021-I/P |
| MCP6021R-E/OT | Microchip Technology Inc | Check for Price | OP-AMP, 250 uV OFFSET-MAX, 10 MHz BAND WIDTH, PDSO5, PLASTIC, SC-74A, SOT-23, 5 PIN | MCP6021RT-E/OT vs MCP6021R-E/OT |
| MCP6023T-I/SL | Microchip Technology Inc | Check for Price | Operational Amplifier | MCP6021RT-E/OT vs MCP6023T-I/SL |
| MCP6023T-I/P | Microchip Technology Inc | Check for Price | OP-AMP, 500 uV OFFSET-MAX, 10 MHz BAND WIDTH, PDIP8, 0.300 INCH, PLASTIC, DIP-8 | MCP6021RT-E/OT vs MCP6023T-I/P |
| MCP6021-I/SL | Microchip Technology Inc | Check for Price | Operational Amplifier | MCP6021RT-E/OT vs MCP6021-I/SL |
| MCP6021-E/SN/VAO | Microchip Technology Inc | Check for Price | Operational Amplifier, 1 Func, 4500uV Offset-Max, CMOS, PDSO8 | MCP6021RT-E/OT vs MCP6021-E/SN/VAO |
| MCP6021R-I/SN | Microchip Technology Inc | Check for Price | Operational Amplifier | MCP6021RT-E/OT vs MCP6021R-I/SN |
| MCP6021T-E/SN | Microchip Technology Inc | Check for Price | OP-AMP, 250 uV OFFSET-MAX, 10 MHz BAND WIDTH, PDSO8, 0.150 INCH, LEAD FREE, PLASTIC, MS-012, SOIC-8 | MCP6021RT-E/OT vs MCP6021T-E/SN |
| MCP6023-I/SN | Microchip Technology Inc | Check for Price | OP-AMP, 500 uV OFFSET-MAX, 10 MHz BAND WIDTH, PDSO8, 0.150 INCH, LEAD FREE, PLASTIC, MS-012, SOIC-8 | MCP6021RT-E/OT vs MCP6023-I/SN |
MCP6021RT-E/OT Frequently Asked Questions (FAQ)
-
The maximum power dissipation of the MCP6021RT-E/OT is 670 mW, which is calculated based on the package thermal resistance and the maximum junction temperature.
-
To ensure stability in a unity-gain configuration, it's recommended to add a capacitor (typically 10-22 pF) between the output and the inverting input to compensate for the internal capacitance of the op-amp.
-
To minimize noise and oscillations, it's recommended to keep the input and output traces short and away from each other, use a solid ground plane, and decouple the power supply with a 0.1 uF capacitor.
-
While the MCP6021RT-E/OT can be used as a comparator, it's not recommended due to its relatively slow slew rate and limited output current. A dedicated comparator IC would be a better choice for most applications.
-
The MCP6021RT-E/OT has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures when handling the device, such as using an ESD wrist strap or mat, and storing the device in an anti-static bag.
