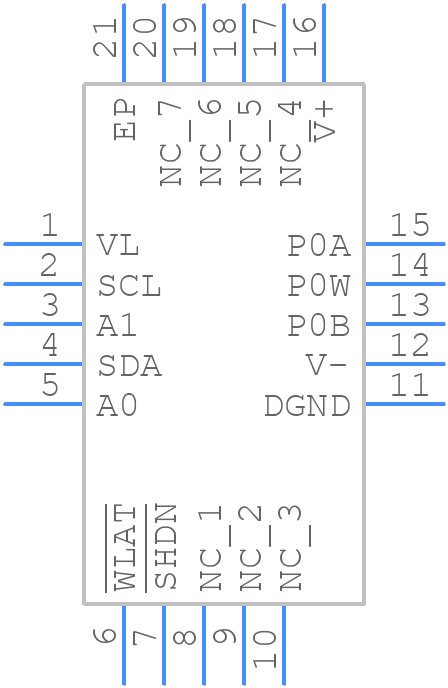

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MCP45HV51-503E/MQ by Microchip Technology Inc
Results Overview of MCP45HV51-503E/MQ by Microchip Technology Inc
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Education and Research
Environmental Monitoring
Industrial Automation
Audio and Video Systems
Agriculture Technology
Medical Imaging
Entertainment and Gaming
MCP45HV51-503E/MQ Information
MCP45HV51-503E/MQ by Microchip Technology Inc is a Digital Potentiometer.
Digital Potentiometers are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for MCP45HV51-503E/MQ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
53X3302
|
Newark | 8-Bit, Volatile, Potentiometer, 50Kohm, 5X5Qfn 20 Qfn 5X5X0.9Mm Tube Rohs Compliant: Yes |Microchip MCP45HV51-503E/MQ RoHS: Compliant Min Qty: 292 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$1.5600 | Buy Now |
|
DISTI #
MCP45HV51-503E/MQ-ND
|
DigiKey | IC DGTL POT 50KOHM 256TAP 20QFN Min Qty: 1 Lead time: 6 Weeks Container: Tube |
72 In Stock |
|
$1.5100 / $2.0000 | Buy Now |
|
DISTI #
MCP45HV51-503E/MQ
|
Avnet Americas | Digital Potentiometer 256POS 50KOhm Single 20-Pin QFN Tube - Rail/Tube (Alt: MCP45HV51-503E/MQ) RoHS: Compliant Min Qty: 219 Package Multiple: 73 Lead time: 6 Weeks, 0 Days Container: Tube | 0 |
|
$1.5100 / $2.0000 | Buy Now |
|
DISTI #
579-MCP45HV51-503EMQ
|
Mouser Electronics | Digital Potentiometer ICs 8-bit, vol Digi Pot 50k ohm, 5x5QFN RoHS: Compliant | 639 |
|
$1.5100 / $2.0000 | Buy Now |
|
DISTI #
MCP45HV51-503E/MQ
|
Microchip Technology Inc | 50k ohm, 8-Bit Digipot,+/-18V or +/-36V Operation, I2C Interface,Volatile Memory, QFN, Projected EOL: 2039-06-11 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Tube |
1549 Alternates Available |
|
$1.4300 / $2.0000 | Buy Now |
|
DISTI #
70567823
|
RS | 8-bit, volatile, Potentiometer, 50kohm, 5x5QFN Min Qty: 292 Package Multiple: 1 Lead time: 10 Weeks, 0 Days Container: Bulk | 0 |
|
$2.3400 / $2.7500 | RFQ |
|
|
Onlinecomponents.com | Digital Potentiometer - 50kOhm - 256 Position - Volatile 20-Pin QFN EP - Tube RoHS: Compliant | 1533 Factory Stock |
|
$1.2900 / $1.5200 | Buy Now |
|
|
NAC | 8-bit, volatile, Potentiometer, 50kohm, 5x5QFN - Package: 20 QFN 5x5x0.9mm TUBE RoHS: Compliant Min Qty: 219 Package Multiple: 73 Container: Tube | 0 |
|
$1.6000 / $1.9700 | Buy Now |
|
|
Master Electronics | Digital Potentiometer - 50kOhm - 256 Position - Volatile 20-Pin QFN EP - Tube RoHS: Compliant | 1533 Factory Stock |
|
$1.2900 / $1.5200 | Buy Now |
|
|
Vyrian | Converters | 152 |
|
RFQ |
Part Details for MCP45HV51-503E/MQ
MCP45HV51-503E/MQ CAD Models
MCP45HV51-503E/MQ Part Data Attributes
|
|
MCP45HV51-503E/MQ
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
MCP45HV51-503E/MQ
Microchip Technology Inc
IC SPECIALTY MEMORY CIRCUIT, Memory IC:Other
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 6 Weeks | |
| Samacsys Manufacturer | Microchip | |
| Additional Feature | THE RESISTOR ARRAY VALUES ARE 5000 OHM,10000 OHM, 50000 OHM | |
| Bandwidth-Nom | 0.024 kHz | |
| Control Interface | 2-WIRE SERIAL | |
| Converter Type | DIGITAL POTENTIOMETER | |
| JESD-30 Code | S-PQCC-N20 | |
| JESD-609 Code | e3 | |
| Length | 5 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Positions | 256 | |
| Number of Terminals | 20 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC20,.20SQ,25 | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Resistance Law | LINEAR | |
| Resistance Tolerance-Max | 20% | |
| Resistor Terminal Voltage-Max | 18 V | |
| Resistor Terminal Voltage-Min | -18 V | |
| Screening Level | AEC-Q100; TS 16949 | |
| Seated Height-Max | 1 mm | |
| Supply Current-Max | 0.65 mA | |
| Supply Voltage-Nom | 3.5 V | |
| Surface Mount | YES | |
| Temperature Coefficient-Nom | 100 ppm/°C | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Total Resistance-Nom | 100000 Ω | |
| Width | 5 mm |
MCP45HV51-503E/MQ Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the MCP45HV51-503E/MQ is -40°C to +125°C.
-
The MCP45HV51-503E/MQ requires a single supply voltage (VDD) of 1.8V to 5.5V, and it's recommended to use a decoupling capacitor of 10nF to 100nF between VDD and GND to ensure proper power supply.
-
The maximum output current of the MCP45HV51-503E/MQ is 3mA per channel, and it's recommended to use an external buffer or amplifier if higher output currents are required.
-
The MCP45HV51-503E/MQ has a gain setting pin (GAIN) that can be connected to VDD, GND, or left floating to select one of three gain settings: 1x, 2x, or 4x. Refer to the datasheet for specific gain setting configurations.
-
The typical settling time of the MCP45HV51-503E/MQ is 10μs to 20μs, depending on the gain setting and output load. This settling time can be affected by the output capacitance and resistance.
