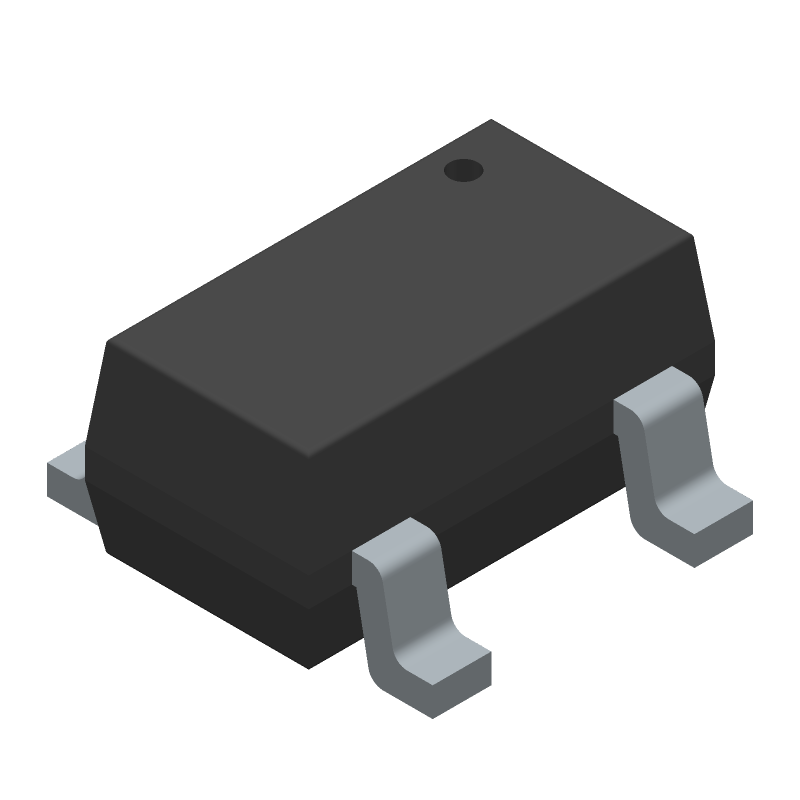

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MCP3221A2T-E/OT by Microchip Technology Inc
Results Overview of MCP3221A2T-E/OT by Microchip Technology Inc
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
MCP3221A2T-E/OT Information
MCP3221A2T-E/OT by Microchip Technology Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for MCP3221A2T-E/OT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
68AJ1800
|
Newark | Adc, Sar, 12Bit, 22.3Ksps, 125Deg C Rohs Compliant: Yes |Microchip MCP3221A2T-E/OT RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 2242 |
|
$1.9100 | Buy Now |
|
DISTI #
06X3035
|
Newark | 12-Bit Adc, I2C, Single Channel 5 Sot-23 T/R Rohs Compliant: Yes |Microchip MCP3221A2T-E/OT RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$1.4800 | Buy Now |
|
DISTI #
150-MCP3221A2T-E/OTCT-ND
|
DigiKey | IC ADC 12BIT SAR SOT23-5 Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
7151 In Stock |
|
$1.4300 / $1.9100 | Buy Now |
|
DISTI #
MCP3221A2T-E/OT
|
Avnet Americas | - Tape and Reel (Alt: MCP3221A2T-E/OT) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 6 Weeks, 0 Days Container: Reel | 0 |
|
$1.4508 / $1.5500 | Buy Now |
|
DISTI #
579-MCP3221A2T-E/OT
|
Mouser Electronics | Analog to Digital Converters - ADC 12-bit ADC, I2C, single channel RoHS: Compliant | 600 |
|
$1.4300 / $1.9100 | Buy Now |
|
DISTI #
MCP3221A2T-E/OT
|
Microchip Technology Inc | 5V, SINGLE CHANNEL, 12 BIT SERIAL A/D CONVERTER, SOT-23, Projected EOL: 2034-08-29 COO: Malaysia, Thailand ECCN: EAR99 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Reel |
15000 Alternates Available |
|
$1.3800 / $1.9100 | Buy Now |
|
DISTI #
70568900
|
RS | Converters, Analog to Digital, 12-bit ADC, I2C, single channel Min Qty: 3000 Package Multiple: 1 Lead time: 10 Weeks, 0 Days Container: Bulk | 0 |
|
$2.2500 / $2.6500 | RFQ |
|
|
Onlinecomponents.com | RoHS: Compliant | 12000 Factory Stock |
|
$1.2500 / $1.3700 | Buy Now |
|
DISTI #
MCP3221A2T-E/OT
|
TME | IC: A/D converter, Ch: 1, 12bit, 100ksps, 2.7÷5.5V, SOT23-5 Min Qty: 1 | 0 |
|
$1.5500 / $1.9900 | RFQ |
|
|
NAC | 12-bit ADC, I2C, single channel - Package: 5 SOT-23 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 | 0 |
|
$1.5500 / $1.9100 | Buy Now |
Part Details for MCP3221A2T-E/OT
MCP3221A2T-E/OT CAD Models
MCP3221A2T-E/OT Part Data Attributes
|
|
MCP3221A2T-E/OT
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
MCP3221A2T-E/OT
Microchip Technology Inc
1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL ACCESS, PDSO5, PLASTIC, SC-74A, SOT-23, 5 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Part Package Code | SOT-23 | |
| Package Description | SOT-23, 5 PIN | |
| Pin Count | 5 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 6 Weeks | |
| Samacsys Manufacturer | Microchip | |
| Analog Input Voltage-Max | 5.8 V | |
| Analog Input Voltage-Min | -0.3 V | |
| Converter Type | ADC, SUCCESSIVE APPROXIMATION | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e3 | |
| Length | 2.95 mm | |
| Linearity Error-Max (EL) | 0.0488% | |
| Moisture Sensitivity Level | 1 | |
| Number of Analog In Channels | 1 | |
| Number of Bits | 12 | |
| Number of Functions | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | BINARY | |
| Output Format | SERIAL | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Equivalence Code | TSOP5/6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 0.0223 MHz | |
| Sample and Hold / Track and Hold | SAMPLE | |
| Screening Level | TS 16949 | |
| Seated Height-Max | 1.45 mm | |
| Supply Current-Max | 0.25 mA | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Width | 1.63 mm |
MCP3221A2T-E/OT Frequently Asked Questions (FAQ)
-
Microchip recommends a 4-layer PCB with a solid ground plane, and placing the ADC as close as possible to the analog signal sources. Additionally, use a separate analog ground plane and keep digital signals away from the ADC.
-
The MCP3221A2T-E/OT has an internal calibration circuit that can be used to calibrate the ADC. The calibration process involves writing a specific code to the calibration register, and then reading the calibration result from the ADC output register.
-
The maximum sampling rate of the MCP3221A2T-E/OT is 22,000 samples per second. The power consumption increases with the sampling rate, so it's essential to balance the sampling rate with power consumption requirements.
-
The MCP3221A2T-E/OT has a sleep mode that can be enabled by writing a specific code to the control register. The wake-up time is approximately 2 μs, and it's essential to ensure that the device is in a stable state before taking a conversion.
-
The recommended input signal range is 0 to VREF (2.5V or 5V), and the input impedance should be less than 1 kΩ to ensure accurate conversions.
