MCP1726T-ADJE/MF by: Microchip Technology Inc

0.8 V-5 V ADJUSTABLE POSITIVE LDO REGULATOR, 0.5 V DROPOUT, PDSO8, 3 X 3 MM, 0.90 MM HEIGHT, LEAD FREE, PLASTIC, DFN-8

Part Details for MCP1726T-ADJE/MF by Microchip Technology Inc

Results Overview of MCP1726T-ADJE/MF by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Transportation and Logistics Renewable Energy Automotive

MCP1726T-ADJE/MF Information

MCP1726T-ADJE/MF by Microchip Technology Inc is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
TCKE712BNL Toshiba Electronic Devices & Storage Corporation eFuse IC (electronic Fuse), 4.4 to 13.2 V, 3.65 A, Latch, Adjustable Over Voltage Protection, WSON10
CA3085B Rochester Electronics LLC CA3085 - Adjustable Positive Standard Regulator
CA3085AE Rochester Electronics LLC CA3085 - Adjustable Positive Standard Regulator, 1.6V Min, 37V Max, BIPolar, PDIP8

Price & Stock for MCP1726T-ADJE/MF

Part # Distributor Description Stock Price Buy
DISTI # 55AC2710
Newark Ldo, Adj, 0.8V-5V, 1A, Dfn-8, Output Type:Adjustable, Input Voltage Min:2.3V, Input Voltage Max:6V, Fixed Output Voltage Nom.:-, Adjustable Output Voltage Min:800Mv, Adjustable Output Voltage Max:5V, Output Current:1A, Dropout Rohs Compliant: Yes |Microchip MCP1726T-ADJE/MF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 4044
  • 1 $0.9000
  • 10 $0.8880
  • 25 $0.7700
  • 50 $0.7400
$0.7400 / $0.9000 Buy Now
DISTI # 22K1364
Newark Ic, volt Regulator, adjustable,+0.4V To +5V, cmos, llcc,8Pin, plastic Rohs Compliant: Yes |Microchip MCP1726T-ADJE/MF RoHS: Compliant Min Qty: 3300 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 3,300 $0.7320
$0.7320 Buy Now
DISTI # MCP1726T-ADJE/MFCT-ND
DigiKey IC REG LINEAR POS ADJ 1A 8-DFN Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 5527
In Stock
  • 1 $0.9100
  • 25 $0.7700
  • 100 $0.7100
  • 3,300 $0.7100
$0.7100 / $0.9100 Buy Now
DISTI # MCP1726T-ADJE/MF
Avnet Americas LDO Voltage Regulator, Adjustable, 2.3 V to 6 V, 1 Output, 220mV @ 1A, 800 mV to 5 V, 1 A, 8 Pins, DFN-EP - Tape and Reel (Alt: MCP1726T-ADJE/MF) RoHS: Compliant Min Qty: 3300 Package Multiple: 3300 Lead time: 6 Weeks, 0 Days Container: Reel 0
  • 3,300 $0.7375
  • 6,600 $0.7256
  • 13,200 $0.7138
  • 19,800 $0.7020
  • 26,400 $0.6903
$0.6903 / $0.7375 Buy Now
DISTI # 579-MCP1726T-ADJE/MF
Mouser Electronics LDO Voltage Regulators 1A CMOS LDO RoHS: Compliant 35772
  • 1 $0.6800
  • 10 $0.6700
  • 25 $0.6500
  • 3,300 $0.6490
  • 9,900 $0.6250
$0.6250 / $0.6800 Buy Now
DISTI # E54:1762_00054376
Arrow Electronics LDO Regulator Pos 0.8V to 5V 1A Automotive AEC-Q100 8-Pin DFN EP T/R RoHS: Compliant Min Qty: 3300 Package Multiple: 3300 Lead time: 6 Weeks Europe - 3300
  • 3,300 $0.6360
$0.6360 Buy Now
DISTI # V72:2272_06441275
Arrow Electronics LDO Regulator Pos 0.8V to 5V 1A Automotive AEC-Q100 8-Pin DFN EP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Date Code: 2305 Container: Cut Strips Americas - 406
  • 1 $0.8209
  • 10 $0.8080
  • 25 $0.7952
  • 100 $0.7823
  • 250 $0.7695
  • 500 $0.7566
$0.7566 / $0.8209 Buy Now
DISTI # MCP1726T-ADJE/MF
Microchip Technology Inc 1A Low Voltage Low lq LDO, DFN, Projected EOL: 2034-02-22 COO: Philippines, Thailand ECCN: EAR99 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Reel 7015

Alternates Available
  • 1 $0.9100
  • 25 $0.7700
  • 100 $0.7100
  • 1,000 $0.6800
  • 5,000 $0.6500
$0.6500 / $0.9100 Buy Now
DISTI # 70452489
RS 1A CMOS LDO, Adjustable Vout, PowerGOOD, Shutdown8 DFN 3x3x0.9mm T/R Min Qty: 3300 Package Multiple: 1 Lead time: 52 Weeks, 0 Days Container: Bulk 0
  • 3,300 $1.2800
  • 33,000 $1.2100
  • 165,000 $1.1500
  • 330,000 $1.0800
$1.0800 / $1.2800 RFQ
Onlinecomponents.com LDO Regulator Pos 0.8V to 5V 1A Automotive 8-Pin DFN EP T/R RoHS: Compliant 5600 In Stock
9900 Factory Stock
  • 25 $1.3600
  • 250 $1.3400
  • 500 $1.3200
  • 825 $1.3000
  • 1,650 $0.8000
  • 2,475 $0.6330
  • 3,300 $0.6210
$0.6210 / $1.3600 Buy Now
DISTI # 66708929
Verical LDO Regulator Pos 0.8V to 5V 1A Automotive AEC-Q100 8-Pin DFN EP T/R RoHS: Compliant Min Qty: 50 Package Multiple: 25 Date Code: 2307 Americas - 5600
  • 50 $1.7369
  • 250 $1.6523
  • 500 $1.6000
  • 825 $1.5495
  • 1,650 $0.9379
$0.9379 / $1.7369 Buy Now
DISTI # 66682618
Verical LDO Regulator Pos 0.8V to 5V 1A Automotive AEC-Q100 8-Pin DFN EP T/R RoHS: Compliant Min Qty: 8 Package Multiple: 1 Date Code: 2305 Americas - 406
  • 8 $0.8209
  • 10 $0.8080
  • 25 $0.7952
  • 100 $0.7823
  • 250 $0.7695
  • 500 $0.7566
$0.7566 / $0.8209 Buy Now
Bristol Electronics   1184
RFQ
DISTI # MCP1726T-ADJE/MF
IBS Electronics LDO REGULATOR POS 0.8V TO 5V 1A AUTOMOTIVE 8-PIN DFN EP T/R Min Qty: 25 Package Multiple: 1 5600
  • 25 $1.7680
  • 250 $1.7420
  • 500 $1.7160
  • 825 $1.6900
  • 1,650 $1.0400
  • 2,475 $0.8229
  • 3,300 $0.8073
$0.8073 / $1.7680 Buy Now
NAC 1A CMOS LDO, Adjustable Vout, PowerGOOD, Shutdown - Package: 8 DFN 3x3x0.9mm T/R RoHS: Compliant Min Qty: 3300 Package Multiple: 3300 0
  • 1 $0.9100
  • 100 $0.8200
  • 500 $0.7600
  • 1,000 $0.7400
$0.7400 / $0.9100 Buy Now
DISTI # MCP1726T-ADJE/MF
Avnet Silica LDO Voltage Regulator Adjustable 23 V to 6 V 1 Output 220mV 1A 800 mV to 5 V 1 A 8 Pins DFNEP (Alt: MCP1726T-ADJE/MF) RoHS: Compliant Min Qty: 3300 Package Multiple: 3300 Lead time: 8 Weeks, 0 Days Silica - 0
Buy Now
DISTI # MCP1726T-ADJE/MF
EBV Elektronik LDO Voltage Regulator Adjustable 23 V to 6 V 1 Output 220mV 1A 800 mV to 5 V 1 A 8 Pins DFNEP (Alt: MCP1726T-ADJE/MF) RoHS: Compliant Min Qty: 3300 Package Multiple: 3300 Lead time: 7 Weeks, 0 Days EBV - 0
Buy Now
Master Electronics LDO Regulator Pos 0.8V to 5V 1A Automotive 8-Pin DFN EP T/R RoHS: Compliant 5600 In Stock
9900 Factory Stock
  • 25 $1.3600
  • 250 $1.3400
  • 500 $1.3200
  • 825 $1.3000
  • 1,650 $0.8000
  • 2,475 $0.6330
  • 3,300 $0.6210
$0.6210 / $1.3600 Buy Now
Vyrian Regulators 9431
RFQ
Win Source Electronics IC REG LDO ADJ 1A 8DFN 17682
  • 55 $1.0907
  • 130 $0.8950
  • 200 $0.8669
  • 280 $0.8390
  • 360 $0.8110
  • 480 $0.7272
$0.7272 / $1.0907 Buy Now

Part Details for MCP1726T-ADJE/MF

MCP1726T-ADJE/MF CAD Models

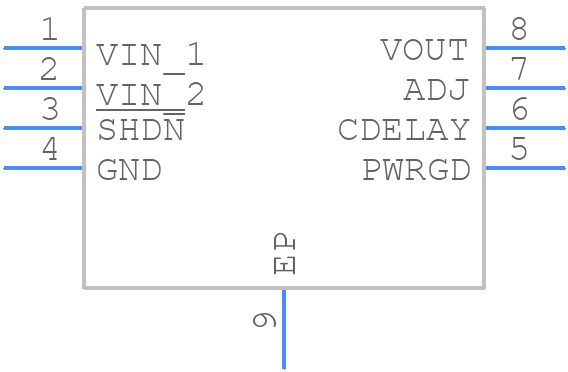

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MCP1726T-ADJE/MF Part Data Attributes

Parametric Data
MCP1726T-ADJE/MF Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
MCP1726T-ADJE/MF Microchip Technology Inc 0.8 V-5 V ADJUSTABLE POSITIVE LDO REGULATOR, 0.5 V DROPOUT, PDSO8, 3 X 3 MM, 0.90 MM HEIGHT, LEAD FREE, PLASTIC, DFN-8
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Part Package Code DFN
Package Description 3 X 3 MM, 0.90 MM HEIGHT, LEAD FREE, PLASTIC, DFN-8
Pin Count 8
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Factory Lead Time 6 Weeks
Samacsys Manufacturer Microchip
Adjustability ADJUSTABLE
Dropout Voltage1-Max 0.5 V
Dropout Voltage1-Nom 0.22 V
JESD-30 Code S-PDSO-N8
JESD-609 Code e3
Length 3 mm
Line Regulation-Max (%/V) 0.3
Load Regulation-Max(%) 1.5%
Moisture Sensitivity Level 1
Number of Functions 1
Number of Outputs 1
Number of Terminals 8
Operating Temperature TJ-Max 125 °C
Operating Temperature TJ-Min -40 °C
Output Current1-Max 1 A
Output Voltage1-Max 5 V
Output Voltage1-Min 0.8 V
Package Body Material PLASTIC/EPOXY
Package Code HVSON
Package Equivalence Code SOLCC8,.11,25
Package Shape SQUARE
Package Style SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Packing Method TR
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Regulator Type ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max 1 mm
Surface Mount YES
Technology CMOS
Terminal Finish Matte Tin (Sn)
Terminal Form NO LEAD
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 40
Width 3 mm

Alternate Parts for MCP1726T-ADJE/MF

This table gives cross-reference parts and alternative options found for MCP1726T-ADJE/MF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MCP1726T-ADJE/MF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
NCP59800BMNADJTBG onsemi $0.3368 LDO Regulator, 1 A, Low Dropout, Low Iq, Low Noise, with Enable, DFN-8, 3000-REEL MCP1726T-ADJE/MF vs NCP59800BMNADJTBG
NCP59800BMNADJTAG onsemi $0.4289 LDO Regulator, 1 A, Low Dropout, Low Iq, Low Noise, with Enable, DFN-8, 3000-REEL MCP1726T-ADJE/MF vs NCP59800BMNADJTAG
MCP1726T-ADJE/SN Microchip Technology Inc Check for Price 0.8 V-5 V ADJUSTABLE POSITIVE LDO REGULATOR, 0.5 V DROPOUT, PDSO8, 0.150 INCH, LEAD FREE, PLASTIC, SOIC-8 MCP1726T-ADJE/MF vs MCP1726T-ADJE/SN

MCP1726T-ADJE/MF Related Parts

MCP1726T-ADJE/MF Frequently Asked Questions (FAQ)

  • The maximum output current of the MCP1726T-ADJE/MF is 500mA.

  • The output voltage of the MCP1726T-ADJE/MF can be adjusted by using an external resistor divider network between the VOUT pin and the ADJ pin.

  • The input voltage range of the MCP1726T-ADJE/MF is 2.7V to 6.0V.

  • Yes, the MCP1726T-ADJE/MF is a low-dropout regulator (LDO) with a dropout voltage of 300mV at 500mA output current.

  • The thermal shutdown temperature of the MCP1726T-ADJE/MF is 150°C.
