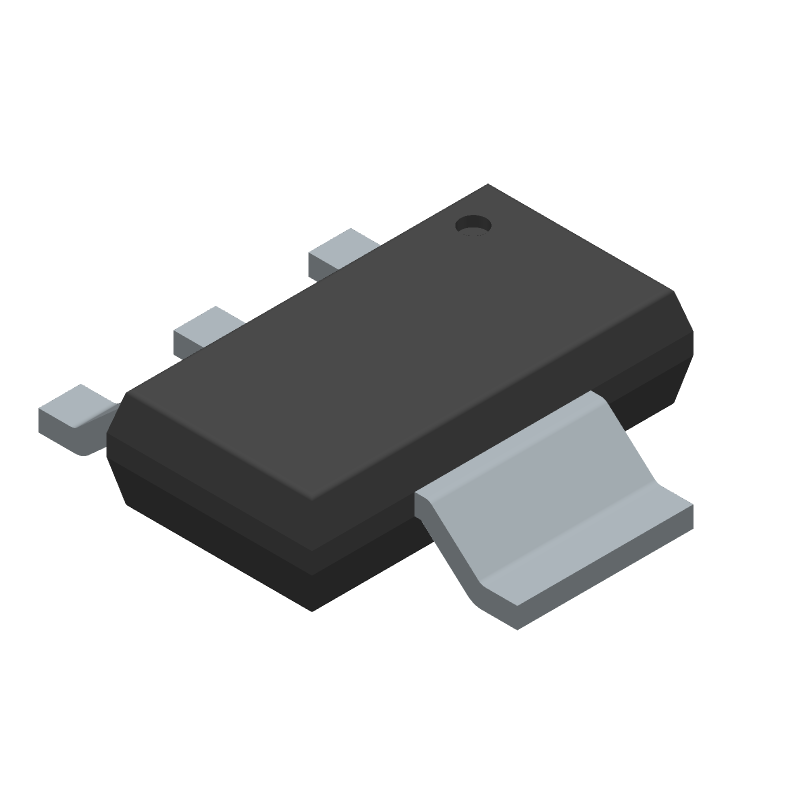

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MCP1703AT-5002E/DBVAO by Microchip Technology Inc
Results Overview of MCP1703AT-5002E/DBVAO by Microchip Technology Inc
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MCP1703AT-5002E/DBVAO Information
MCP1703AT-5002E/DBVAO by Microchip Technology Inc is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MCP1703AT-5002E/DBVAO
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
150-MCP1703AT-5002E/DBVAOCT-ND
|
DigiKey | IC REG LINEAR 5V 250MA SOT-223-3 Min Qty: 1 Lead time: 7 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) | Temporarily Out of Stock |
|
$1.8900 | Buy Now |
|
DISTI #
MCP1703AT-5002E/DBVAO
|
Microchip Technology Inc | LOWIQ 250MA LDO, VIN 16V MAX, VOUT=5.0V, SOT-223, Projected EOL: 2044-11-16 COO: Taiwan, Thailand ECCN: EAR99 RoHS: Compliant Lead time: 7 Weeks, 0 Days Container: Reel |
5300 Alternates Available |
|
$0.2200 / $0.3100 | Buy Now |
|
|
Onlinecomponents.com | RoHS: Compliant | 4000 Factory Stock |
|
$0 | Buy Now |
|
|
Vyrian | Regulators | 5042 |
|
RFQ |
Part Details for MCP1703AT-5002E/DBVAO
MCP1703AT-5002E/DBVAO CAD Models
MCP1703AT-5002E/DBVAO Part Data Attributes
|
|
MCP1703AT-5002E/DBVAO
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
MCP1703AT-5002E/DBVAO
Microchip Technology Inc
Fixed Positive LDO Regulator, 5V, 0.65V Dropout, CMOS, PDSO4
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Package Description | SOT-223, 4 PIN | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 7 Weeks | |
| Samacsys Manufacturer | Microchip | |
| Adjustability | FIXED | |
| Dropout Voltage1-Max | 0.65 V | |
| Dropout Voltage1-Nom | 0.33 V | |
| Input Voltage Absolute-Max | 18 V | |
| Input Voltage-Max | 16 V | |
| Input Voltage-Min | 5.75 V | |
| JESD-30 Code | R-PDSO-G4 | |
| JESD-609 Code | e3 | |
| Length | 6.5 mm | |
| Line Regulation-Max | 0.15375% | |
| Load Regulation-Max | 0.125% | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 4 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Output Current1-Max | 0.25 A | |
| Output Voltage1-Max | 5.15 V | |
| Output Voltage1-Min | 4.85 V | |
| Output Voltage1-Nom | 5 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HSOP | |
| Package Equivalence Code | SOT-223 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 1.8 mm | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 2.3 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tolerance-Max | 3% | |
| Width | 3.5 mm |
MCP1703AT-5002E/DBVAO Frequently Asked Questions (FAQ)
-
The maximum input voltage that can be applied to the MCP1703AT-5002E/DBVAO is 6V. Exceeding this voltage may damage the device.
-
To ensure the output voltage of the MCP1703AT-5002E/DBVAO is stable and accurate, it is recommended to use a high-quality input capacitor (e.g., ceramic or tantalum) with a value of at least 1uF, and to keep the input voltage within the recommended operating range.
-
The minimum input voltage required for the MCP1703AT-5002E/DBVAO to operate is 2.7V. Operating the device below this voltage may result in reduced performance or failure.
-
The MCP1703AT-5002E/DBVAO is rated for operation up to 125°C. However, it is recommended to derate the output current and power dissipation at high temperatures to ensure reliable operation.
-
The power dissipation of the MCP1703AT-5002E/DBVAO can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current.
