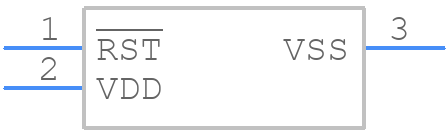

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MCP120T-485I/TT by Microchip Technology Inc
Results Overview of MCP120T-485I/TT by Microchip Technology Inc
- Distributor Offerings: (22 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
MCP120T-485I/TT Information
MCP120T-485I/TT by Microchip Technology Inc is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MCP120T-485I/TT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
23C2797
|
Newark | Microcontroller Mcu Voltage Supervisor 45 Ua 5.5V Sot23-3, Reset Threshold Voltage ? Min:-, Reset Threshold Voltage ? Max:-, Reset Threshold Voltage - Nom:4.725V, No. Of Monitored Voltages:1Monitors, Supply Voltage Min:1V Rohs Compliant: Yes |Microchip MCP120T-485I/TT RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
$0.4600 | Buy Now |
|
DISTI #
MCP120T-485I/TTCT-ND
|
DigiKey | IC SUPERVISOR 1 CHANNEL SOT23-3 Min Qty: 1 Lead time: 17 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
11118 In Stock |
|
$0.4600 / $0.6000 | Buy Now |
|
DISTI #
MCP120T-485I/TT
|
Avnet Americas | Processor Supervisor 4.725V 3V/3.3V/5V 3-Pin SOT-23 T/R - Tape and Reel (Alt: MCP120T-485I/TT) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 17 Weeks, 0 Days Container: Reel | 0 |
|
$0.2691 / $0.2875 | Buy Now |
|
DISTI #
579-MCP120T-485I/TT
|
Mouser Electronics | Supervisory Circuits Open Drain Low RoHS: Compliant | 3555 |
|
$0.4600 / $0.6000 | Buy Now |
|
DISTI #
V72:2272_06440049
|
Arrow Electronics | Processor Supervisor 4.725V 1 Active Low/Open Drain Automotive 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 17 Weeks Date Code: 2303 Container: Cut Strips | Americas - 41 |
|
$0.4591 / $0.5988 | Buy Now |
|
DISTI #
MCP120T-485I/TT
|
Microchip Technology Inc | Supervisor Open Drain Active Low, SOT-23, Projected EOL: 2034-05-16 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 17 Weeks, 0 Days Container: Reel |
0 Alternates Available |
|
$0.3500 / $0.6000 | Buy Now |
|
DISTI #
70388915
|
RS | Microchip MCP120T-485I/TT, Voltage Supervisor 4.6 - 4.85 V, 3-Pin SOT-23 Min Qty: 3000 Package Multiple: 1 Lead time: 35 Weeks, 0 Days Container: Bulk | 0 |
|
$0.5000 / $0.5900 | RFQ |
|
|
Onlinecomponents.com | Processor Supervisor 4.725V 3V/3.3V/5V Automotive 3-Pin SOT-23 T/R RoHS: Compliant |
6000 In Stock 6000 Factory Stock |
|
$0.2683 / $0.2918 | Buy Now |
|
DISTI #
76894500
|
Verical | Processor Supervisor 4.725V 1 Active Low/Open Drain Automotive 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Date Code: 2346 | Americas - 6000 |
|
$0.3541 / $0.3793 | Buy Now |
|
DISTI #
69219390
|
Verical | Processor Supervisor 4.725V 1 Active Low/Open Drain Automotive 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 104 Package Multiple: 1 | Americas - 2700 |
|
$0.3340 / $0.5380 | Buy Now |
Part Details for MCP120T-485I/TT
MCP120T-485I/TT CAD Models
MCP120T-485I/TT Part Data Attributes
|
|
MCP120T-485I/TT
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
MCP120T-485I/TT
Microchip Technology Inc
1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO3, SOT-23, 3 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Part Package Code | SOT-23 | |
| Package Description | SOT-23, 3 PIN | |
| Pin Count | 3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 17 Weeks | |
| Samacsys Manufacturer | Microchip | |
| Additional Feature | MNL RST:N;PW FL IO:N;PRG RST DLY:N;WD:N;WDO:N;WWD:N | |
| Adjustable Threshold | NO | |
| Analog IC - Other Type | VOLTAGE SUPERVISOR/RESET IC | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Length | 2.92 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSOP | |
| Package Equivalence Code | TO-236 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.12 mm | |
| Supply Current-Max (Isup) | 0.06 mA | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Threshold Voltage-Nom | +4.73V | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Width | 1.3 mm |
