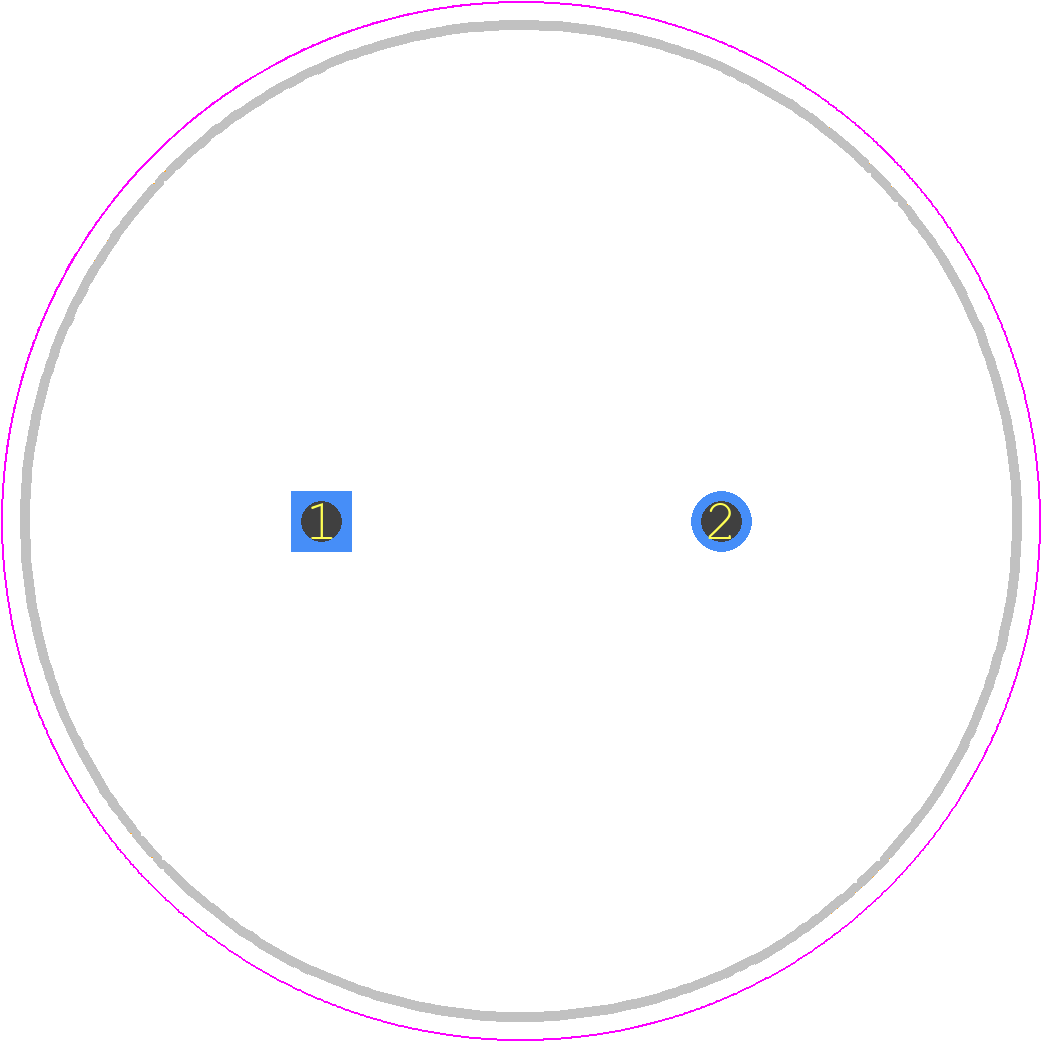

Footprint
-

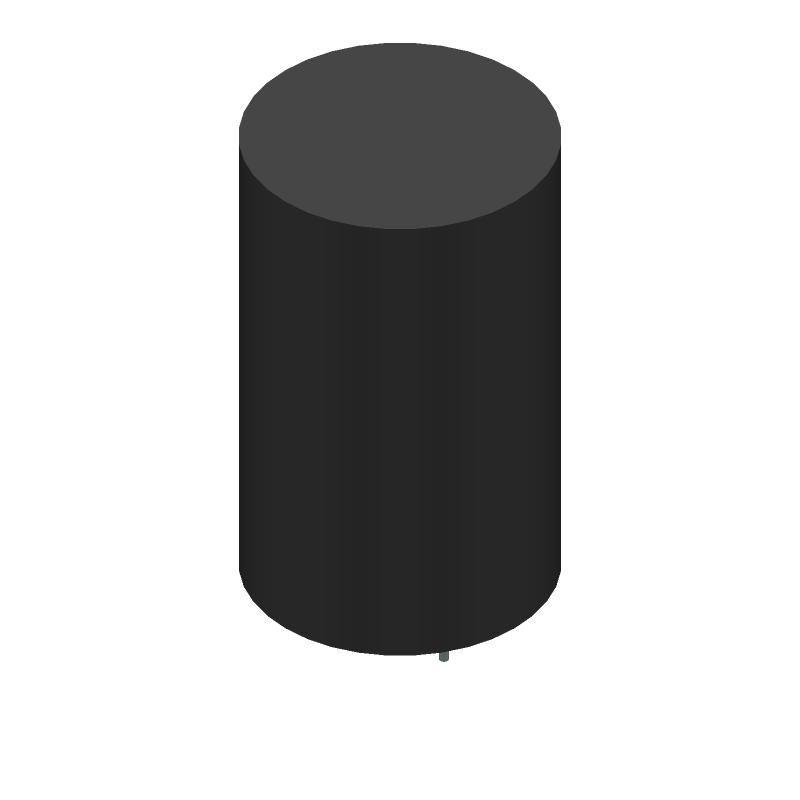

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MCKLZ250M471N40Y by SPC Multicomp
Results Overview of MCKLZ250M471N40Y by SPC Multicomp
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MCKLZ250M471N40Y Information
MCKLZ250M471N40Y by SPC Multicomp is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for MCKLZ250M471N40Y
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
94Y5967
|
Newark | Cap, Alu Elec, 470Uf, 250V, Snap In, Capacitance:470Μf, Voltage(Dc):250V, Voltage(Ac):-, Capacitance Tolerance:± 20%, Capacitor Terminals:Snap-In, Lifetime @ Temperature:2000 Hours @ 105°C, Polarity:Polar, Product Diameter:25Mm Rohs Compliant: Yes |Multicomp Pro MCKLZ250M471N40Y RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 1 |
|
$0.3200 | Buy Now |
Part Details for MCKLZ250M471N40Y
MCKLZ250M471N40Y CAD Models
MCKLZ250M471N40Y Part Data Attributes
|
|
MCKLZ250M471N40Y
SPC Multicomp
Buy Now
Datasheet
|
Compare Parts:
MCKLZ250M471N40Y
SPC Multicomp
Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 250V, 20% +Tol, 20% -Tol, 470uF, Through Hole Mount,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MULTICOMP PRO | |
| Reach Compliance Code | unknown | |
| Samacsys Manufacturer | Multicomp Pro | |
| Mentor OK | true | |
| Capacitance | 470 µF | |
| Capacitor Type | ALUMINUM ELECTROLYTIC CAPACITOR | |
| Diameter | 25 mm | |
| Dielectric Material | ALUMINUM (WET) | |
| Leakage Current | 3 mA | |
| Length | 40 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Negative Tolerance | 20% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Style | Snap-in | |
| Polarity | POLARIZED | |
| Positive Tolerance | 20% | |
| Rated (DC) Voltage (URdc) | 250 V | |
| Ripple Current | 1630 mA | |
| Surface Mount | NO | |
| Tan Delta | 0.15 | |
| Terminal Pitch | 10 mm | |
| Terminal Shape | SNAP-IN |
Alternate Parts for MCKLZ250M471N40Y
This table gives cross-reference parts and alternative options found for MCKLZ250M471N40Y. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MCKLZ250M471N40Y, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| B43547E2477M002 | TDK Electronics | Check for Price | CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID | MCKLZ250M471N40Y vs B43547E2477M002 |
| B43547E2477M002 | TDK Corporation | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 250V, 20% +Tol, 20% -Tol, 470uF, | MCKLZ250M471N40Y vs B43547E2477M002 |
| B43547E2477M000 | TDK Electronics | Check for Price | CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID | MCKLZ250M471N40Y vs B43547E2477M000 |
| B43547E2477M087 | TDK Electronics | Check for Price | CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID | MCKLZ250M471N40Y vs B43547E2477M087 |
| LGU2E471MERAGA | Nichicon Corporation | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum, 250V, 20% +Tol, 20% -Tol, 470uF, | MCKLZ250M471N40Y vs LGU2E471MERAGA |
| B43547E2477M067 | TDK Corporation | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 250V, 20% +Tol, 20% -Tol, 470uF, | MCKLZ250M471N40Y vs B43547E2477M067 |
| SIH47125025040 | FTCAP Fischer & Tausche Capacitor Group | Check for Price | CAP,AL2O3,470UF,250VDC,20% -TOL,20% +TOL | MCKLZ250M471N40Y vs SIH47125025040 |
| PEH532SBE3470M2 | KEMET Corporation | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 250V, 20% +Tol, 20% -Tol, 470uF, Through Hole Mount, ROHS COMPLIANT | MCKLZ250M471N40Y vs PEH532SBE3470M2 |
| B43547E2477M082 | TDK Corporation | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 250V, 20% +Tol, 20% -Tol, 470uF, | MCKLZ250M471N40Y vs B43547E2477M082 |
| B43547E2477M087 | TDK Corporation | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 250V, 20% +Tol, 20% -Tol, 470uF, | MCKLZ250M471N40Y vs B43547E2477M087 |
