MCF51JM128EVLK by:

32-BIT, FLASH, 50.33MHz, RISC MICROCONTROLLER, PQFP80

Part Details for MCF51JM128EVLK by NXP Semiconductors

Results Overview of MCF51JM128EVLK by NXP Semiconductors

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Industrial Automation Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Automotive Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Renewable Energy Entertainment and Gaming Robotics and Drones

MCF51JM128EVLK Information

MCF51JM128EVLK by NXP Semiconductors is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for MCF51JM128EVLK

Part # Distributor Description Stock Price Buy
DISTI # 89M1947
Newark Microcontroller Mcu, 32 Bit, Coldfire V1, 50Mhz, Lqfp-80, Product Range:Coldfire V1 Family Mcf51Jm Series Microcontrollers, Device Core:Coldfire V1, Data Bus Width:32 Bit, Operating Frequency Max:50Mhz, Program Memory Size:128Kb Rohs Compliant: Yes |Nxp MCF51JM128EVLK RoHS: Compliant Min Qty: 450 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 250 $10.4100
  • 900 $10.2300
$10.2300 / $10.4100 Buy Now
DISTI # MCF51JM128EVLK-ND
DigiKey IC MCU 32BIT 128KB FLASH 80LQFP Min Qty: 1 Lead time: 13 Weeks Container: Tray 682
In Stock
  • 1 $15.7700
  • 10 $12.5560
  • 24 $11.7846
  • 80 $10.9902
  • 230 $10.8700
$10.8700 / $15.7700 Buy Now
DISTI # MCF51JM128EVLK
Avnet Americas MCU 32-bit MCF51JM ColdFire RISC 128KB Flash 3.3V/5V 80-Pin LQFP Tray - Trays (Alt: MCF51JM128EVLK) RoHS: Compliant Min Qty: 450 Package Multiple: 450 Lead time: 13 Weeks, 0 Days Container: Tray 0
  • 450 $10.5829
  • 900 $10.4872
  • 1,800 $10.4044
  • 2,700 $10.3168
  • 3,600 $10.2306
$10.2306 / $10.5829 Buy Now
DISTI # 841-MCF51JM128EVLK
Mouser Electronics 32-bit Microcontrollers - MCU 80CAU 128K FLASH 16K RAM RoHS: Compliant 400
  • 1 $14.3600
  • 10 $11.1000
  • 25 $10.8700
  • 450 $10.8600
$10.8600 / $14.3600 Buy Now
DISTI # V36:1790_07189847
Arrow Electronics MCU 32-bit ColdFire RISC 128KB Flash 3.3V/5V 80-Pin LQFP Tray RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks Date Code: 2409 Americas - 34
  • 1 $13.1350
  • 10 $10.6930
  • 24 $10.5110
  • 80 $10.4170
$10.4170 / $13.1350 Buy Now
DISTI # 84989162
Verical MCU 32-bit ColdFire RISC 128KB Flash 3.3V/5V 80-Pin LQFP Tray RoHS: Compliant Min Qty: 450 Package Multiple: 450 Americas - 900
  • 450 $11.9024
$11.9024 Buy Now
DISTI # 70802487
Verical MCU 32-bit ColdFire RISC 128KB Flash 3.3V/5V 80-Pin LQFP Tray RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2336 Americas - 34
  • 1 $13.1350
  • 10 $10.6930
  • 24 $10.5110
  • 80 $10.4170
$10.4170 / $13.1350 Buy Now
DISTI # MCF51JM128EVLK
Avnet Silica MCU 32bit MCF51JM ColdFire RISC 128KB Flash 33V5V 80Pin LQFP Tray (Alt: MCF51JM128EVLK) RoHS: Compliant Min Qty: 90 Package Multiple: 90 Lead time: 15 Weeks, 0 Days Silica - 360
Buy Now
Cytech Systems Limited IC MCU 32BIT 128KB FLASH 80LQFP 900
RFQ
DISTI # MCF51JM128EVLK
EBV Elektronik MCU 32bit MCF51JM ColdFire RISC 128KB Flash 33V5V 80Pin LQFP Tray (Alt: MCF51JM128EVLK) RoHS: Compliant Min Qty: 90 Package Multiple: 90 Lead time: 15 Weeks, 0 Days EBV - 0
Buy Now

Part Details for MCF51JM128EVLK

MCF51JM128EVLK CAD Models

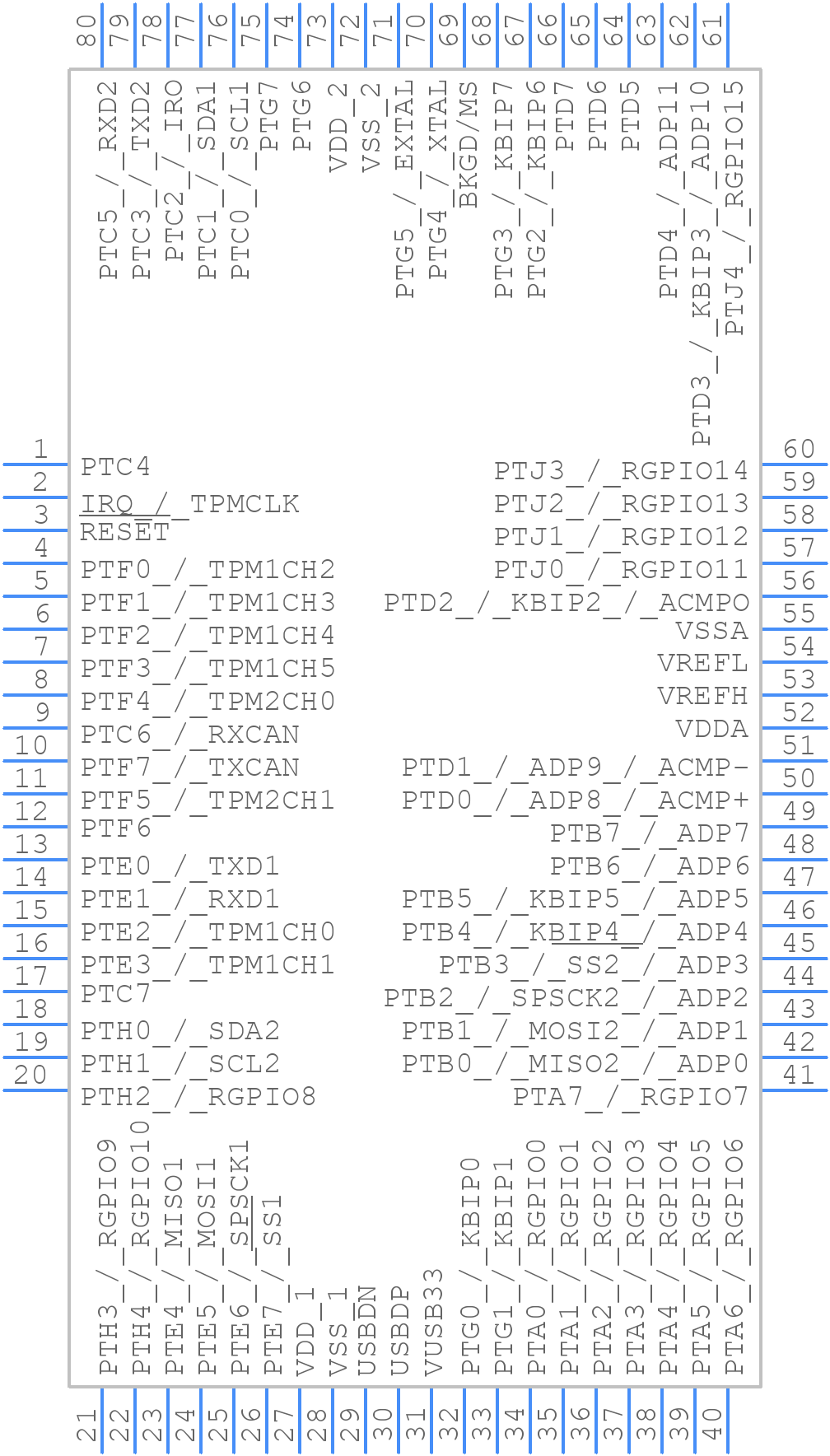

  • Part Symbol

    Part Symbol

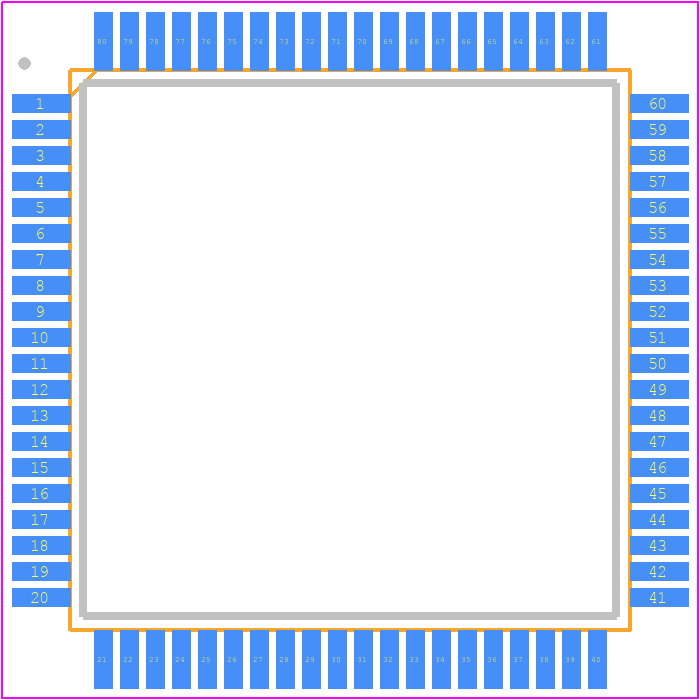

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MCF51JM128EVLK Part Data Attributes

Parametric Data
MCF51JM128EVLK NXP Semiconductors
Buy Now Datasheet
Compare Parts:
MCF51JM128EVLK NXP Semiconductors 32-BIT, FLASH, 50.33MHz, RISC MICROCONTROLLER, PQFP80
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer NXP SEMICONDUCTORS
Package Description 14 X 14 MM, 1.40 MM HEIGHT, 0.65 MM PITCH, LQFP-80
Reach Compliance Code compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 13 Weeks
Samacsys Manufacturer NXP
Has ADC YES
Address Bus Width
Bit Size 32
CPU Family COLDFIRE
Clock Frequency-Max 16 MHz
DAC Channels NO
DMA Channels NO
External Data Bus Width
JESD-30 Code S-PQFP-G80
JESD-609 Code e3
Length 14 mm
Moisture Sensitivity Level 3
Number of I/O Lines 66
Number of Terminals 80
On Chip Program ROM Width 8
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code QFP
Package Equivalence Code QFP80,.64SQ
Package Shape SQUARE
Package Style FLATPACK
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 16384
ROM (words) 131072
ROM Programmability FLASH
Seated Height-Max 1.74 mm
Speed 50.33 MHz
Supply Current-Max 70 mA
Supply Voltage-Max 5.5 V
Supply Voltage-Min 5 V
Supply Voltage-Nom 5 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 40
Width 14 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for MCF51JM128EVLK

This table gives cross-reference parts and alternative options found for MCF51JM128EVLK. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MCF51JM128EVLK, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MCF51JM128EVLK Freescale Semiconductor Check for Price 32-BIT, FLASH, 50.33MHz, RISC MICROCONTROLLER, PQFP80, 14 X 14 MM, 1.40 MM HEIGHT, 0.65 MM PITCH, LQFP-80 MCF51JM128EVLK vs MCF51JM128EVLK
MCF51JM128EVLK Rochester Electronics LLC Check for Price 32-BIT, FLASH, 50.33 MHz, RISC MICROCONTROLLER, PQFP80, 14 X 14 MM, 1.40 MM HEIGHT, 0.65 MM PITCH, LQFP-80 MCF51JM128EVLK vs MCF51JM128EVLK
MCF51JM128VLK Rochester Electronics LLC Check for Price 32-BIT, FLASH, 50.33 MHz, RISC MICROCONTROLLER, PQFP80, 14 X 14 MM, 1.40 MM HEIGHT, 0.65 MM PITCH, LQFP-80 MCF51JM128EVLK vs MCF51JM128VLK
MCF51JM128VLK Freescale Semiconductor Check for Price MCF51JM 32-bit MCU, ColdFire V1 core, 128KB Flash, 50MHz, QFP 80 MCF51JM128EVLK vs MCF51JM128VLK

MCF51JM128EVLK Related Parts

MCF51JM128EVLK Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the MCF51JM128EVLK is 50 MHz.

  • The clock settings on the MCF51JM128EVLK can be configured using the Clock Management Unit (CMU) registers. Refer to the device's reference manual for more information.

  • The External Reset Pin (EXTAL) is used to reset the device externally. It can be connected to a push-button or a reset generator IC to reset the device.

  • The ADC on the MCF51JM128EVLK can be used by configuring the ADC registers and enabling the ADC clock. Refer to the device's reference manual for more information.

  • The maximum current consumption of the MCF51JM128EVLK is 25 mA at 50 MHz with all peripherals enabled.
