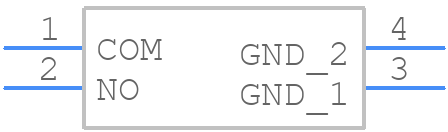

Part Symbol
-

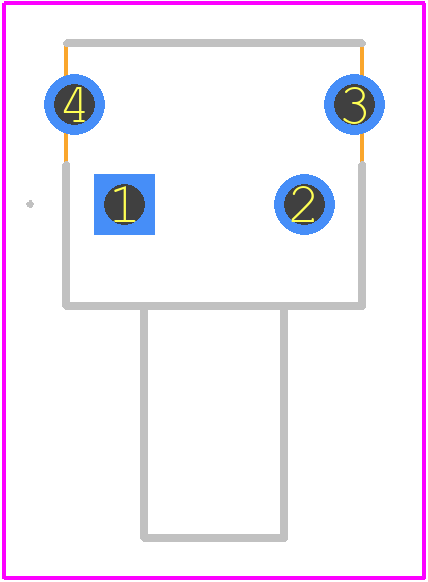

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MCDTSA6-5K by SPC Multicomp
Results Overview of MCDTSA6-5K by SPC Multicomp
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Renewable Energy
Automotive
MCDTSA6-5K Information
MCDTSA6-5K by SPC Multicomp is a Keypad Switch.
Keypad Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for MCDTSA6-5K
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
80K8276
|
Newark | Switch, Tactile Spst-No 50Ma, Solder Lug, Product Range:Mcdtsa-6 Series, Actuator Orientation:Side Actuated, Switch Mounting:Through Hole, Actuator Style:Round Button, Actuating Force:100Gf, Contact Rating:50Ma At 12Vdc, Ip Rating:- Rohs Compliant: Yes |Multicomp Pro MCDTSA6-5K RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 58146 |
|
$0.1360 / $0.2230 | Buy Now |
|
|
Bristol Electronics | 8925 |
|
RFQ |
Part Details for MCDTSA6-5K
MCDTSA6-5K CAD Models
MCDTSA6-5K Part Data Attributes
|
|
MCDTSA6-5K
SPC Multicomp
Buy Now
Datasheet
|
Compare Parts:
MCDTSA6-5K
SPC Multicomp
Keypad Switch, 1 Switches, SPST, Momentary-tactile, 0.05A, 12VDC, 0.981N, 4 PCB Hole Cnt, Solder Terminal, Through Hole-right Angle,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MULTICOMP PRO | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.90.40 | |
| Samacsys Manufacturer | Multicomp Pro | |
| Actuator Color | BLACK | |
| Actuator Material | THERMOPLASTIC NYLON | |
| Actuator Type | STEM | |
| Body Breadth | 6.55 mm | |
| Body Color | BLACK | |
| Body Height | 7.2 mm | |
| Body Length or Diameter | 7 mm | |
| Center Contact Material | PHOSPHOR BRONZE | |
| Center Contact Plating | SILVER | |
| Circuit Configuration | 1X1 | |
| Contact Current(DC)-Max | 0.05 A | |
| Contact (DC) Max Rating R Load | 0.05A@12VDC | |
| Contact Resistance | 0.1 mΩ | |
| Contact Voltage(DC)-Max | 12 V | |
| Dielectric Withstand Volts | 250VAC V | |
| Electrical Life | 500000 Cycle(s) | |
| End Contact Material | PHOSPHOR BRONZE | |
| End Contact Plating | SILVER | |
| Housing Material | STAINLESS STEEL | |
| Insulation Resistance | 10000000 Ω | |
| Insulator Material | THERMOPLASTIC NYLON | |
| Mounting Feature | THROUGH HOLE-RIGHT ANGLE | |
| Number of Switches | 1 | |
| Operating Force-Max | 0.981 N | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | -25 °C | |
| PCB Hole Count | 4 | |
| Solderability | HAND/WAVE | |
| Surface Mount | NO | |
| Switch Action | MOMENTARY | |
| Switch Function | SPST | |
| Switch Type | KEYPAD SWITCH | |
| Terminal Length | 0.138 inch | |
| Terminal Material | BRASS | |
| Termination Type | SOLDER |
