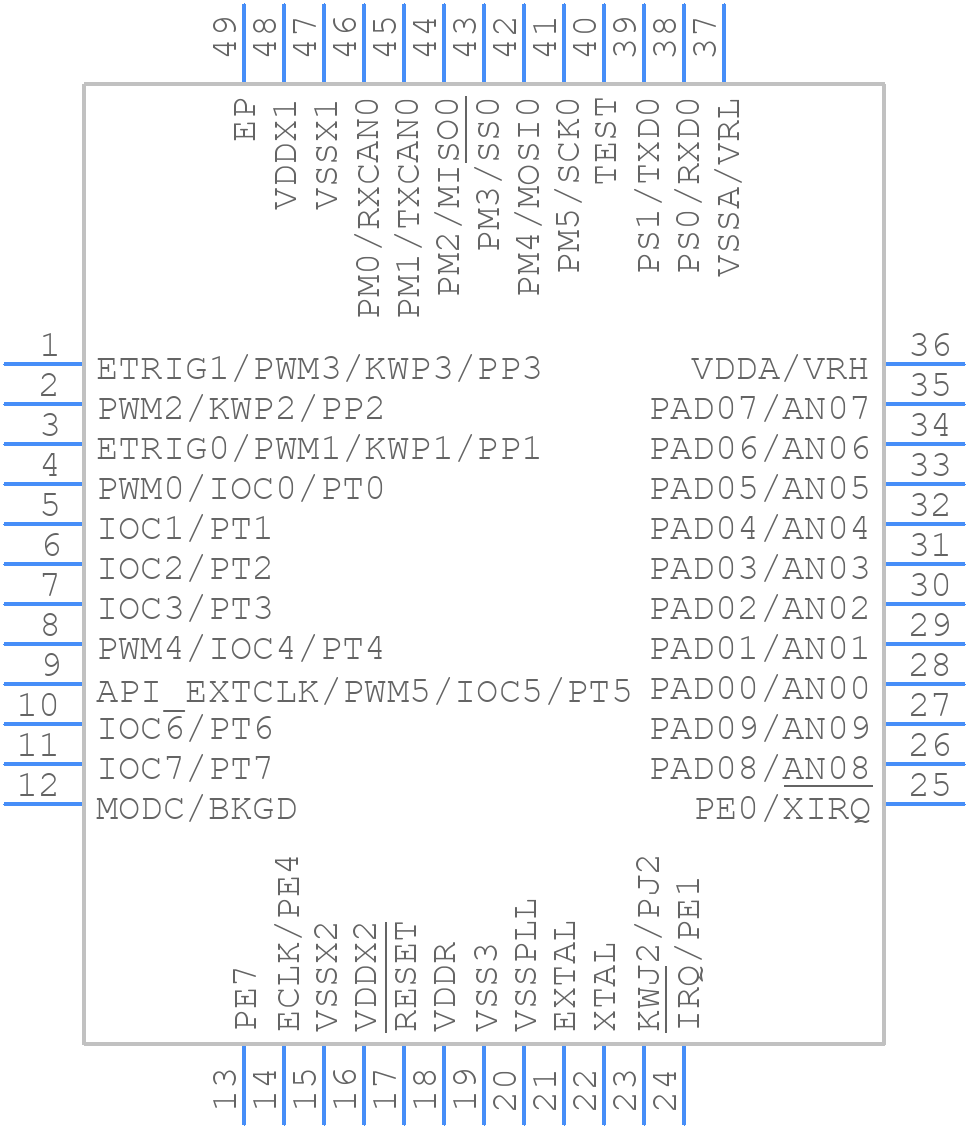

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MC9S12P96MFT by NXP Semiconductors
Results Overview of MC9S12P96MFT by NXP Semiconductors
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Transportation and Logistics
Automotive
MC9S12P96MFT Information
MC9S12P96MFT by NXP Semiconductors is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for MC9S12P96MFT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
27R1091
|
Newark | 16-Bit Mcu, S12 Core, 96Kb Flash, 32Mhz, -40/+125Degc, Qfn 48/ Tray Rohs Compliant: Yes |Nxp MC9S12P96MFT RoHS: Compliant Min Qty: 260 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$5.8200 / $6.0000 | Buy Now |
|
DISTI #
MC9S12P96MFT-ND
|
DigiKey | IC MCU 16BIT 96KB FLASH 48QFN Min Qty: 260 Lead time: 12 Weeks Container: Tray | Temporarily Out of Stock |
|
$6.1677 | Buy Now |
|
DISTI #
MC9S12P96MFT
|
Avnet Americas | MCU 16-bit HCS12 CISC 96KB Flash 5V 48-Pin QFN EP Tray - Trays (Alt: MC9S12P96MFT) RoHS: Compliant Min Qty: 780 Package Multiple: 260 Lead time: 12 Weeks, 0 Days Container: Tray | 0 |
|
$4.8792 / $5.7352 | Buy Now |
|
DISTI #
841-MC9S12P96MFT
|
Mouser Electronics | 16-bit Microcontrollers - MCU 16 BIT 96K FLASH RoHS: Compliant | 437 |
|
$5.9100 / $11.8200 | Buy Now |
|
DISTI #
86123516
|
Verical | MCU 16-bit HCS12 CISC 96KB Flash 5V 48-Pin QFN EP Tray RoHS: Compliant Min Qty: 54 Package Multiple: 1 Date Code: 2301 | Americas - 1820 |
|
$7.0375 | Buy Now |
|
|
Rochester Electronics | MC9S12P - HATCHFISH-16-bit MCU, 96KB Flash, 32MHz RoHS: Compliant Status: Active Min Qty: 1 | 1820 |
|
$4.5100 / $5.6300 | Buy Now |
|
DISTI #
MC9S12P96MFT
|
Avnet Silica | MCU 16bit HCS12 CISC 96KB Flash 5V 48Pin QFN EP Tray (Alt: MC9S12P96MFT) RoHS: Compliant Min Qty: 260 Package Multiple: 260 Lead time: 14 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
MC9S12P96MFT
|
EBV Elektronik | MCU 16bit HCS12 CISC 96KB Flash 5V 48Pin QFN EP Tray (Alt: MC9S12P96MFT) RoHS: Compliant Min Qty: 260 Package Multiple: 260 Lead time: 14 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Flip Electronics | Stock | 2860 |
|
RFQ |
Part Details for MC9S12P96MFT
MC9S12P96MFT CAD Models
MC9S12P96MFT Part Data Attributes
|
|
MC9S12P96MFT
NXP Semiconductors
Buy Now
Datasheet
|
Compare Parts:
MC9S12P96MFT
NXP Semiconductors
16-BIT, FLASH, 32MHz, MICROCONTROLLER, QCC48
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NXP SEMICONDUCTORS | |
| Package Description | QFN-48 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | NXP | |
| Has ADC | YES | |
| Address Bus Width | ||
| Bit Size | 16 | |
| CPU Family | CPU12 | |
| Clock Frequency-Max | 16 MHz | |
| DAC Channels | NO | |
| DMA Channels | NO | |
| External Data Bus Width | ||
| JESD-30 Code | S-XQCC-N48 | |
| JESD-609 Code | e3 | |
| Length | 7 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of I/O Lines | 34 | |
| Number of Terminals | 48 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | UNSPECIFIED | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC48,.27SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 6144 | |
| ROM (words) | 98304 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 1 mm | |
| Speed | 32 MHz | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 3.13 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Width | 7 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER |
