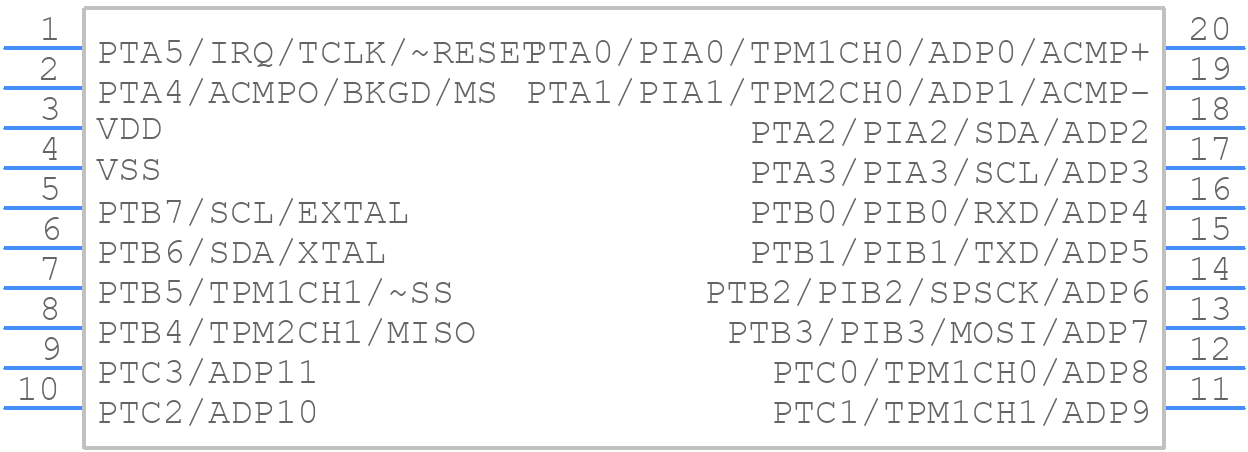

Part Symbol
-

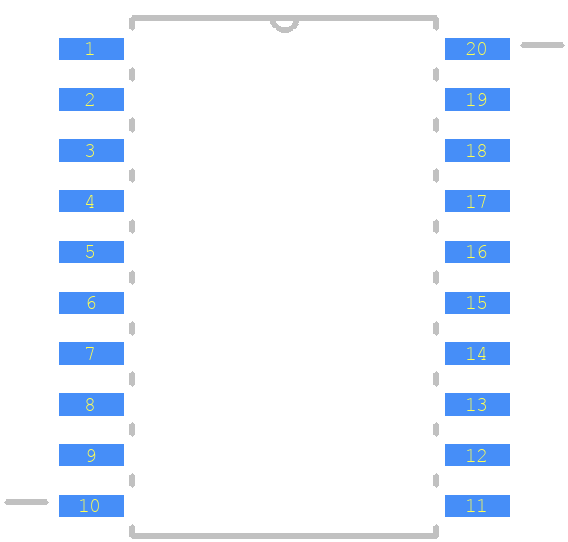

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MC9S08SH4CWJ by NXP Semiconductors
Results Overview of MC9S08SH4CWJ by NXP Semiconductors
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Automotive
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
MC9S08SH4CWJ Information
MC9S08SH4CWJ by NXP Semiconductors is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for MC9S08SH4CWJ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
74P0422
|
Newark | Microcontroller Mcu, 8 Bit, S08, 40Mhz, Soic-20, Product Range:S08 Family S08Sh Series Microcontrollers, Device Core:Hcs08, Operating Frequency Max:40Mhz, Program Memory Size:4Kb, No. Of Pins:20Pins, Ic Case/Package:Soic Rohs Compliant: Yes |Nxp MC9S08SH4CWJ RoHS: Compliant Min Qty: 38 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$2.3800 / $2.6200 | Buy Now |
|
DISTI #
MC9S08SH4CWJ-ND
|
DigiKey | IC MCU 8BIT 4KB FLASH 20SOIC Min Qty: 1 Lead time: 13 Weeks Container: Tube | Temporarily Out of Stock |
|
$2.3081 / $4.2200 | Buy Now |
|
DISTI #
MC9S08SH4CWJ
|
Avnet Americas | MCU 8-bit HCS08 CISC 4KB Flash 3.3V/5V 20-Pin SOIC W Rail - Rail/Tube (Alt: MC9S08SH4CWJ) RoHS: Compliant Min Qty: 38 Package Multiple: 1 Lead time: 13 Weeks, 0 Days Container: Tube | 0 |
|
$1.9301 / $2.0657 | Buy Now |
|
DISTI #
841-MC9S08SH4CWJ
|
Mouser Electronics | 8-bit Microcontrollers - MCU 5-volt 8-Bit MCU w/ comparator RoHS: Compliant | 0 |
|
$2.3000 / $4.2100 | Order Now |
|
DISTI #
MC9S08SH4CWJ
|
Avnet Silica | MCU 8bit HCS08 CISC 4KB Flash 33V5V 20Pin SOIC W Rail (Alt: MC9S08SH4CWJ) RoHS: Compliant Min Qty: 38 Package Multiple: 38 Lead time: 15 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
MC9S08SH4CWJ
|
EBV Elektronik | MCU 8bit HCS08 CISC 4KB Flash 33V5V 20Pin SOIC W Rail (Alt: MC9S08SH4CWJ) RoHS: Compliant Min Qty: 38 Package Multiple: 38 Lead time: 15 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for MC9S08SH4CWJ
MC9S08SH4CWJ CAD Models
MC9S08SH4CWJ Part Data Attributes
|
|
MC9S08SH4CWJ
NXP Semiconductors
Buy Now
Datasheet
|
Compare Parts:
MC9S08SH4CWJ
NXP Semiconductors
8-BIT, FLASH, 40MHz, MICROCONTROLLER, PDSO20
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NXP SEMICONDUCTORS | |
| Package Description | 1.27 MM PITCH, MS-013AC, SOIC-20 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 13 Weeks | |
| Samacsys Manufacturer | NXP | |
| Has ADC | YES | |
| Address Bus Width | ||
| Bit Size | 8 | |
| Clock Frequency-Max | 16 MHz | |
| DAC Channels | NO | |
| DMA Channels | NO | |
| External Data Bus Width | ||
| JESD-30 Code | R-PDSO-G20 | |
| JESD-609 Code | e3 | |
| Length | 12.8 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of I/O Lines | 18 | |
| Number of Terminals | 20 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP20,.4 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 256 | |
| ROM (words) | 4096 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 2.65 mm | |
| Speed | 40 MHz | |
| Supply Current-Max | 7.7 mA | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Width | 7.5 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER |
Alternate Parts for MC9S08SH4CWJ
This table gives cross-reference parts and alternative options found for MC9S08SH4CWJ. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MC9S08SH4CWJ, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MC9S08QB8CTG | NXP Semiconductors | $0.6821 | 8-BIT, FLASH, 20MHz, MICROCONTROLLER, PDSO16 | MC9S08SH4CWJ vs MC9S08QB8CTG |
| MC9S08SH8MWJR | NXP Semiconductors | $3.9150 | 8-BIT, FLASH, 40MHz, MICROCONTROLLER, PDSO20 | MC9S08SH4CWJ vs MC9S08SH8MWJR |
| MC9S08SH8MTG | Freescale Semiconductor | Check for Price | 8-BIT, FLASH, 40MHz, MICROCONTROLLER, PDSO16, 0.65 MM PITCH, TSSOP-20 | MC9S08SH4CWJ vs MC9S08SH8MTG |
| MB95F222HPF-G-SNE1 | Cypress Semiconductor | Check for Price | Microcontroller, 8-Bit, FLASH, F2MC-8 CPU, 16.25MHz, CMOS, PDSO16, SOP-16 | MC9S08SH4CWJ vs MB95F222HPF-G-SNE1 |
| MC9S08LC36CLK | Freescale Semiconductor | Check for Price | 8-BIT, FLASH, 16MHz, MICROCONTROLLER, PQFP80, 12 X 12 MM, 1 MM HEIGHT, ROHS COMPLIANT, LQFP-80 | MC9S08SH4CWJ vs MC9S08LC36CLK |
| MB95F282HPF-G-SNE1 | Cypress Semiconductor | Check for Price | Microcontroller, 8-Bit, FLASH, F2MC-8 CPU, 32.5MHz, CMOS, PDSO16, SOP-16 | MC9S08SH4CWJ vs MB95F282HPF-G-SNE1 |
| S9S08QD4MSC | Freescale Semiconductor | Check for Price | 8-BIT, FLASH, 16MHz, MICROCONTROLLER, PDSO8, ROHS COMPLIANT, MS-012AA, SOIC-8 | MC9S08SH4CWJ vs S9S08QD4MSC |
| MC9S08SH8CWJ | Freescale Semiconductor | Check for Price | 8-BIT, FLASH, 40MHz, MICROCONTROLLER, PDSO20, 1.27 MM PITCH, MS-013AC, SOIC-20 | MC9S08SH4CWJ vs MC9S08SH8CWJ |
| MB95F284HPF-G-SNE1 | Spansion | Check for Price | Microcontroller, 8-Bit, FLASH, 32.5MHz, CMOS, PDSO16, 10.15 X 5.30 MM, 2.25 MM HEIGHT, 1.27 MM PITCH, PLASTIC, SOP-16 | MC9S08SH4CWJ vs MB95F284HPF-G-SNE1 |
| MC9S08SH8MSCR | Freescale Semiconductor | Check for Price | MICROCONTROLLER, PDSO8, MS-012AA, SOIC-8 | MC9S08SH4CWJ vs MC9S08SH8MSCR |
MC9S08SH4CWJ Frequently Asked Questions (FAQ)
-
The maximum clock frequency of the MC9S08SH4CWJ is 20 MHz.
-
The MC9S08SH4CWJ has 32 KB of flash memory.
-
No, the MC9S08SH4CWJ is a 3.3V device and should not be operated at 5V.
-
Yes, the MC9S08SH4CWJ has a built-in oscillator that can be used as a clock source.
-
The MC9S08SH4CWJ has one UART.
