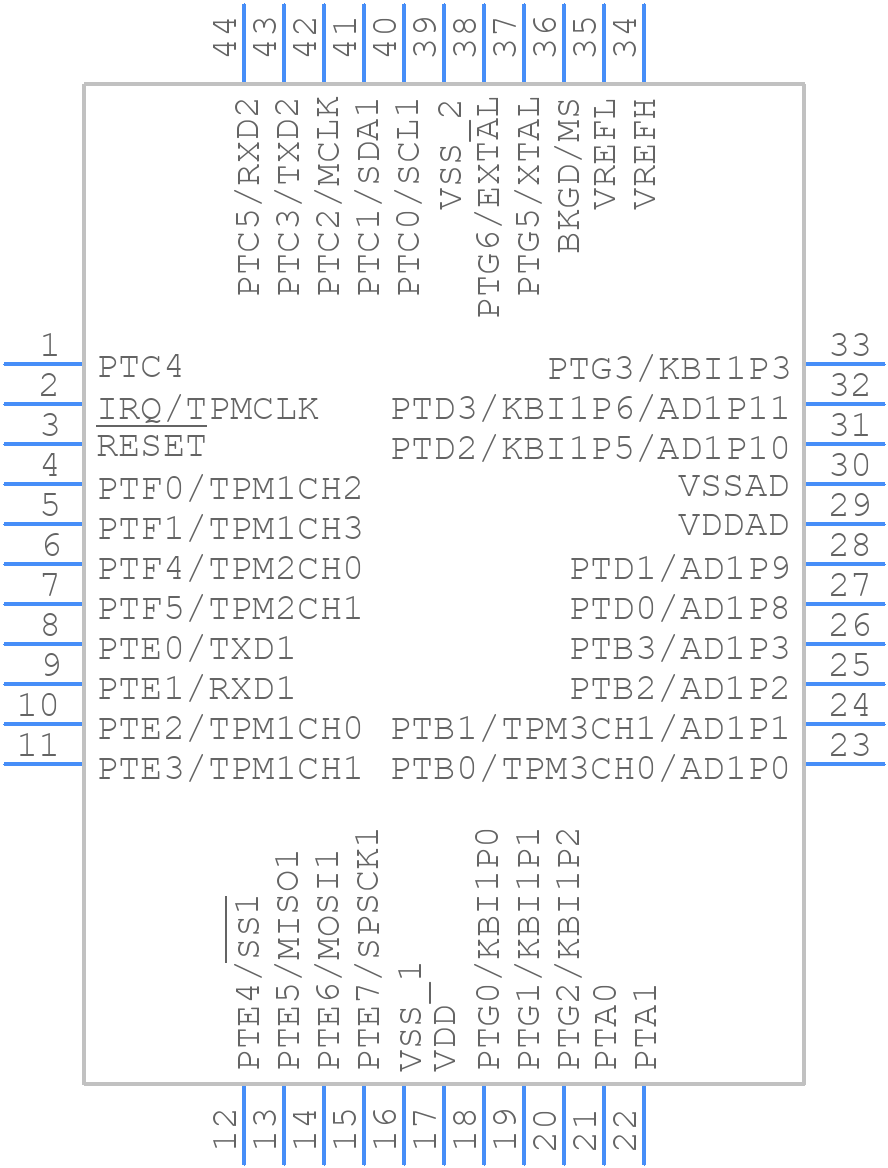

Part Symbol
-

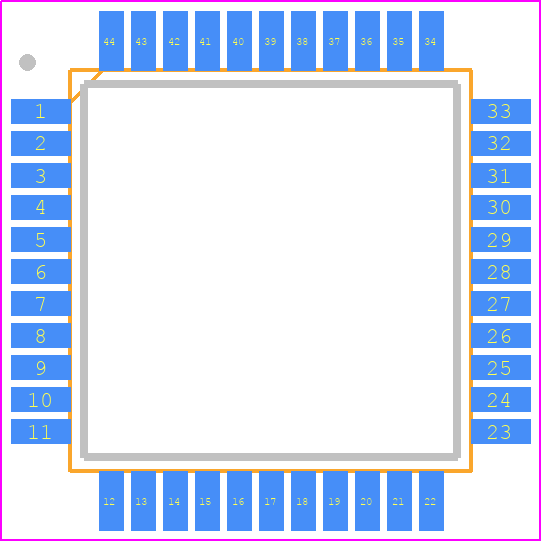

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MC9S08AC60CFGE by NXP Semiconductors
Results Overview of MC9S08AC60CFGE by NXP Semiconductors
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MC9S08AC60CFGE Information
MC9S08AC60CFGE by NXP Semiconductors is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for MC9S08AC60CFGE
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
11N8067
|
Newark | 8 Bit Microcontroller, Flexis - S08Ac, 40 Mhz, 60 Kb, 2 Kb, 44, Lqfp Rohs Compliant: Yes |Nxp MC9S08AC60CFGE RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$5.1800 / $6.1600 | Buy Now |
|
DISTI #
MC9S08AC60CFGE-ND
|
DigiKey | IC MCU 8BIT 60KB FLASH 44LQFP Min Qty: 1 Lead time: 13 Weeks Container: Tray |
6571 In Stock |
|
$4.6512 / $7.2900 | Buy Now |
|
DISTI #
MC9S08AC60CFGE
|
Avnet Americas | - Trays (Alt: MC9S08AC60CFGE) RoHS: Compliant Min Qty: 800 Package Multiple: 800 Lead time: 13 Weeks, 0 Days Container: Tray | 0 |
|
$4.2864 / $4.4648 | Buy Now |
|
DISTI #
841-MC9S08AC60CFGE
|
Mouser Electronics | 8-bit Microcontrollers - MCU 8B 60K FLASH 8K RAM RoHS: Compliant | 631 |
|
$4.6500 / $6.8600 | Buy Now |
|
|
Rochester Electronics | Microcontroller, 8-Bit, HC08/S08 CPU, FLASH, 40MHz, CMOS, PQFP44 RoHS: Compliant Status: Active Min Qty: 1 | 355 |
|
$3.9200 / $4.9000 | Buy Now |
|
DISTI #
MC9S08AC60CFGE
|
IBS Electronics | S08 S08 MICROCONTROLLER IC 8-BIT 40MHZ 60KB (60K X 8) FLASH 44-LQFP (10X10) Min Qty: 1600 Package Multiple: 1 | 0 |
|
$6.1100 / $6.6560 | Buy Now |
|
DISTI #
MC9S08AC60CFGE
|
Avnet Silica | (Alt: MC9S08AC60CFGE) RoHS: Compliant Min Qty: 160 Package Multiple: 160 Lead time: 15 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
MC9S08AC60CFGE
|
EBV Elektronik | (Alt: MC9S08AC60CFGE) RoHS: Compliant Min Qty: 160 Package Multiple: 160 Lead time: 15 Weeks, 0 Days | EBV - 960 |
|
Buy Now |
Part Details for MC9S08AC60CFGE
MC9S08AC60CFGE CAD Models
MC9S08AC60CFGE Part Data Attributes
|
|
MC9S08AC60CFGE
NXP Semiconductors
Buy Now
Datasheet
|
Compare Parts:
MC9S08AC60CFGE
NXP Semiconductors
8-BIT, FLASH, 40MHz, MICROCONTROLLER, PQFP44
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NXP SEMICONDUCTORS | |
| Package Description | 10 X 10 MM, 1.40 MM HEIGHT, 0.80 MM PITCH, ROHS COMPLIANT, PLASTIC, MS-026BCB, LQFP-44 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 13 Weeks | |
| Samacsys Manufacturer | NXP | |
| Has ADC | YES | |
| Address Bus Width | ||
| Bit Size | 8 | |
| Boundary Scan | NO | |
| Clock Frequency-Max | 16 MHz | |
| DAC Channels | NO | |
| DMA Channels | NO | |
| External Data Bus Width | ||
| JESD-30 Code | S-PQFP-G44 | |
| JESD-609 Code | e3 | |
| Length | 10 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of I/O Lines | 34 | |
| Number of Terminals | 44 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LQFP | |
| Package Equivalence Code | QFP44,.47SQ,32 | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, LOW PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 2048 | |
| ROM (words) | 63280 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 1.6 mm | |
| Speed | 40 MHz | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 2.7 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.8 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Width | 10 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER |
Alternate Parts for MC9S08AC60CFGE
This table gives cross-reference parts and alternative options found for MC9S08AC60CFGE. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MC9S08AC60CFGE, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MC9S08AC60MFGE | NXP Semiconductors | $51.7924 | 8-BIT, FLASH, 40MHz, MICROCONTROLLER, PQFP44 | MC9S08AC60CFGE vs MC9S08AC60MFGE |
