Part Details for MC9RS08KA4CWGR by NXP Semiconductors

Results Overview of MC9RS08KA4CWGR by NXP Semiconductors

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

MC9RS08KA4CWGR Information

MC9RS08KA4CWGR by NXP Semiconductors is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for MC9RS08KA4CWGR

Part # Distributor Description Stock Price Buy
DISTI # 68R9233
Newark Rs08Ka 8-Bit Mcu, Rs08 Core, 4Kb Flash, 20Mhz, Soic 16/ Reel Rohs Compliant: Yes |Nxp MC9RS08KA4CWGR RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 1,000 $1.4700
  • 2,500 $1.1800
  • 5,000 $1.1500
$1.1500 / $1.4700 Buy Now
DISTI # MC9RS08KA4CWGR-ND
DigiKey IC MCU 8BIT 4KB FLASH 16SOIC Min Qty: 1000 Lead time: 13 Weeks Container: Tape & Reel (TR) Temporarily Out of Stock
  • 1,000 $1.2583
$1.2583 Buy Now
DISTI # MC9RS08KA4CWGR
Avnet Americas MCU 8-bit RS08 CISC 4KB Flash 2.5V/3.3V/5V 16-Pin SOIC W T/R - Tape and Reel (Alt: MC9RS08KA4CWGR) RoHS: Compliant Min Qty: 3000 Package Multiple: 1000 Lead time: 13 Weeks, 0 Days Container: Reel 0
  • 3,000 $1.0571
  • 5,000 $1.0395
  • 8,000 $1.0219
  • 15,000 $1.0132
  • 30,000 $1.0080
$1.0080 / $1.0571 Buy Now
DISTI # 841-MC9RS08KA4CWGR
Mouser Electronics 8-bit Microcontrollers - MCU 9RS08KA8 16SOIC RoHS: Compliant 5300
  • 1 $3.5900
  • 10 $2.3600
  • 25 $2.1900
  • 100 $1.9000
  • 250 $1.7800
  • 500 $1.5600
  • 1,000 $1.2400
  • 4,000 $1.2000
$1.2000 / $3.5900 Buy Now
DISTI # MC9RS08KA4CWGR
Avnet Silica MCU 8bit RS08 CISC 4KB Flash 25V33V5V 16Pin SOIC W TR (Alt: MC9RS08KA4CWGR) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 15 Weeks, 0 Days Silica - 1000
Buy Now
DISTI # MC9RS08KA4CWGR
EBV Elektronik MCU 8bit RS08 CISC 4KB Flash 25V33V5V 16Pin SOIC W TR (Alt: MC9RS08KA4CWGR) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 15 Weeks, 0 Days EBV - 0
Buy Now

Part Details for MC9RS08KA4CWGR

MC9RS08KA4CWGR CAD Models

  • Part Symbol

    Part Symbol

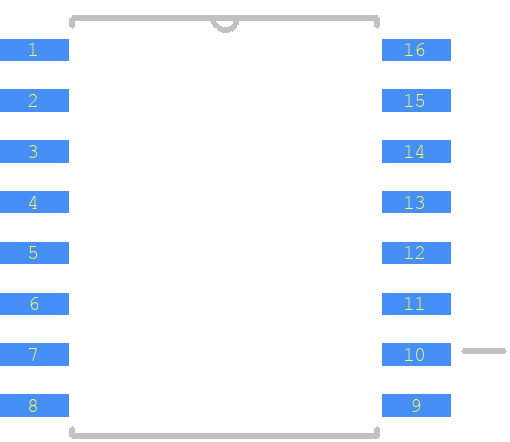

  • Footprint

    footprint

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MC9RS08KA4CWGR Part Data Attributes

Parametric Data
MC9RS08KA4CWGR NXP Semiconductors
Buy Now Datasheet
Compare Parts:
MC9RS08KA4CWGR NXP Semiconductors IC,MICROCONTROLLER,8-BIT,SOP,16PIN,PLASTIC
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer NXP SEMICONDUCTORS
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Factory Lead Time 13 Weeks
Samacsys Manufacturer NXP
Has ADC YES
Address Bus Width
Bit Size 8
Boundary Scan NO
Clock Frequency-Max 16 MHz
DAC Channels NO
DMA Channels NO
External Data Bus Width
JESD-30 Code R-PDSO-G16
JESD-609 Code e3
Length 10.3 mm
Moisture Sensitivity Level 3
Number of I/O Lines 16
Number of Terminals 16
On Chip Program ROM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP16,.4
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
RAM (bytes) 126
ROM (words) 4096
ROM Programmability FLASH
Speed 10 MHz
Supply Voltage-Max 5.5 V
Supply Voltage-Min 2 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Temperature Grade INDUSTRIAL
Terminal Finish Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 40
Width 7.5 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for MC9RS08KA4CWGR

This table gives cross-reference parts and alternative options found for MC9RS08KA4CWGR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MC9RS08KA4CWGR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MC9RS08KA4CWGR Freescale Semiconductor Check for Price RS08KA 8-bit MCU, RS08 core, 4KB Flash, 20MHz, SOIC 16 MC9RS08KA4CWGR vs MC9RS08KA4CWGR

MC9RS08KA4CWGR Related Parts

MC9RS08KA4CWGR Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the MC9RS08KA4CWGR is 20 MHz.

  • The MC9RS08KA4CWGR has 4 KB of flash memory.

  • The operating voltage range of the MC9RS08KA4CWGR is 2.7V to 5.5V.

  • No, the MC9RS08KA4CWGR does not have built-in EEPROM. However, it has a 128-byte non-volatile storage area that can be used to store data.

  • The maximum current consumption of the MC9RS08KA4CWGR is 10 mA at 20 MHz and 3.6V.
