MC79M12BTG Information
MC79M12BTG by onsemi is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MC79M12BTG
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
26AM3890
|
Newark | Ana 500Ma 12V Negati Vreg Rohs Compliant: Yes |Onsemi MC79M12BTG RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 700 |
|
$0.2280 | Buy Now |
|
DISTI #
30AC9876
|
Newark | Ldo, Fixed, -12V, 0.5A, To-220-3, Output Type:Fixed, Input Voltage Min:-, Input Voltage Max:-35V, Fixed Output Voltage Nom.:-12V, Adjustable Output Voltage Min:-, Adjustable Output Voltage Max:-, Output Current:500Ma, Dropout Voltagerohs Compliant: Yes |Onsemi MC79M12BTG RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 582 |
|
$0.4810 / $1.5600 | Buy Now |
|
DISTI #
MC79M12BTGOS-ND
|
DigiKey | IC REG LINEAR -12V 500MA TO220 Min Qty: 1 Lead time: 9 Weeks Container: Tube |
601 In Stock |
|
$0.3230 / $0.7200 | Buy Now |
|
DISTI #
MC79M12BTG
|
Avnet Americas | LDO Regulator Neg -12V 0.5A 3-Pin(3+Tab) TO-220 Rail - Rail/Tube (Alt: MC79M12BTG) RoHS: Compliant Min Qty: 50 Package Multiple: 1 Lead time: 9 Weeks, 0 Days Container: Tube | 700 |
|
RFQ | |
|
DISTI #
863-MC79M12BTG
|
Mouser Electronics | Linear Voltage Regulators 12V 500mA Negative RoHS: Compliant | 1698 |
|
$0.3140 / $1.3900 | Buy Now |
|
DISTI #
V99:2348_07310089
|
Arrow Electronics | Standard Regulator Neg -12V 0.5A 3-Pin(3+Tab) TO-220 Tube Min Qty: 1 Package Multiple: 1 Lead time: 9 Weeks Date Code: 2332 | Americas - 1633 |
|
$0.2811 / $0.3177 | Buy Now |
|
DISTI #
E02:0323_00292500
|
Arrow Electronics | Standard Regulator Neg -12V 0.5A 3-Pin(3+Tab) TO-220 Tube Min Qty: 50 Package Multiple: 50 Lead time: 9 Weeks Date Code: 2417 | Europe - 200 |
|
$0.3499 / $0.5392 | Buy Now |
|
DISTI #
V72:2272_26884795
|
Arrow Electronics | Standard Regulator Neg -12V 0.5A 3-Pin(3+Tab) TO-220 Tube Min Qty: 1 Package Multiple: 1 Lead time: 9 Weeks Date Code: 2218 Container: Cut Strips | Americas - 111 |
|
$0.4451 / $0.4603 | Buy Now |
|
DISTI #
P40:2555_11857941
|
Arrow Electronics | Standard Regulator Neg -12V 0.5A 3-Pin(3+Tab) TO-220 Tube Min Qty: 1 Package Multiple: 1 Lead time: 98 Weeks Date Code: 2224 | Europe - 28 |
|
$0.2025 / $0.2028 | Buy Now |
|
DISTI #
V79:2366_22403079
|
Arrow Electronics | Standard Regulator Neg -12V 0.5A 3-Pin(3+Tab) TO-220 Tube Min Qty: 1 Package Multiple: 1 Date Code: 2223 | Americas - 9 |
|
$0.2358 / $0.4407 | Buy Now |
Part Details for MC79M12BTG

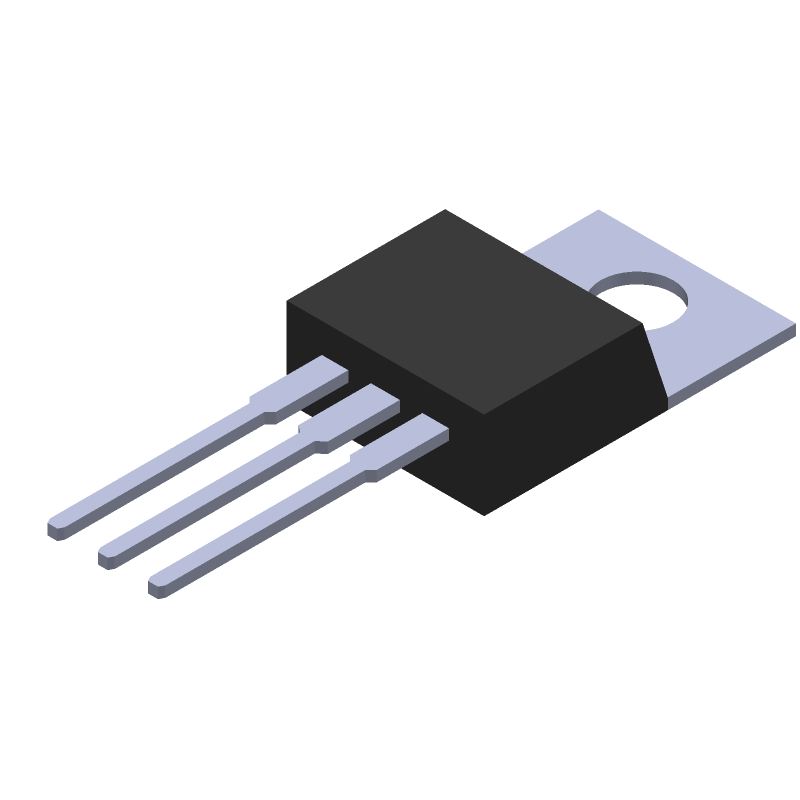

MC79M12BTG CAD Models
MC79M12BTG Part Data Attributes
|
|
MC79M12BTG
onsemi
Buy Now
Datasheet
|
Compare Parts:
MC79M12BTG
onsemi
LDO Regulator, 500 mA, 5 V, Negative 4%; TJ = -40°C to +125°C, TO-220, SINGLE GAUGE, 3-LEAD, 50-TUBE
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | TO-220, SINGLE GAUGE, 3-LEAD | |
| Package Description | TO-220, 3 PIN | |
| Pin Count | 3 | |
| Manufacturer Package Code | 221AB | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 9 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Adjustability | FIXED | |
| Dropout Voltage1-Nom | 1.1 V | |
| Input Voltage Absolute-Max | 35 V | |
| Input Voltage-Max | 30 V | |
| Input Voltage-Min | 14.5 V | |
| JESD-30 Code | R-XSFM-T3 | |
| JESD-609 Code | e3 | |
| Line Regulation-Max | 0.08% | |
| Load Regulation-Max | 0.24% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Output Current1-Max | 0.5 A | |
| Output Voltage1-Max | 12.6 V | |
| Output Voltage1-Min | 11.4 V | |
| Output Voltage1-Nom | 12 V | |
| Package Body Material | UNSPECIFIED | |
| Package Code | SFM | |
| Package Equivalence Code | SIP3,.1TB | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Packing Method | RAIL | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR | |
| Surface Mount | NO | |
| Technology | BIPOLAR | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | SINGLE | |
| Voltage Tolerance-Max | 4% |
