MC79L15ACLP Information

MC79L15ACLP by Texas Instruments is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for MC79L15ACLP

Part # Distributor Description Stock Price Buy
DISTI # 3008079
Farnell REGULATOR, LDO, FIXED, -15V, TO-92-3 RoHS: Compliant Min Qty: 1 Lead time: 53 Weeks, 2 Days Container: Each 370
  • 1 $1.3672
  • 10 $1.1702
  • 50 $0.9879
  • 100 $0.8042
  • 250 $0.7882
$0.7882 / $1.3672 Buy Now
DISTI # 2156-MC79L15ACLP-ND
DigiKey IC REG LINEAR -15V 100MA TO92-3 Min Qty: 1 Lead time: 12 Weeks Container: Bulk MARKETPLACE PRODUCT 80930
In Stock
  • 441 $0.6800
$0.6800 Buy Now
DISTI # 296-9607-ND
DigiKey IC REG LINEAR -15V 100MA TO92-3 Min Qty: 1 Lead time: 12 Weeks Container: Bulk 3423
In Stock
  • 1 $1.2300
  • 10 $0.8940
  • 25 $0.8092
  • 100 $0.7160
  • 250 $0.6714
  • 500 $0.6446
  • 1,000 $0.6225
  • 3,000 $0.5952
$0.5952 / $1.2300 Buy Now
DISTI # 595-MC79L15ACLP
Mouser Electronics Linear Voltage Regulators 15V Fixed Neg RoHS: Compliant 3436
  • 1 $1.1300
  • 10 $0.8190
  • 25 $0.7410
  • 100 $0.6540
  • 250 $0.6130
  • 500 $0.5880
  • 1,000 $0.5530
$0.5530 / $1.1300 Buy Now
DISTI # 86004887
Verical LDO Regulator Neg -15V 0.1A 3-Pin TO-92 Bulk RoHS: Compliant Min Qty: 458 Package Multiple: 1 Americas - 1988
  • 458 $0.8191
$0.8191 Buy Now
Rochester Electronics MC79L 3-pin, 100mA, Fixed Negative Voltage Regulator RoHS: Compliant Status: Active Min Qty: 1 80930
  • 100 $0.6553
  • 500 $0.5898
  • 1,000 $0.5439
  • 10,000 $0.4849
  • 100,000 $0.4063
$0.4063 / $0.6553 Buy Now
DISTI # MC79L15ACLP
TME IC: voltage regulator, fixed, -15V, 0.1A, TO92, THT, bulk, Ch: 1 Min Qty: 1 170
  • 1 $0.7180
  • 5 $0.6620
  • 25 $0.5700
  • 100 $0.5050
  • 250 $0.4400
$0.4400 / $0.7180 Buy Now

Part Details for MC79L15ACLP

MC79L15ACLP CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

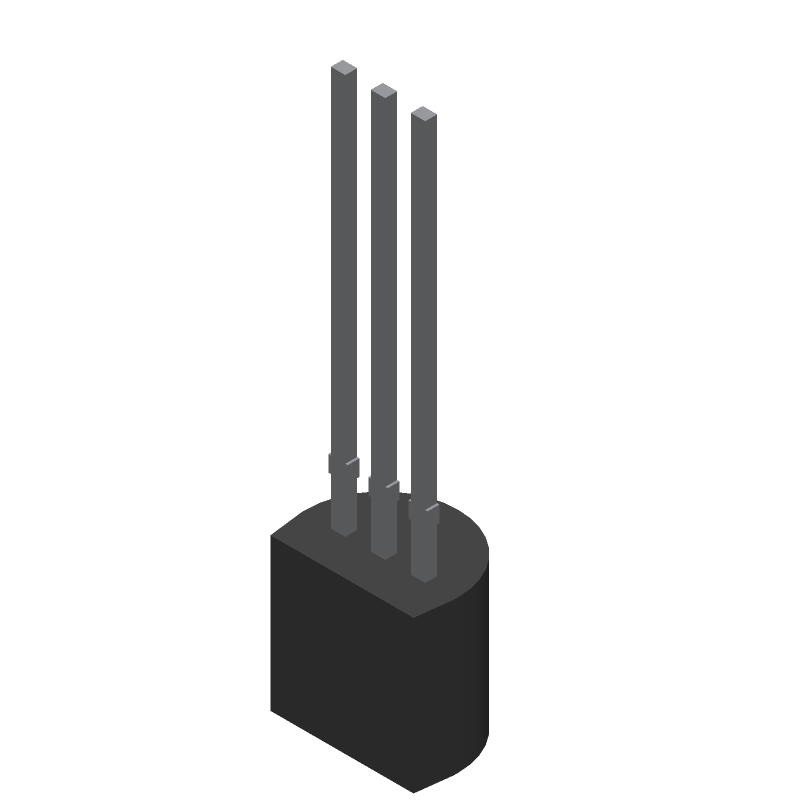

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MC79L15ACLP Part Data Attributes

Parametric Data
MC79L15ACLP Texas Instruments
Buy Now Datasheet
Compare Parts:
MC79L15ACLP Texas Instruments 100-mA, negative linear voltage regulator 3-TO-92 0 to 125
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TEXAS INSTRUMENTS INC
Part Package Code TO-92
Package Description PLASTIC, TO-92, 3 PIN
Pin Count 3
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Texas Instruments
Adjustability FIXED
Dropout Voltage1-Nom 1.7 V
Input Voltage Absolute-Max 35 V
Input Voltage-Max 30 V
Input Voltage-Min 17.5 V
JESD-30 Code O-PBCY-T3
JESD-609 Code e3
Length 4.3 mm
Line Regulation-Max 0.3%
Load Regulation-Max 0.15%
Number of Functions 1
Number of Outputs 1
Number of Terminals 3
Operating Temperature TJ-Max 125 °C
Operating Temperature TJ-Min
Output Current1-Max 0.1 A
Output Voltage1-Max 15.75 V
Output Voltage1-Min 14.25 V
Output Voltage1-Nom 15 V
Package Body Material PLASTIC/EPOXY
Package Code TO-92
Package Equivalence Code SIP3,.1,50
Package Shape ROUND
Package Style CYLINDRICAL
Packing Method BULK
Qualification Status Not Qualified
Regulator Type FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR
Seated Height-Max 5.34 mm
Surface Mount NO
Technology BIPOLAR
Terminal Finish Matte Tin (Sn)
Terminal Form THROUGH-HOLE
Terminal Pitch 1.27 mm
Terminal Position BOTTOM
Voltage Tolerance-Max 5%
Width 4.3 mm
