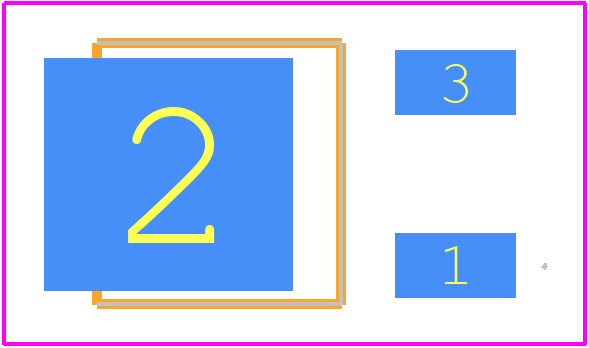

Footprint
-

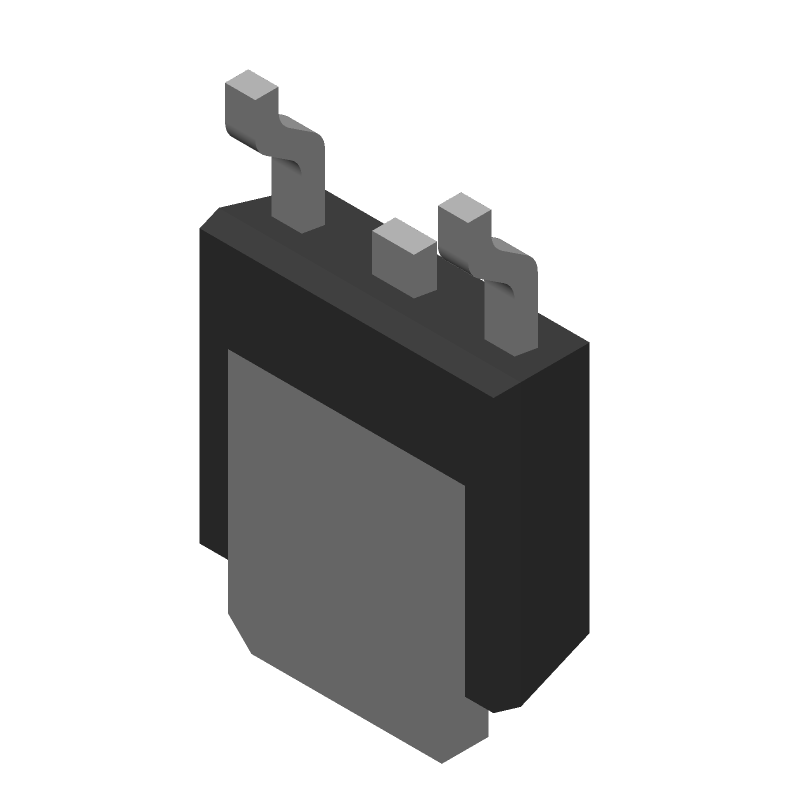

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MC78M12CDTRKG by onsemi
Results Overview of MC78M12CDTRKG by onsemi
- Distributor Offerings: (31 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MC78M12CDTRKG Information
MC78M12CDTRKG by onsemi is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MC78M12CDTRKG
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2822588RL
|
Farnell | LINEAR VOLT REG, 12V, 0.5A, TO-252-3 RoHS: Compliant Min Qty: 100 Lead time: 11 Weeks, 4 Days Container: Reel | 29778 |
|
$0.1818 / $0.3253 | Buy Now |
|
DISTI #
2822588
|
Farnell | LINEAR VOLT REG, 12V, 0.5A, TO-252-3 RoHS: Compliant Min Qty: 1 Lead time: 11 Weeks, 4 Days Container: Cut Tape | 29778 |
|
$0.1818 / $0.7706 | Buy Now |
|
DISTI #
MC78M12CDTRKGOSCT-ND
|
DigiKey | IC REG LINEAR 12V 500MA DPAK Min Qty: 1 Lead time: 5 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
9948 In Stock |
|
$0.1704 / $0.9200 | Buy Now |
|
DISTI #
MC78M12CDTRKG
|
Avnet Americas | Linear Voltage Regulator, Fixed, 12V/500 mA out - Tape and Reel (Alt: MC78M12CDTRKG) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 5 Weeks, 0 Days Container: Reel | 15000 |
|
$0.1103 / $0.1207 | Buy Now |
|
DISTI #
863-MC78M12CDTRKG
|
Mouser Electronics | Linear Voltage Regulators 12V 500mA Positive RoHS: Compliant | 55480 |
|
$0.1640 / $0.6500 | Buy Now |
|
DISTI #
V36:1790_07323035
|
Arrow Electronics | Standard Regulator Pos 12V 0.5A 3-Pin(2+Tab) DPAK T/R Min Qty: 2500 Package Multiple: 2500 Lead time: 5 Weeks Date Code: 2436 | Americas - 20000 |
|
$0.1101 / $0.1527 | Buy Now |
|
DISTI #
V72:2272_07323035
|
Arrow Electronics | Standard Regulator Pos 12V 0.5A 3-Pin(2+Tab) DPAK T/R Min Qty: 1 Package Multiple: 1 Lead time: 5 Weeks Date Code: 2437 Container: Cut Strips | Americas - 3317 |
|
$0.1542 / $0.6178 | Buy Now |
|
|
Future Electronics | MC78M00C Series 500 mA 12 V Fixed Output SMT LDO Voltage Regulator -DPAK RoHS: Compliant pbFree: Yes Min Qty: 2500 Package Multiple: 2500 Lead time: 5 Weeks Container: Reel | 35000Reel |
|
$0.1150 / $0.1210 | Buy Now |
|
|
Future Electronics | MC78M00C Series 500 mA 12 V Fixed Output SMT LDO Voltage Regulator -DPAK RoHS: Compliant pbFree: Yes Min Qty: 2500 Package Multiple: 2500 Lead time: 5 Weeks Container: Reel | 22500Reel |
|
$0.1150 / $0.1210 | Buy Now |
|
|
Onlinecomponents.com | Linear Voltage Regulator, 500 mA, 5 to 24 V, High PSRR, Positive Vout: 12 V, TJ = 0° to +125°C RoHS: Compliant |
10000 In Stock |
|
$0.1530 / $0.1618 | Buy Now |
Part Details for MC78M12CDTRKG
MC78M12CDTRKG CAD Models
MC78M12CDTRKG Part Data Attributes
|
|
MC78M12CDTRKG
onsemi
Buy Now
Datasheet
|
Compare Parts:
MC78M12CDTRKG
onsemi
Linear Voltage Regulator, 500 mA, 5 to 24 V, High PSRR, Positive Vout: 12 V; TJ = 0° to +125°C, DPAK (SINGLE GAUGE) TO-252, 2500-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | DPAK (SINGLE GAUGE) TO-252 | |
| Package Description | DPAK-3 | |
| Pin Count | 3 | |
| Manufacturer Package Code | 369C | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 5 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Adjustability | FIXED | |
| Dropout Voltage1-Nom | 2 V | |
| Input Voltage Absolute-Max | 35 V | |
| Input Voltage-Max | 30 V | |
| Input Voltage-Min | 14.5 V | |
| JESD-30 Code | R-PSSO-G2 | |
| JESD-609 Code | e3 | |
| Length | 6.54 mm | |
| Line Regulation-Max | 0.05% | |
| Load Regulation-Max | 0.24% | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | ||
| Output Current1-Max | 0.5 A | |
| Output Voltage1-Max | 12.6 V | |
| Output Voltage1-Min | 11.4 V | |
| Output Voltage1-Nom | 12 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TO-252 | |
| Package Equivalence Code | SMSIP3H,.38,90TB | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR | |
| Seated Height-Max | 2.51 mm | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 2.29 mm | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Voltage Tolerance-Max | 5% | |
| Width | 6.095 mm |
