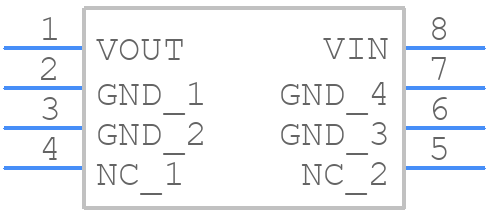

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MC78L12ABDR2G by onsemi
Results Overview of MC78L12ABDR2G by onsemi
- Distributor Offerings: (30 listings)
- Number of FFF Equivalents: (4 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MC78L12ABDR2G Information
MC78L12ABDR2G by onsemi is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MC78L12ABDR2G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
86AK1631
|
Newark | Ana 100Ma 12V Vreg, Fixed Output Voltage Nom.:12V, Adjustable Output Voltage Min:-, Adjustable Output Voltage Max:-, Input Voltage Min:-, Input Voltage Max:35V, Output Current:100Ma, Output Type:Fixed, Linear Regulator Case Rohs Compliant: Yes |Onsemi MC78L12ABDR2G RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 1 Container: Reel | 2500 |
|
$0.0970 / $0.1260 | Buy Now |
|
DISTI #
08AK6363
|
Newark | Ana 100Ma 12V Vreg/ Reel Rohs Compliant: Yes |Onsemi MC78L12ABDR2G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1985 |
|
$0.1110 / $0.1310 | Buy Now |
|
DISTI #
81Y6722
|
Newark | Linear Voltage Reg, 0.1A, 12V, Soic-8, Output Type:Fixed, No. Of Outputs:1Outputs, Output Voltage - Nom:12V, Output Voltage Min:-, Output Voltage Max:-, Input Voltage Min:-, Input Voltage Max:35V, Max Output Current:100Ma Rohs Compliant: Yes |Onsemi MC78L12ABDR2G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 771 |
|
$0.1150 / $0.1350 | Buy Now |
|
DISTI #
MC78L12ABDR2GOSCT-ND
|
DigiKey | IC REG LINEAR 12V 100MA 8-SOIC Min Qty: 1 Lead time: 9 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
8723 In Stock |
|
$0.0901 / $0.6300 | Buy Now |
|
DISTI #
08AK6363
|
Avnet Americas | Linear Voltage Regulator, Fixed, Positive, 14.5 V to 35 V, 12 V, 100 mA, 8 Pins, NSOIC - Product that comes on tape, but is not reeled (Alt: 08AK6363) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 53 Weeks, 4 Days Container: Ammo Pack | 1985 Partner Stock |
|
$0.1640 / $0.4470 | Buy Now |
|
DISTI #
81Y6722
|
Avnet Americas | Linear Voltage Regulator, Fixed, Positive, 14.5 V to 35 V, 12 V, 100 mA, 8 Pins, NSOIC - Product that comes on tape, but is not reeled (Alt: 81Y6722) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks, 3 Days Container: Ammo Pack | 771 Partner Stock |
|
$0.1640 / $0.4470 | Buy Now |
|
DISTI #
863-MC78L12ABDR2G
|
Mouser Electronics | Linear Voltage Regulators 12V 100mA Positive RoHS: Compliant | 32218 |
|
$0.1010 / $0.5400 | Buy Now |
|
DISTI #
V36:1790_07304460
|
Arrow Electronics | Standard Regulator Pos 12V 0.1A 8-Pin SOIC N T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 9 Weeks Date Code: 2434 | Americas - 25000 |
|
$0.0603 / $0.0908 | Buy Now |
|
DISTI #
V72:2272_07304460
|
Arrow Electronics | Standard Regulator Pos 12V 0.1A 8-Pin SOIC N T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 9 Weeks Date Code: 2331 Container: Cut Strips | Americas - 8954 |
|
$0.0917 / $0.5400 | Buy Now |
|
DISTI #
E02:0323_00018079
|
Arrow Electronics | Standard Regulator Pos 12V 0.1A 8-Pin SOIC N T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 9 Weeks Date Code: 2448 | Europe - 5000 |
|
$0.0642 / $0.0982 | Buy Now |
Part Details for MC78L12ABDR2G
MC78L12ABDR2G CAD Models
MC78L12ABDR2G Part Data Attributes
|
|
MC78L12ABDR2G
onsemi
Buy Now
Datasheet
|
Compare Parts:
MC78L12ABDR2G
onsemi
Linear Voltage Regulator, 100 mA, 5 to 24 V, Positive Vout: 12.0 V; TJ = -40°C to +125°C, SOIC-8 Narrow Body, 2500-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOIC-8 Narrow Body | |
| Pin Count | 8 | |
| Manufacturer Package Code | 751-07 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 53 Weeks, 4 Days | |
| Samacsys Manufacturer | onsemi | |
| Adjustability | FIXED | |
| Dropout Voltage1-Nom | 1.7 V | |
| Input Voltage Absolute-Max | 35 V | |
| Input Voltage-Max | 27 V | |
| Input Voltage-Min | 14.5 V | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Line Regulation-Max | 0.25% | |
| Load Regulation-Max | 0.1% | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Output Current1-Max | 0.1 A | |
| Output Voltage1-Max | 12.5 V | |
| Output Voltage1-Min | 11.5 V | |
| Output Voltage1-Nom | 12 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR | |
| Seated Height-Max | 1.75 mm | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tolerance-Max | 4.16% | |
| Width | 3.9 mm |
