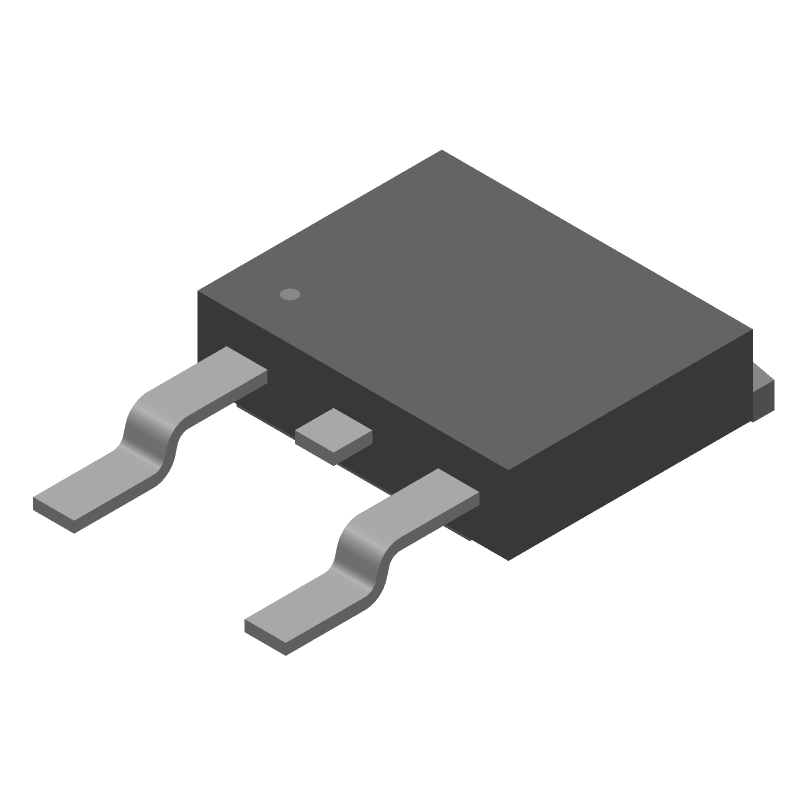

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MC7808CDTG by onsemi
Results Overview of MC7808CDTG by onsemi
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MC7808CDTG Information
MC7808CDTG by onsemi is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MC7808CDTG
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
V99:2348_07277449
|
Arrow Electronics | Standard Regulator Pos 8V 1A 3-Pin(2+Tab) DPAK Tube Min Qty: 1 Package Multiple: 1 Lead time: 99 Weeks Date Code: 2049 | Americas - 4 |
|
$0.1340 / $0.2338 | Buy Now |
|
|
Rochester Electronics | Fixed Positive Standard Regulator, 8VBIPolar, PSSO2 RoHS: Compliant Status: Obsolete Min Qty: 1 | 486 |
|
$0.1705 / $0.2750 | Buy Now |
|
|
ComSIT USA | Electronic Component RoHS: Compliant |
|
|
RFQ | |
|
DISTI #
MC7808CDTG
|
Avnet Silica | LDO Regulator Pos 8V 1A 3Pin2Tab DPAK Rail (Alt: MC7808CDTG) RoHS: Compliant Min Qty: 75 Package Multiple: 75 Lead time: 143 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
MC7808CDTG
|
EBV Elektronik | LDO Regulator Pos 8V 1A 3Pin2Tab DPAK Rail (Alt: MC7808CDTG) RoHS: Compliant Min Qty: 75 Package Multiple: 75 Lead time: 143 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Flip Electronics | Stock, ship today | 2550 |
|
RFQ |
Part Details for MC7808CDTG
MC7808CDTG CAD Models
MC7808CDTG Part Data Attributes
|
|
MC7808CDTG
onsemi
Buy Now
Datasheet
|
Compare Parts:
MC7808CDTG
onsemi
Linear Voltage Regulator, 1 A, 5 to 24 V, Positive Vout: 8.0 V; TJ = 0°C to +125°C, DPAK (SINGLE GAUGE) TO-252, 75-TUBE
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | DPAK (SINGLE GAUGE) TO-252 | |
| Package Description | DPAK-3/2 | |
| Pin Count | 3 | |
| Manufacturer Package Code | 369C | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 4 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Adjustability | FIXED | |
| Dropout Voltage1-Nom | 2 V | |
| Input Voltage Absolute-Max | 35 V | |
| Input Voltage-Max | 25 V | |
| Input Voltage-Min | 10.5 V | |
| JESD-30 Code | R-PSSO-G2 | |
| JESD-609 Code | e3 | |
| Length | 6.54 mm | |
| Line Regulation-Max | 0.032% | |
| Load Regulation-Max | 0.035% | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | ||
| Output Current1-Max | 1 A | |
| Output Voltage1-Max | 8.4 V | |
| Output Voltage1-Min | 7.6 V | |
| Output Voltage1-Nom | 8 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TO-252 | |
| Package Equivalence Code | SMSIP3H,.38,90TB | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG | |
| Packing Method | RAIL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR | |
| Seated Height-Max | 2.51 mm | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 2.29 mm | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tolerance-Max | 5% | |
| Width | 6.095 mm |
Alternate Parts for MC7808CDTG
This table gives cross-reference parts and alternative options found for MC7808CDTG. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MC7808CDTG, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MC7808CDTX | Fairchild Semiconductor Corporation | Check for Price | Fixed Positive Standard Regulator, 8VBIPolar, PSSO2, TO-252, DPAK-3 | MC7808CDTG vs MC7808CDTX |
| MC7808CDTT5 | onsemi | Check for Price | 8V FIXED POSITIVE REGULATOR, PSSO2, DPAK-3 | MC7808CDTG vs MC7808CDTT5 |
MC7808CDTG Frequently Asked Questions (FAQ)
-
The maximum input voltage that can be applied to the MC7808CDTG is 35V, but it's recommended to keep it below 25V for reliable operation.
-
The MC7808CDTG can supply up to 1A of output current, but it's recommended to keep it below 0.5A for reliable operation and to prevent overheating.
-
The dropout voltage of the MC7808CDTG is typically around 2V, which means the input voltage must be at least 2V higher than the output voltage for proper regulation.
-
The MC7808CDTG is rated for operation up to 125°C, but its performance may degrade at high temperatures. It's recommended to use a heat sink and ensure good airflow to keep the device within its operating temperature range.
-
To ensure the stability of the MC7808CDTG output voltage, it's recommended to use a minimum of 10uF capacitor at the input and a minimum of 10uF capacitor at the output, and to keep the input and output capacitors close to the device.
