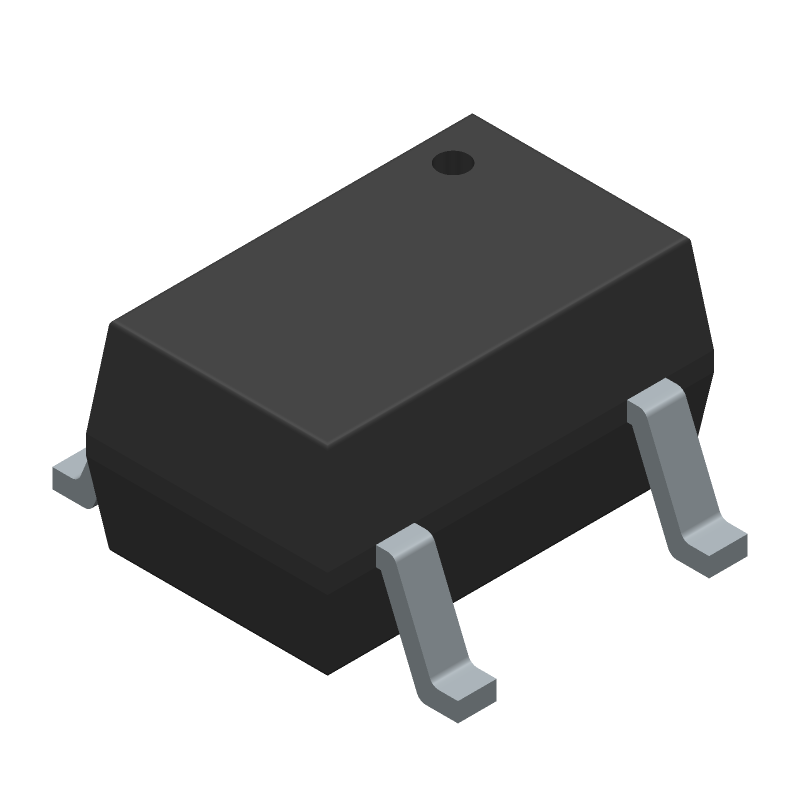

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MC74VHC1G09DFT1G by onsemi
Results Overview of MC74VHC1G09DFT1G by onsemi
- Distributor Offerings: (23 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MC74VHC1G09DFT1G Information
MC74VHC1G09DFT1G by onsemi is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for MC74VHC1G09DFT1G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
81Y6708
|
Newark | Logic, And, Single, Sot-353-5, Logic Function:And Gate, No. Of Elements:Single, No. Of Inputs:2Inputs, No. Of Pins:5Pins, Ic Case/Package:Sot-353, Product Range:74Vhc1G09, Logic Ic Family:74Vhc, Supply Voltage Min:2V Rohs Compliant: Yes |Onsemi MC74VHC1G09DFT1G RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 6655 |
|
$0.0540 / $0.2500 | Buy Now |
|
DISTI #
86AK1629
|
Newark | Logic, And, Single, Sot-353-5, Logic Family/Base Number:74Vhc1G09, Logic Type:And, Output Current:8Ma, No. Of Inputs:2, Supply Voltage Min:2V, Supply Voltage Max:5.5V, Logic Case Style:Sot-353, No. Of Pins:5Pins, Logic Ic Rohs Compliant: Yes |Onsemi MC74VHC1G09DFT1G RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 1 Container: Reel | 3000 |
|
$0.0340 / $0.0420 | Buy Now |
|
DISTI #
MC74VHC1G09DFT1GOSCT-ND
|
DigiKey | IC GATE AND 1CH 2-INP SC88A Min Qty: 1 Lead time: 6 Weeks Container: Tape & Reel (TR), Digi-Reel®, Cut Tape (CT) |
9787 In Stock |
|
$0.0269 / $0.1000 | Buy Now |
|
DISTI #
MC74VHC1G09DFT1G
|
Avnet Americas | Logic IC, AND Gate, Single, 2 Inputs, 5 Pins, SOT-353, 74VHC1G09 - Tape and Reel (Alt: MC74VHC1G09DFT1G) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 6 Weeks, 0 Days Container: Reel | 21000 |
|
$0.0214 / $0.0234 | Buy Now |
|
DISTI #
863-MC74VHC1G09DFT1G
|
Mouser Electronics | Logic Gates 2-5.5V Single AND 2-Input w/Open Drain RoHS: Compliant | 12089 |
|
$0.0280 / $0.2800 | Buy Now |
|
DISTI #
E02:0323_00075902
|
Arrow Electronics | AND Gate 1-Element 2-IN CMOS 5-Pin SC-88A T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 6 Weeks Date Code: 2403 | Europe - 3000 |
|
$0.0215 | Buy Now |
|
|
Future Electronics | MC74VHC1G09 Series 2 to 5.5 V Single 2 Input AND Gate w/Open Drain - SC-70-5 RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 6 Weeks Container: Reel | 27000Reel |
|
$0.0209 / $0.0229 | Buy Now |
|
|
Future Electronics | MC74VHC1G09 Series 2 to 5.5 V Single 2 Input AND Gate w/Open Drain - SC-70-5 RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Container: Cut Tape/Mini-Reel | 3Cut Tape/Mini-Reel |
|
$0.0470 / $0.1660 | Buy Now |
|
|
Onlinecomponents.com | MC74VHC1G09 Series 2 to 5.5 V Single 2 Input AND Gate w/Open Drain - SC-70-5 RoHS: Compliant | 0 |
|
$0.0218 / $0.0260 | Buy Now |
|
DISTI #
80575893
|
Verical | AND Gate 1-Element 2-IN CMOS 5-Pin SC-88A T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Date Code: 2403 | Americas - 3000 |
|
$0.0218 | Buy Now |
Part Details for MC74VHC1G09DFT1G
MC74VHC1G09DFT1G CAD Models
MC74VHC1G09DFT1G Part Data Attributes
|
|
MC74VHC1G09DFT1G
onsemi
Buy Now
Datasheet
|
Compare Parts:
MC74VHC1G09DFT1G
onsemi
Single 2-Input AND Gate, Open Drain, SC-88A (SC-70-5 / SOT-353), 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SC-88A (SC-70-5 / SOT-353) | |
| Pin Count | 5 | |
| Manufacturer Package Code | 419A-02 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 6 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Family | AHC/VHC | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e3 | |
| Length | 2 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | AND GATE | |
| Max I(ol) | 0.008 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Inputs | 2 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Characteristics | OPEN-DRAIN | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP5/6,.08 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 50 mA | |
| Propagation Delay (tpd) | 16.5 ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | NO | |
| Seated Height-Max | 1.1 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | MILITARY | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Width | 1.25 mm |
Alternate Parts for MC74VHC1G09DFT1G
This table gives cross-reference parts and alternative options found for MC74VHC1G09DFT1G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MC74VHC1G09DFT1G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MC74VHC1G09DTT1G | onsemi | $0.1003 | Single 2-Input AND Gate, Open Drain, TSOP-5, 3000-REEL | MC74VHC1G09DFT1G vs MC74VHC1G09DTT1G |
| 74AHC1G08GV/C,125 | NXP Semiconductors | Check for Price | 74AHC(T)1G08 - 2-input AND gate TSOP 5-Pin | MC74VHC1G09DFT1G vs 74AHC1G08GV/C,125 |
MC74VHC1G09DFT1G Frequently Asked Questions (FAQ)
-
The maximum operating frequency of the MC74VHC1G09DFT1G is typically 100 MHz, but it can vary depending on the specific application and operating conditions.
-
To ensure proper power supply, connect VCC to a stable 2.0-5.5V power source, and GND to a reliable ground connection. Also, decouple the power supply with a 0.1uF capacitor to reduce noise and ensure stable operation.
-
The input voltage threshold for the MC74VHC1G09DFT1G is typically around 1.5V, but it can vary depending on the specific application and operating conditions.
-
Yes, the MC74VHC1G09DFT1G can operate in a 3.3V system, as it is specified to operate from 2.0V to 5.5V. However, ensure that the input signals are within the recommended voltage range to maintain proper operation.
-
To handle ESD protection, follow proper handling and storage procedures, and consider using ESD-protective packaging and materials. Additionally, design the PCB with ESD protection in mind, using features like ESD diodes and resistors to protect the device.
