Logic / Bus Driver/Transceivers / MC74VHC126DTR2G
Datasheets
MC74VHC126DTR2G by: onsemi

Quad Bus Buffer, 3-State, TSSOP-14, 2500-REEL

Part Details for MC74VHC126DTR2G by onsemi

Results Overview of MC74VHC126DTR2G by onsemi

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

MC74VHC126DTR2G Information

MC74VHC126DTR2G by onsemi is a Bus Driver/Transceiver.
Bus Driver/Transceivers are under the broader part category of Logic Components.

Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.

Price & Stock for MC74VHC126DTR2G

Part # Distributor Description Stock Price Buy
DISTI # 71J5696
Newark Ic, Non Inverting Bus Buffer, Tssop-14, Logic Device Type:Buffer, Non Inverting, Logic Family/Base Number:74Vhc126, Ic Case/Package:Tssop, No. Of Pins:14Pins, Supply Voltage Min:2V, Supply Voltage Max:5.5V, Logic Ic Family:74Vhc Rohs Compliant: Yes |Onsemi MC74VHC126DTR2G RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1 $0.1890
  • 3,000 $0.1840
  • 6,000 $0.1700
  • 12,000 $0.1590
  • 18,000 $0.1480
  • 30,000 $0.1420
$0.1420 / $0.1890 Buy Now
DISTI # MC74VHC126DTR2GOSCT-ND
DigiKey IC BUF NON-INVERT 5.5V 14TSSOP Min Qty: 1 Lead time: 9 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 6261
In Stock
  • 1 $0.5700
  • 10 $0.4030
  • 25 $0.3608
  • 100 $0.3145
  • 250 $0.2924
  • 500 $0.2790
  • 1,000 $0.2720
  • 2,500 $0.2738
  • 5,000 $0.2513
  • 7,500 $0.2398
  • 12,500 $0.2270
  • 17,500 $0.2222
$0.2222 / $0.5700 Buy Now
DISTI # MC74VHC126DTR2G
Avnet Americas Buffer, Non Inverting, 74VHC126, 4 Element, 2 V to 5.5 V, 14 Pins, WTSSOP - Tape and Reel (Alt: MC74VHC126DTR2G) RoHS: Compliant Min Qty: 5000 Package Multiple: 2500 Lead time: 9 Weeks, 0 Days Container: Reel 0
  • 5,000 $0.1409
  • 10,000 $0.1372
  • 15,000 $0.1355
  • 25,000 $0.1337
  • 50,000 $0.1318
$0.1318 / $0.1409 Buy Now
DISTI # 863-MC74VHC126DTR2G
Mouser Electronics Buffers & Line Drivers 2-5.5V Octal Bus 3-State RoHS: Compliant 54312
  • 1 $0.4100
  • 10 $0.4010
  • 25 $0.3590
  • 100 $0.2860
  • 250 $0.2430
  • 1,000 $0.2120
  • 2,500 $0.1600
  • 10,000 $0.1420
$0.1420 / $0.4100 Buy Now
DISTI # E02:0323_00076236
Arrow Electronics Buffer/Line Driver 4-CH Non-Inverting 3-ST CMOS 14-Pin TSSOP W T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 9 Weeks Europe - 2500
  • 2,500 $0.1561
  • 5,000 $0.1546
  • 7,500 $0.1530
  • 10,000 $0.1407
  • 12,500 $0.1393
  • 17,500 $0.1380
$0.1380 / $0.1561 Buy Now
DISTI # V72:2272_07305324
Arrow Electronics Buffer/Line Driver 4-CH Non-Inverting 3-ST CMOS 14-Pin TSSOP W T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 9 Weeks Date Code: 2239 Container: Cut Strips Americas - 250
  • 1 $0.3001
  • 10 $0.2955
  • 25 $0.2770
  • 100 $0.2409
  • 250 $0.2172
$0.2172 / $0.3001 Buy Now
Onlinecomponents.com Quad Bus Buffer, 3-State RoHS: Compliant 0
  • 2,500 $0.1480
  • 5,000 $0.1441
  • 7,500 $0.1404
  • 10,000 $0.1383
  • 25,000 $0.1352
  • 50,000 $0.1332
  • 100,000 $0.1312
$0.1312 / $0.1480 Buy Now
DISTI # 84470238
Verical Buffer/Line Driver 4-CH Non-Inverting 3-ST CMOS 14-Pin TSSOP W T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Americas - 2500
  • 2,500 $0.1818
  • 10,000 $0.1614
$0.1614 / $0.1818 Buy Now
DISTI # 88058932
Verical Buffer/Line Driver 4-CH Non-Inverting 3-ST CMOS 14-Pin TSSOP W T/R RoHS: Compliant Min Qty: 1618 Package Multiple: 1 Date Code: 2101 Americas - 2450
  • 1,618 $0.2319
$0.2319 Buy Now
DISTI # 69883791
Verical Buffer/Line Driver 4-CH Non-Inverting 3-ST CMOS 14-Pin TSSOP W T/R RoHS: Compliant Min Qty: 28 Package Multiple: 1 Date Code: 2239 Americas - 250
  • 28 $0.2770
  • 100 $0.2409
  • 250 $0.2172
$0.2172 / $0.2770 Buy Now
Rochester Electronics Bus Driver, AHC/VHC Series, 4-Func, 1-Bit, True Output, CMOS, PDSO14 RoHS: Compliant Status: Active Min Qty: 1 2450
  • 100 $0.1855
  • 500 $0.1669
  • 1,000 $0.1540
  • 10,000 $0.1373
  • 100,000 $0.1150
$0.1150 / $0.1855 Buy Now
DISTI # MC74VHC126DTR2G
Avnet Asia Buffer, Non Inverting, 74VHC126, 4 Element, 2 V to 5.5 V, 14 Pins, WTSSOP (Alt: MC74VHC126DTR2G) RoHS: Compliant Min Qty: 10000 Package Multiple: 2500 Lead time: 9 Weeks, 0 Days 0
  • 5,000 $0.1372
  • 10,000 $0.1354
  • 15,000 $0.1337
  • 25,000 $0.1320
  • 50,000 $0.1288
  • 125,000 $0.1257
  • 250,000 $0.1227
$0.1227 / $0.1372 Buy Now
DISTI # MC74VHC126DTR2G
Avnet Silica Buffer Non Inverting 74VHC126 4 Element 2 V to 55 V 14 Pins WTSSOP (Alt: MC74VHC126DTR2G) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 10 Weeks, 0 Days Silica - 2500
Buy Now
DISTI # MC74VHC126DTR2G
EBV Elektronik Buffer Non Inverting 74VHC126 4 Element 2 V to 55 V 14 Pins WTSSOP (Alt: MC74VHC126DTR2G) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 11 Weeks, 0 Days EBV - 0
Buy Now

Part Details for MC74VHC126DTR2G

MC74VHC126DTR2G CAD Models

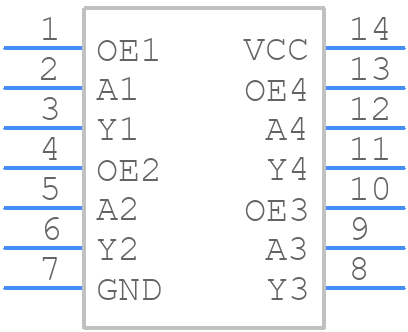

  • Part Symbol

    Part Symbol

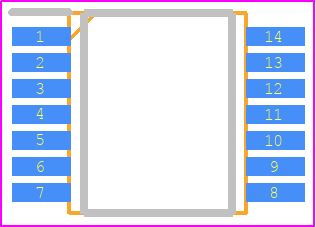

  • Footprint
