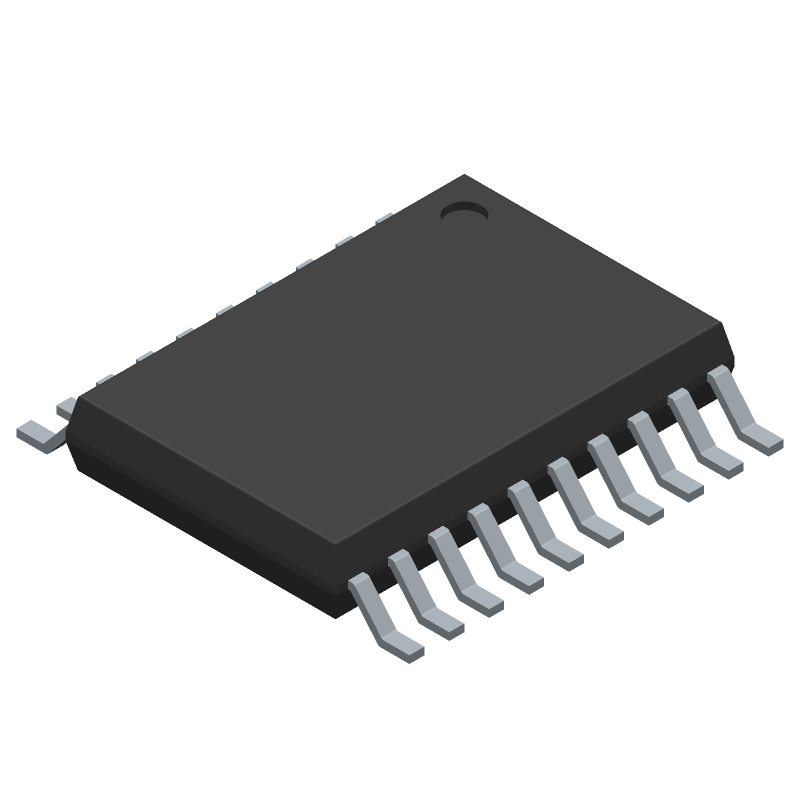

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MC74HC273ADTG by onsemi
Results Overview of MC74HC273ADTG by onsemi
- Distributor Offerings: (14 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
MC74HC273ADTG Information
MC74HC273ADTG by onsemi is an FF/Latch.
FF/Latches are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for MC74HC273ADTG
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
92K7044
|
Newark | 74Hc Cmos, Smd, 74Hc273, Tssop20, Logic Family/Base Number:74Hc273, Flip-Flop Type:D, Propagation Delay:25Ns, Frequency:35Mhz, Output Current:7.8Ma, Logic Case Style:Tssop, No. Of Pins:20Pins, Trigger Type:Positive Edge, Ic Output Rohs Compliant: Yes |Onsemi MC74HC273ADTG RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 49 |
|
$0.2750 / $1.2500 | Buy Now |
|
DISTI #
MC74HC273ADTGOS-ND
|
DigiKey | IC FF D-TYPE SGL 8-BIT 20-TSSOP Min Qty: 1 Lead time: 9 Weeks Container: Tube |
445 In Stock |
|
$0.2754 / $1.2500 | Buy Now |
|
DISTI #
MC74HC273ADTG
|
Avnet Americas | Flip Flop, 74HC273, D, 25 ns, 35 MHz, 7.8 mA, 20 Pins, WTSSOP - Rail/Tube (Alt: MC74HC273ADTG) RoHS: Compliant Min Qty: 4350 Package Multiple: 75 Lead time: 9 Weeks, 0 Days Container: Tube | 16050 Factory Stock |
|
$0.1438 / $0.1574 | Buy Now |
|
DISTI #
863-MC74HC273ADTG
|
Mouser Electronics | Flip Flops 2-6V CMOS Octal D-Type RoHS: Compliant | 643 |
|
$0.2500 / $1.2500 | Buy Now |
|
DISTI #
P40:2555_17755396
|
Arrow Electronics | Flip Flop D-Type Bus Interface Pos-Edge 1-Element 20-Pin TSSOP W Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 30 Weeks Date Code: 2338 | Europe - 2850 |
|
$0.2228 / $0.4060 | Buy Now |
|
DISTI #
V79:2366_19920758
|
Arrow Electronics | Flip Flop D-Type Bus Interface Pos-Edge 1-Element 20-Pin TSSOP W Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1619 | Americas - 321 |
|
$0.0799 / $0.1368 | Buy Now |
|
DISTI #
V36:1790_07301200
|
Arrow Electronics | Flip Flop D-Type Bus Interface Pos-Edge 1-Element 20-Pin TSSOP W Tube RoHS: Compliant Min Qty: 75 Package Multiple: 75 Lead time: 9 Weeks Date Code: 2338 | Americas - 161 |
|
$0.2473 / $0.4171 | Buy Now |
|
|
Onlinecomponents.com | MC74HC273ADTG Octal D Type Flip Flop IC, LSTTL, 2 - 6 V, 20-Pin TSSOP RoHS: Compliant | 0 |
|
$0.2402 / $0.2985 | Buy Now |
|
DISTI #
26903913
|
Verical | Flip Flop D-Type Bus Interface Pos-Edge 1-Element 20-Pin TSSOP W Tube RoHS: Compliant Min Qty: 72 Package Multiple: 1 Date Code: 1619 | Americas - 321 |
|
$0.0799 | Buy Now |
|
|
Rochester Electronics | D Flip-Flop, HC/UH Series, 1-Func, Positive Edge Triggered, 8-Bit, True Output, CMOS, PDSO20 RoHS: Compliant Status: Active Min Qty: 1 | 2128 |
|
$0.2100 / $0.3387 | Buy Now |
Part Details for MC74HC273ADTG
MC74HC273ADTG CAD Models
MC74HC273ADTG Part Data Attributes
|
|
MC74HC273ADTG
onsemi
Buy Now
Datasheet
|
Compare Parts:
MC74HC273ADTG
onsemi
Octal D Flip-Flop, TSSOP 20 LEAD, 75-TUBE
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | TSSOP 20 LEAD | |
| Pin Count | 20 | |
| Manufacturer Package Code | 9.48 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 9 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Family | HC/UH | |
| JESD-30 Code | R-PDSO-G20 | |
| JESD-609 Code | e4 | |
| Length | 6.5 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | D FLIP-FLOP | |
| Max Frequency@Nom-Sup | 20000000 Hz | |
| Max I(ol) | 0.006 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 8 | |
| Number of Functions | 1 | |
| Number of Terminals | 20 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Polarity | TRUE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP20,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Packing Method | RAIL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Propagation Delay (tpd) | 220 ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.2 mm | |
| Supply Voltage-Max (Vsup) | 6 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | MILITARY | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Trigger Type | POSITIVE EDGE | |
| Width | 4.4 mm | |
| fmax-Min | 24 MHz |
Alternate Parts for MC74HC273ADTG
This table gives cross-reference parts and alternative options found for MC74HC273ADTG. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MC74HC273ADTG, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 74HC273PW | NXP Semiconductors | Check for Price | IC HC/UH SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, PDSO20, 4.40 MM, PLASTIC, MO-153, SOT-360-1, TSSOP-20, FF/Latch | MC74HC273ADTG vs 74HC273PW |
| 935185830112 | NXP Semiconductors | Check for Price | IC HC/UH SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, PDSO20, PLASTIC, TSSOP-20, FF/Latch | MC74HC273ADTG vs 935185830112 |
MC74HC273ADTG Frequently Asked Questions (FAQ)
-
The maximum clock frequency of the MC74HC273ADTG is 35 MHz, but it can vary depending on the specific application and operating conditions.
-
To ensure proper initialization, connect the CLR (clear) input to a power-on reset circuit or a manual reset switch. This will ensure that the flip-flops are reset to a known state during power-up.
-
The recommended operating voltage range for the MC74HC273ADTG is 2.0 V to 6.0 V, with a typical operating voltage of 5.0 V.
-
Asynchronous inputs should be synchronized with the clock signal using a synchronizer circuit or a flip-flop with a synchronous clear input to prevent metastability issues.
-
The maximum capacitance that can be driven by the MC74HC273ADTG outputs is 100 pF, but this can vary depending on the specific application and operating conditions.
