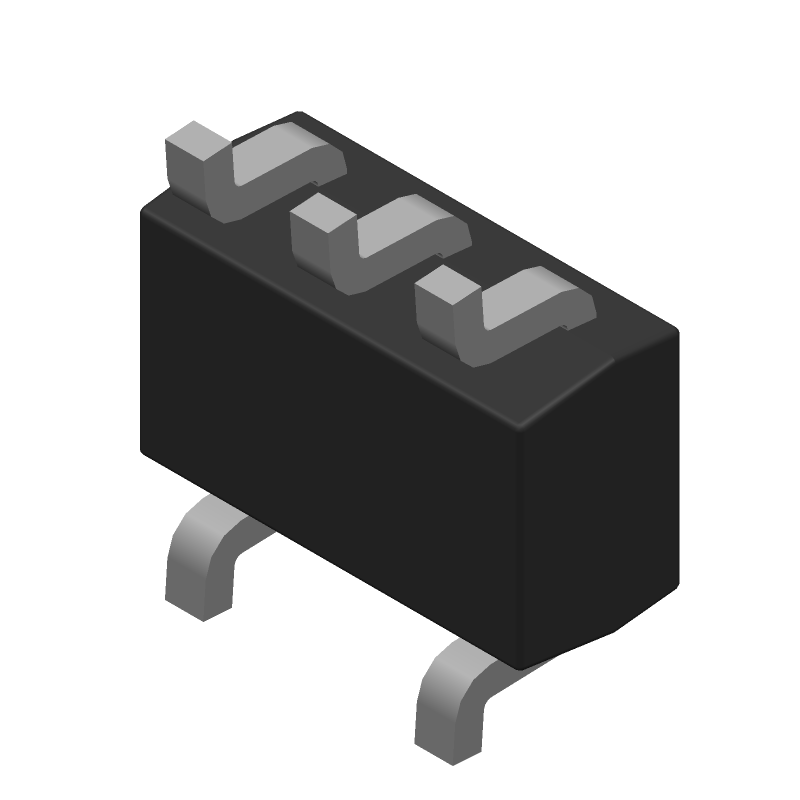

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MC74HC1G08DFT2G-L22038 by onsemi
Results Overview of MC74HC1G08DFT2G-L22038 by onsemi
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MC74HC1G08DFT2G-L22038 Information
MC74HC1G08DFT2G-L22038 by onsemi is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for MC74HC1G08DFT2G-L22038
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
57AK8294
|
Newark | Log Cmos Gat And 1G/Reel |Onsemi MC74HC1G08DFT2G-L22038 RoHS: Not Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
Buy Now | |
|
DISTI #
488-MC74HC1G08DFT2G-L22038CT-ND
|
DigiKey | IC GATE AND 1CH 2-INP SC88A Min Qty: 1 Lead time: 15 Weeks Container: Cut Tape (CT), Tape & Reel (TR) |
1388 In Stock |
|
$0.0655 / $0.2900 | Buy Now |
|
DISTI #
MC74HC1G08DFT2G-L22038
|
Avnet Silica | AND Gate Single 2 Input 5 Pins SC88A MC74HC1G08 (Alt: MC74HC1G08DFT2G-L22038) RoHS: Compliant Min Qty: 24000 Package Multiple: 3000 Lead time: 143 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
MC74HC1G08DFT2G-L22038
|
EBV Elektronik | AND Gate Single 2 Input 5 Pins SC88A MC74HC1G08 (Alt: MC74HC1G08DFT2G-L22038) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 143 Weeks, 0 Days | EBV - 21000 |
|
Buy Now | |
|
|
Flip Electronics | Stock, ship today | 15000 |
|
RFQ | |
|
|
Vyrian | Logic ICs | 10850 |
|
RFQ |
Part Details for MC74HC1G08DFT2G-L22038
MC74HC1G08DFT2G-L22038 CAD Models
MC74HC1G08DFT2G-L22038 Part Data Attributes
|
|
MC74HC1G08DFT2G-L22038
onsemi
Buy Now
Datasheet
|
Compare Parts:
MC74HC1G08DFT2G-L22038
onsemi
High-speed Single CMOS 2-Input AND Gate Single 2-Input AND Gate, SC-88A / SC-70-5, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SC-88A / SC-70-5 | |
| Manufacturer Package Code | 419A-02 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | onsemi | |
| Family | HC/UH | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e3 | |
| Length | 2 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | AND GATE | |
| Max I(ol) | 0.0026 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Inputs | 2 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP5/6,.08 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 25 mA | |
| Prop. Delay@Nom-Sup | 90 ns | |
| Propagation Delay (tpd) | 155 ns | |
| Schmitt Trigger | NO | |
| Seated Height-Max | 1.1 mm | |
| Supply Voltage-Max (Vsup) | 6 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.25 mm |
MC74HC1G08DFT2G-L22038 Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the MC74HC1G08DFT2G-L22038 is 2V to 6V, with a typical voltage of 5V.
-
When the input pins are not in use, it is recommended to tie them to VCC or GND through a resistor to prevent floating inputs and reduce power consumption.
-
The maximum frequency of operation for the MC74HC1G08DFT2G-L22038 is typically 100 MHz, but it can vary depending on the specific application and operating conditions.
-
To ensure reliable operation over the full temperature range (-40°C to 125°C), it is recommended to follow proper PCB design and layout guidelines, use a stable power supply, and ensure that the device is operated within its recommended operating conditions.
-
The typical propagation delay for the MC74HC1G08DFT2G-L22038 is around 10 ns, but it can vary depending on the specific application and operating conditions.
