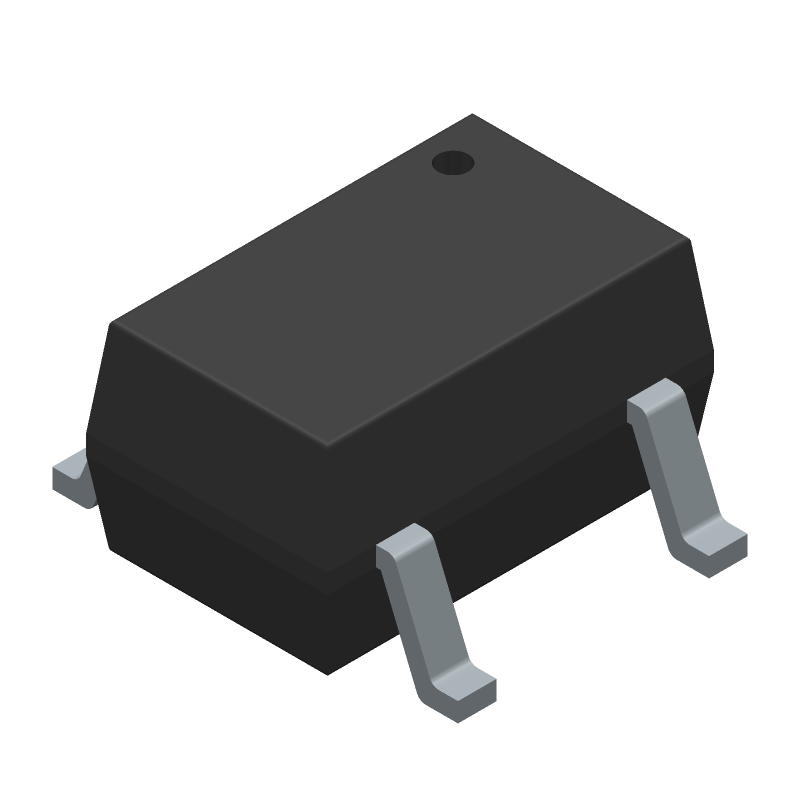

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MC74HC1G04DFT1G by onsemi
Results Overview of MC74HC1G04DFT1G by onsemi
- Distributor Offerings: (21 listings)
- Number of FFF Equivalents: (7 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Industrial Automation
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Renewable Energy
Entertainment and Gaming
Robotics and Drones
MC74HC1G04DFT1G Information
MC74HC1G04DFT1G by onsemi is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for MC74HC1G04DFT1G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
81Y6641
|
Newark | Logic, Inverter, Single, Sot-353-5, Logic Function:Inverter, No. Of Elements:Single, No. Of Inputs:1Inputs, No. Of Pins:5Pins, Ic Case/Package:Sot-353, Product Range:74Hc1G04, Logic Ic Family:74Hc, Supply Voltage Min:2V Rohs Compliant: Yes |Onsemi MC74HC1G04DFT1G RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 1399 |
|
$0.0620 / $0.2420 | Buy Now |
|
DISTI #
67H6712
|
Newark | Single Inverter, Sot-353-5, Full Reel, No. Of Inputs:1Inputs, No. Of Pins:5Pins, Ic Case/Package:Sot-353, Product Range:-, Logic Ic Family:74Hc, Supply Voltage Min:2V, Supply Voltage Max:6V, Output Current:2.6Ma, Msl:- Rohs Compliant: Yes |Onsemi MC74HC1G04DFT1G RoHS: Compliant Min Qty: 12000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0230 / $0.0280 | Buy Now |
|
DISTI #
MC74HC1G04DFT1GOSCT-ND
|
DigiKey | IC INVERTER 1CH 1-INP SC88A Min Qty: 1 Lead time: 8 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
6884 In Stock |
|
$0.0234 / $0.1000 | Buy Now |
|
DISTI #
MC74HC1G04DFT1G
|
Avnet Americas | Inverter, Single, 1 Input, 5 Pins, SC-88A, MC74HC1G04 - Tape and Reel (Alt: MC74HC1G04DFT1G) RoHS: Compliant Min Qty: 36000 Package Multiple: 3000 Lead time: 53 Weeks, 1 Days Container: Reel | 0 |
|
$0.0202 / $0.0206 | Buy Now |
|
DISTI #
863-MC74HC1G04DFT1G
|
Mouser Electronics | Inverters 2-6V Single CMOS RoHS: Compliant | 10652 |
|
$0.0280 / $0.2400 | Buy Now |
|
DISTI #
70466376
|
RS | MC74HC1G04DFT1G CMOS Inverter, 2 - 6 V SC-70, 5-Pin Min Qty: 100 Package Multiple: 1 Container: Bulk | 0 |
|
$0.0570 / $0.0670 | RFQ |
|
|
Onlinecomponents.com | 74HC1G04 EAR99 74HC Tape & Reel (TR) logic gate circuit 17ns @ 6V 50pF 1mm 2.6mA 2.6mA 6V RoHS: Compliant | 0 |
|
$0.0198 / $0.0245 | Buy Now |
|
DISTI #
87893389
|
Verical | Inverter 1-Element CMOS 5-Pin SC-88A T/R RoHS: Compliant Min Qty: 770 Package Multiple: 1 | Americas - 17385 |
|
$0.0400 / $0.0441 | Buy Now |
|
|
Bristol Electronics | 3005 |
|
RFQ | ||
|
DISTI #
MC74HC1G04DFT1G
|
TME | IC: digital, NOT, Ch: 1, IN: 1, CMOS, SMD, SC70-5, 2÷6VDC, -55÷125°C Min Qty: 1 | 0 |
|
$0.0426 / $0.2786 | RFQ |
Part Details for MC74HC1G04DFT1G
MC74HC1G04DFT1G CAD Models
MC74HC1G04DFT1G Part Data Attributes
|
|
MC74HC1G04DFT1G
onsemi
Buy Now
Datasheet
|
Compare Parts:
MC74HC1G04DFT1G
onsemi
Single Inverter, SC-88A (SC-70-5 / SOT-353), 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SC-88A (SC-70-5 / SOT-353) | |
| Pin Count | 5 | |
| Manufacturer Package Code | 419A-02 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 53 Weeks, 1 Day | |
| Samacsys Manufacturer | onsemi | |
| Family | HC/UH | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e3 | |
| Length | 2 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | INVERTER | |
| Max I(ol) | 0.0026 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Inputs | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP5/6,.08 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 25 mA | |
| Prop. Delay@Nom-Sup | 90 ns | |
| Propagation Delay (tpd) | 155 ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | NO | |
| Seated Height-Max | 1.1 mm | |
| Supply Voltage-Max (Vsup) | 6 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | MILITARY | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Width | 1.25 mm |
Alternate Parts for MC74HC1G04DFT1G
This table gives cross-reference parts and alternative options found for MC74HC1G04DFT1G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MC74HC1G04DFT1G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| HD74HC1G04CME | Renesas Electronics Corporation | Check for Price | HC/UH SERIES, 1-INPUT INVERT GATE, PDSO5, CMPAK-5 | MC74HC1G04DFT1G vs HD74HC1G04CME |
| MC74HC1G04DFT2G | onsemi | Check for Price | Single Inverter, SC-88A (SC-70-5 / SOT-353), 3000-REEL | MC74HC1G04DFT1G vs MC74HC1G04DFT2G |
| 935245650165 | NXP Semiconductors | Check for Price | IC HC/UH SERIES, 1-INPUT INVERT GATE, PDSO5, PLASTIC, SC-88A, 5 PIN, Gate | MC74HC1G04DFT1G vs 935245650165 |
| HD74HC1G04 | Renesas Electronics Corporation | Check for Price | HC/UH SERIES, 1-INPUT INVERT GATE, PDSO5, CMPAK-5 | MC74HC1G04DFT1G vs HD74HC1G04 |
| HD74HC1G04-EL | Hitachi Ltd | Check for Price | Inverter, HC/UH Series, 1-Func, 1-Input, CMOS, PDSO5, CMPAK-5 | MC74HC1G04DFT1G vs HD74HC1G04-EL |
| MC74HC1G04DFT2 | onsemi | Check for Price | HC/UH SERIES, 1-INPUT INVERT GATE, PDSO5, SC-70, SC-88A, SOT-353, 5 PIN | MC74HC1G04DFT1G vs MC74HC1G04DFT2 |
| 74HC1G04GW | NXP Semiconductors | Check for Price | IC HC/UH SERIES, 1-INPUT INVERT GATE, PDSO5, PLASTIC, SC-88A, 5 PIN, Gate | MC74HC1G04DFT1G vs 74HC1G04GW |
MC74HC1G04DFT1G Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the MC74HC1G04DFT1G is 2.0V to 6.0V.
-
To prevent damage due to backdrive current, ensure that the output of the inverter is not driven externally when the device is powered down or in a high-impedance state.
-
The maximum frequency of operation for the MC74HC1G04DFT1G is typically up to 100 MHz, but this can vary depending on the specific application and operating conditions.
-
To handle ESD protection, ensure that the device is handled and stored in an ESD-protected environment, and follow proper ESD handling procedures during assembly and testing.
-
The thermal resistance of the MC74HC1G04DFT1G package is typically around 250°C/W for the DFN package.
