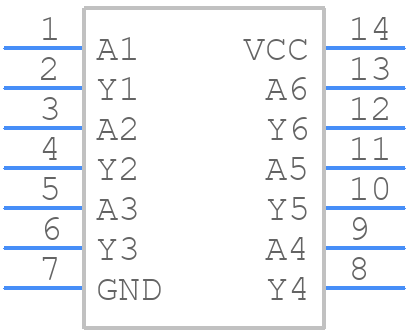

Part Symbol
-

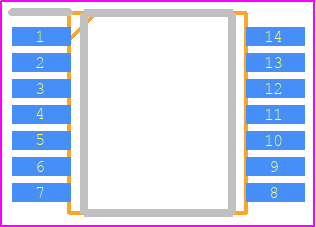

Footprint
-

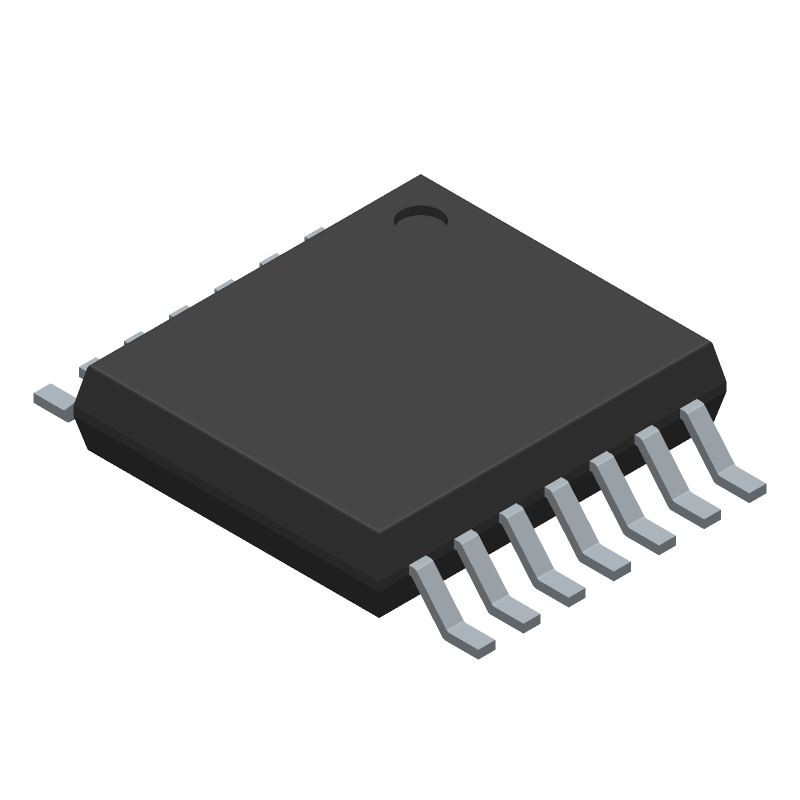

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MC74HC14ADTR2G-Q by onsemi
Results Overview of MC74HC14ADTR2G-Q by onsemi
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MC74HC14ADTR2G-Q Information
MC74HC14ADTR2G-Q by onsemi is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for MC74HC14ADTR2G-Q
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
488-MC74HC14ADTR2G-QTR-ND
|
DigiKey | IC INVERTER 6CH 6-INP 14TSSOP Min Qty: 5000 Lead time: 17 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.2143 | Buy Now |
|
DISTI #
MC74HC14ADTR2G-Q
|
Avnet Americas | HEX SCHMITT-TRIGGER INVER - Tape and Reel (Alt: MC74HC14ADTR2G-Q) RoHS: Compliant Min Qty: 10000 Package Multiple: 5000 Lead time: 17 Weeks, 0 Days Container: Reel | 0 |
|
$0.1816 / $0.1854 | Buy Now |
|
DISTI #
863-MC74HC14ADTR2G-Q
|
Mouser Electronics | Inverters HEX SCHMITT-TRIGGER INVER RoHS: Not Compliant | 2207 |
|
$0.2010 / $1.0600 | Buy Now |
|
|
Onlinecomponents.com | Hex Inverter with Schmitt Trigger Input RoHS: Compliant | 0 |
|
$0.1836 / $0.2055 | Buy Now |
Part Details for MC74HC14ADTR2G-Q
MC74HC14ADTR2G-Q CAD Models
MC74HC14ADTR2G-Q Part Data Attributes
|
|
MC74HC14ADTR2G-Q
onsemi
Buy Now
Datasheet
|
Compare Parts:
MC74HC14ADTR2G-Q
onsemi
Hex Inverter with Schmitt Trigger Input, TSSOP-14 WB, 2500-REEL, Automotive Qualified
|
| Pbfree Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | TSSOP-14 WB | |
| Manufacturer Package Code | 948G | |
| Factory Lead Time | 17 Weeks | |
| Samacsys Manufacturer | onsemi | |
| JESD-609 Code | e4 | |
| Logic IC Type | INVERTER | |
| Moisture Sensitivity Level | 1 | |
| Peak Reflow Temperature (Cel) | 260 | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
