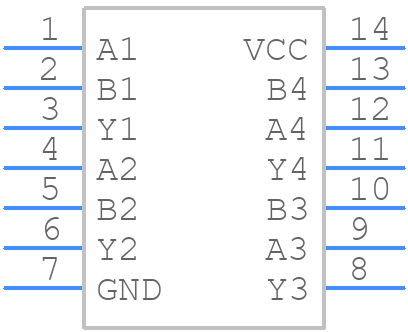

Part Symbol
-

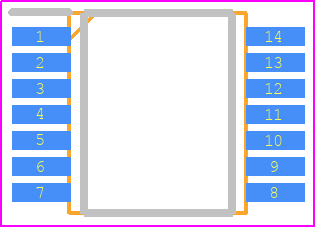

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MC74HC00ADTR2G-Q by onsemi
Results Overview of MC74HC00ADTR2G-Q by onsemi
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MC74HC00ADTR2G-Q Information
MC74HC00ADTR2G-Q by onsemi is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for MC74HC00ADTR2G-Q
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
488-MC74HC00ADTR2G-QTR-ND
|
DigiKey | IC GATE NAND 4CH 2-INP 14TSSOP Min Qty: 2500 Lead time: 9 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.2060 | Buy Now |
|
DISTI #
MC74HC00ADTR2G-Q
|
Avnet Americas | QUAD 2-INPUT NAND GATE - Tape and Reel (Alt: MC74HC00ADTR2G-Q) RoHS: Compliant Min Qty: 10000 Package Multiple: 2500 Lead time: 9 Weeks, 0 Days Container: Reel | 0 |
|
$0.0973 / $0.0993 | Buy Now |
|
DISTI #
863-MC74HC00ADTR2G-Q
|
Mouser Electronics | Logic Gates Quad 2-Input NAND Gate RoHS: Not Compliant | 0 |
|
$0.2280 / $1.0100 | Order Now |
|
|
Onlinecomponents.com | Quad 2-Input NAND Gate RoHS: Compliant | 0 |
|
$0.1690 / $0.1916 | Buy Now |
Part Details for MC74HC00ADTR2G-Q
MC74HC00ADTR2G-Q CAD Models
MC74HC00ADTR2G-Q Part Data Attributes
|
|
MC74HC00ADTR2G-Q
onsemi
Buy Now
Datasheet
|
Compare Parts:
MC74HC00ADTR2G-Q
onsemi
Quad 2-Input NAND Gate, TSSOP-14 WB, 2500-REEL, Automotive Qualified
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | TSSOP-14 WB | |
| Package Description | TSSOP-14 | |
| Manufacturer Package Code | 948G | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 9 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Family | HC/UH | |
| JESD-30 Code | R-PDSO-G14 | |
| Length | 5 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | NAND GATE | |
| Max I(ol) | 0.0052 A | |
| Number of Functions | 4 | |
| Number of Inputs | 2 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP14,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Power Supply Current-Max (ICC) | 50 mA | |
| Prop. Delay@Nom-Sup | 22 ns | |
| Propagation Delay (tpd) | 110 ns | |
| Schmitt Trigger | NO | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 1.2 mm | |
| Supply Voltage-Max (Vsup) | 6 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Width | 4.4 mm |
