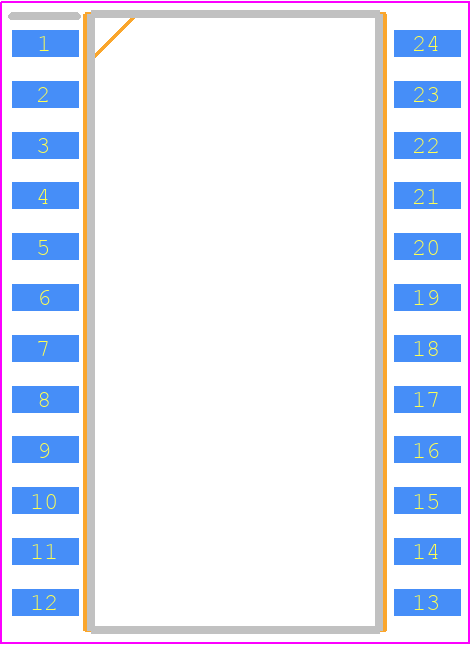

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MC74AC652DWR2G by onsemi
Results Overview of MC74AC652DWR2G by onsemi
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
MC74AC652DWR2G Information
MC74AC652DWR2G by onsemi is a Bus Driver/Transceiver.
Bus Driver/Transceivers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for MC74AC652DWR2G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
42K0817
|
Newark | Ic, bus Transceiver, single,8-Bit, ac-Cmos, sop,24Pin, plastic |Onsemi MC74AC652DWR2G RoHS: Not Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
Buy Now | |
|
DISTI #
MC74AC652DWR2G
|
Avnet Americas | Transceiver, Non Inverting, Registered, 74AC652, 1 Element, 2 V to 6 V, 24 Pins, WSOIC - Tape and Reel (Alt: MC74AC652DWR2G) RoHS: Compliant Min Qty: 358 Package Multiple: 1 Lead time: 0 Weeks, 2 Days Container: Reel | 13000 Partner Stock |
|
$1.7284 / $1.7949 | Buy Now |
|
DISTI #
70547250
|
RS | MC74AC652DWR2G, Bus Transceiver/Register,8-Bit 3-State,2 to 6V,24-Pin SOIC Min Qty: 1 Package Multiple: 1 Container: Bulk | 0 |
|
$2.2000 / $2.5900 | RFQ |
|
DISTI #
86001315
|
Verical | Bus XCVR Single 8-CH 3-ST 24-Pin SOIC W T/R RoHS: Compliant Min Qty: 150 Package Multiple: 1 Date Code: 1701 | Americas - 12000 |
|
$2.1125 / $2.5000 | Buy Now |
|
DISTI #
86004363
|
Verical | Bus XCVR Single 8-CH 3-ST 24-Pin SOIC W T/R RoHS: Compliant Min Qty: 150 Package Multiple: 1 Date Code: 1401 | Americas - 10138 |
|
$2.1125 / $2.5000 | Buy Now |
|
DISTI #
86004112
|
Verical | Bus XCVR Single 8-CH 3-ST 24-Pin SOIC W T/R RoHS: Compliant Min Qty: 150 Package Multiple: 1 Date Code: 1301 | Americas - 980 |
|
$2.3750 / $2.5000 | Buy Now |
|
DISTI #
86004216
|
Verical | Bus XCVR Single 8-CH 3-ST 24-Pin SOIC W T/R RoHS: Compliant Min Qty: 150 Package Multiple: 1 Date Code: 1201 | Americas - 224 |
|
$2.5000 | Buy Now |
|
|
Rochester Electronics | Registered Bus Transceiver, AC Series, 1-Func, 8-Bit, True Output, CMOS, PDSO24 RoHS: Compliant Status: End of Life / Last Time Buy Min Qty: 1 | 23342 |
|
$1.6900 / $2.1100 | Buy Now |
|
DISTI #
MC74AC652DWR2G
|
Avnet Silica | Transceiver Non Inverting Registered 74AC652 1 Element 2 V to 6 V 24 Pins WSOIC (Alt: MC74AC652DWR2G) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 143 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
|
Flip Electronics | Stock, ship today | 13000 |
|
RFQ |
Part Details for MC74AC652DWR2G
MC74AC652DWR2G CAD Models
MC74AC652DWR2G Part Data Attributes
|
|
MC74AC652DWR2G
onsemi
Buy Now
Datasheet
|
Compare Parts:
MC74AC652DWR2G
onsemi
Octal Bus Transceiver Register with 3-State Outputs (Non-inverting), SOIC−24 WB, 1000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOIC−24 WB | |
| Pin Count | 24 | |
| Manufacturer Package Code | 0.0751 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 2 Days | |
| Samacsys Manufacturer | onsemi | |
| Additional Feature | SELECT INPUT FOR MULTIPLEXED TRANSMISSION OF REGISTERED/REAL TIME DATA | |
| Control Type | INDEPENDENT CONTROL | |
| Count Direction | BIDIRECTIONAL | |
| Family | AC | |
| JESD-30 Code | R-PDSO-G24 | |
| JESD-609 Code | e3 | |
| Length | 15.4 mm | |
| Logic IC Type | REGISTERED BUS TRANSCEIVER | |
| Max I(ol) | 0.024 A | |
| Moisture Sensitivity Level | 3 | |
| Number of Bits | 8 | |
| Number of Functions | 1 | |
| Number of Ports | 2 | |
| Number of Terminals | 24 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | 3-STATE | |
| Output Polarity | TRUE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP24,.4 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Prop. Delay@Nom-Sup | 19 ns | |
| Propagation Delay (tpd) | 19 ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2.65 mm | |
| Supply Voltage-Max (Vsup) | 6 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Trigger Type | POSITIVE EDGE | |
| Width | 7.5 mm |
Alternate Parts for MC74AC652DWR2G
This table gives cross-reference parts and alternative options found for MC74AC652DWR2G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MC74AC652DWR2G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MC74AC652DWR2 | onsemi | Check for Price | AC SERIES, 8-BIT REGISTERED TRANSCEIVER, TRUE OUTPUT, PDSO24, SOIC-24 | MC74AC652DWR2G vs MC74AC652DWR2 |
| MC74AC652DW | onsemi | Check for Price | AC SERIES, 8-BIT REGISTERED TRANSCEIVER, TRUE OUTPUT, PDSO24, SOIC-24 | MC74AC652DWR2G vs MC74AC652DW |
MC74AC652DWR2G Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the MC74AC652DWR2G is 2.0V to 6.0V, with a typical voltage of 5.0V.
-
The MC74AC652DWR2G has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane or a heat sink to dissipate heat. Additionally, ensure good airflow around the device and avoid blocking the thermal pad.
-
The maximum frequency of operation for the MC74AC652DWR2G is 100 MHz, but this can vary depending on the specific application and operating conditions.
-
To ensure signal integrity, use proper PCB layout techniques, such as minimizing trace lengths, using impedance-controlled traces, and avoiding signal reflections. Additionally, use termination resistors and decoupling capacitors as necessary.
-
Yes, the MC74AC652DWR2G is compatible with 3.3V logic, but ensure that the input signals are within the recommended voltage range of 2.0V to 6.0V.
