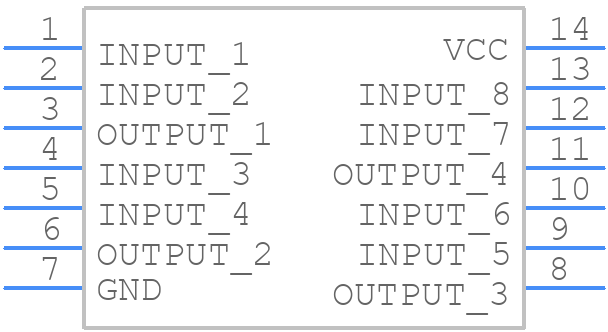

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MC74AC132DR2 by onsemi
Results Overview of MC74AC132DR2 by onsemi
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (5 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Industrial Automation
Electronic Manufacturing
MC74AC132DR2 Information
MC74AC132DR2 by onsemi is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for MC74AC132DR2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-MC74AC132DR2-ONTR-ND
|
DigiKey | IC GATE NAND 4CH 2-INP 14-SOIC Min Qty: 993 Lead time: 29 Weeks Container: Bulk MARKETPLACE PRODUCT |
7500 In Stock |
|
$0.3000 | Buy Now |
|
DISTI #
86124849
|
Verical | NAND Gate 4-Element 2-IN CMOS 14-Pin SOIC N T/R Min Qty: 1033 Package Multiple: 1 Date Code: 0701 | Americas - 7500 |
|
$0.3633 | Buy Now |
|
|
Bristol Electronics | 2083 |
|
RFQ | ||
|
|
Bristol Electronics | 2000 |
|
RFQ | ||
|
|
Rochester Electronics | NAND Gate, AC Series, 4-Func, 2-Input, CMOS, PDSO14 RoHS: Not Compliant Status: Obsolete Min Qty: 1 | 7500 |
|
$0.1802 / $0.2906 | Buy Now |
Part Details for MC74AC132DR2
MC74AC132DR2 CAD Models
MC74AC132DR2 Part Data Attributes
|
|
MC74AC132DR2
onsemi
Buy Now
Datasheet
|
Compare Parts:
MC74AC132DR2
onsemi
AC SERIES, QUAD 2-INPUT NAND GATE, PDSO14, SOIC-14
|
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOIC | |
| Package Description | SOIC-14 | |
| Pin Count | 14 | |
| Reach Compliance Code | not_compliant | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 4 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Family | AC | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e0 | |
| Length | 8.65 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | NAND GATE | |
| Max I(ol) | 0.024 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 4 | |
| Number of Inputs | 2 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP14,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 235 | |
| Prop. Delay@Nom-Sup | 15 ns | |
| Propagation Delay (tpd) | 15 ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | YES | |
| Seated Height-Max | 1.75 mm | |
| Supply Voltage-Max (Vsup) | 6 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | TIN LEAD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Width | 3.9 mm |
Alternate Parts for MC74AC132DR2
This table gives cross-reference parts and alternative options found for MC74AC132DR2. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MC74AC132DR2, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| DV74AC132D | avg Semiconductors | Check for Price | NAND Gate, AC Series, 4-Func, 2-Input, CMOS, PDSO14, PLASTIC, SOP-14 | MC74AC132DR2 vs DV74AC132D |
