Microcontrollers and Processors / Microcontrollers / MC68HC16Z1CAG16
Datasheets
MC68HC16Z1CAG16 by:

16-BIT, 16.78MHz, MICROCONTROLLER, PQFP144

Part Details for MC68HC16Z1CAG16 by NXP Semiconductors

Results Overview of MC68HC16Z1CAG16 by NXP Semiconductors

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Transportation and Logistics Healthcare Automotive

MC68HC16Z1CAG16 Information

MC68HC16Z1CAG16 by NXP Semiconductors is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for MC68HC16Z1CAG16

Part # Distributor Description Stock Price Buy
DISTI # 98AC1756
Newark 16 Bit Mcu, 1K Ram Rohs Compliant: Yes |Nxp MC68HC16Z1CAG16 RoHS: Compliant Min Qty: 60 Package Multiple: 1 Date Code: 0 Container: Bulk 350
  • 50 $29.4600
  • 100 $27.8700
$27.8700 / $29.4600 Buy Now
DISTI # 11J9385
Newark Microcontroller Mcu, 16 Bit, Hc16, 16Mhz, Lqfp-144, Product Range:Hc11 Family 68Hc16Z1 Series Microcontrollers, Device Core:Hc16, Data Bus Width:16 Bit, Operating Frequency Max:16Mhz, Program Memory Size:1Mb, No. Of Pins:144Pins Rohs Compliant: Yes |Nxp MC68HC16Z1CAG16 RoHS: Compliant Min Qty: 300 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 1 $28.6700
$28.6700 Buy Now
DISTI # MC68HC16Z1CAG16-ND
DigiKey IC MCU 16BIT ROMLESS 144LQFP Min Qty: 300 Lead time: 13 Weeks Container: Tray Limited Supply - Call
  • 300 $28.0256
$28.0256 Buy Now
DISTI # MC68HC16Z1CAG16
Avnet Americas MCU-Application Specific 16 bit, 68HC16, 16 MHz, 1 KB RAM/1 MB Program, 2.7V-3.6V in, LQFP-144 - Trays (Alt: MC68HC16Z1CAG16) RoHS: Compliant Min Qty: 60 Package Multiple: 1 Lead time: 13 Weeks, 0 Days Container: Tray 350
  • 60 $24.8664
$24.8664 Buy Now
DISTI # 841-MC68HC16Z1CAG16
Mouser Electronics 16-bit Microcontrollers - MCU 16 BIT MCU 1K RAM RoHS: Compliant 290
  • 1 $28.7300
  • 10 $28.7000
  • 25 $28.6800
  • 50 $26.4800
  • 300 $26.4700
$26.4700 / $28.7300 Buy Now
DISTI # E02:0323_00066293
Arrow Electronics MCU 16-bit HC16 CISC 3.3V/5V 144-Pin LQFP Tray Automotive AEC-Q100 RoHS: Compliant Min Qty: 300 Package Multiple: 60 Lead time: 13 Weeks Date Code: 2421 Europe - 300
  • 300 $26.2556
$26.2556 Buy Now
DISTI # 84989178
Verical MCU 16-bit HC16 CISC 3.3V/5V 144-Pin LQFP Tray Automotive AEC-Q100 RoHS: Compliant Min Qty: 300 Package Multiple: 300 Date Code: 2421 Americas - 300
  • 300 $26.4427
$26.4427 Buy Now
DISTI # MC68HC16Z1CAG16
Avnet Silica MCUApplication Specific 16 bit 68HC16 16 MHz 1 KB RAM1 MB Program 27V36V in LQFP144 (Alt: MC68HC16Z1CAG16) RoHS: Compliant Min Qty: 60 Package Multiple: 60 Lead time: 15 Weeks, 0 Days Silica - 180
Buy Now
DISTI # MC68HC16Z1CAG16
EBV Elektronik MCUApplication Specific 16 bit 68HC16 16 MHz 1 KB RAM1 MB Program 27V36V in LQFP144 (Alt: MC68HC16Z1CAG16) RoHS: Compliant Min Qty: 60 Package Multiple: 60 Lead time: 15 Weeks, 0 Days EBV - 0
Buy Now

Part Details for MC68HC16Z1CAG16

MC68HC16Z1CAG16 CAD Models

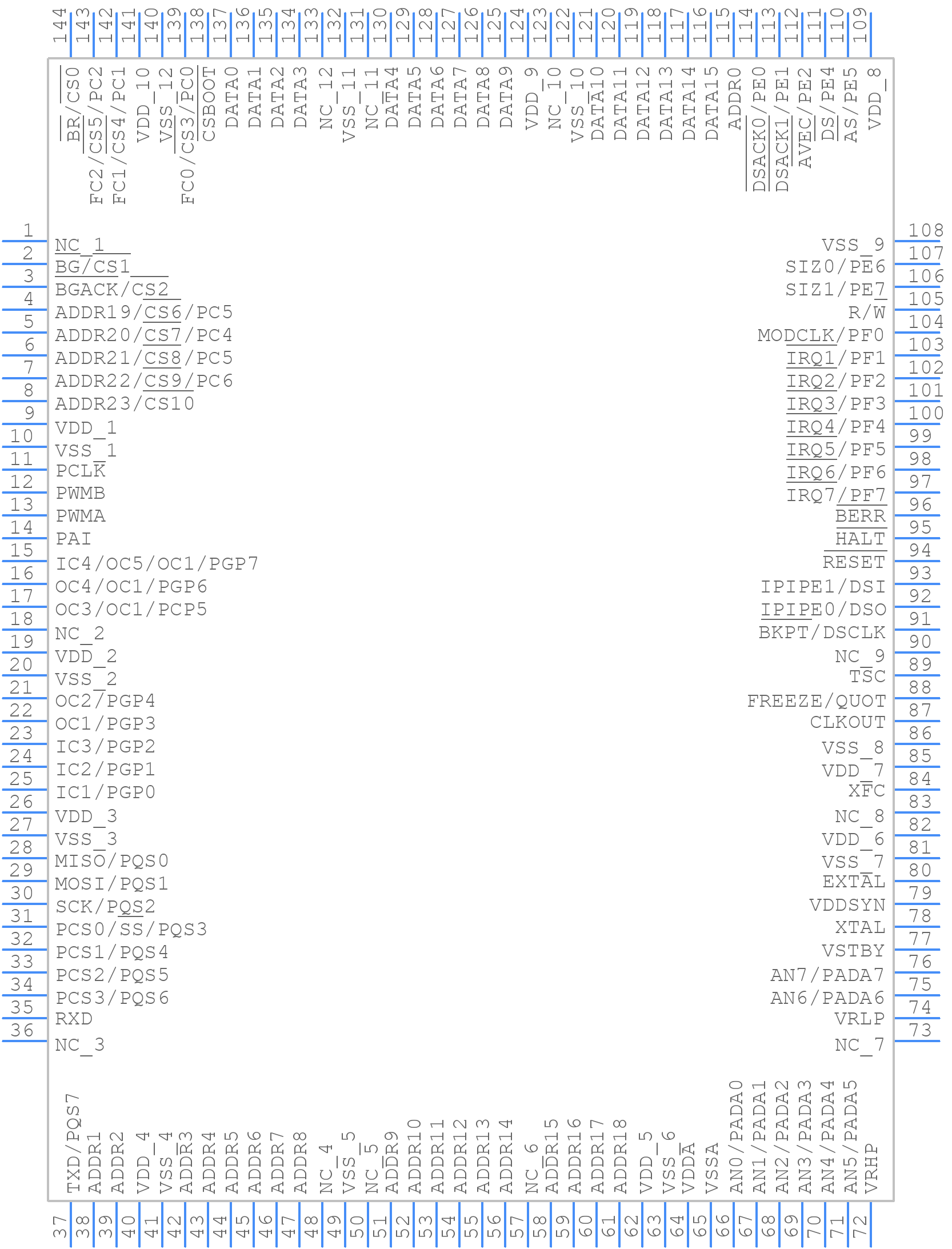

  • Part Symbol

    Part Symbol

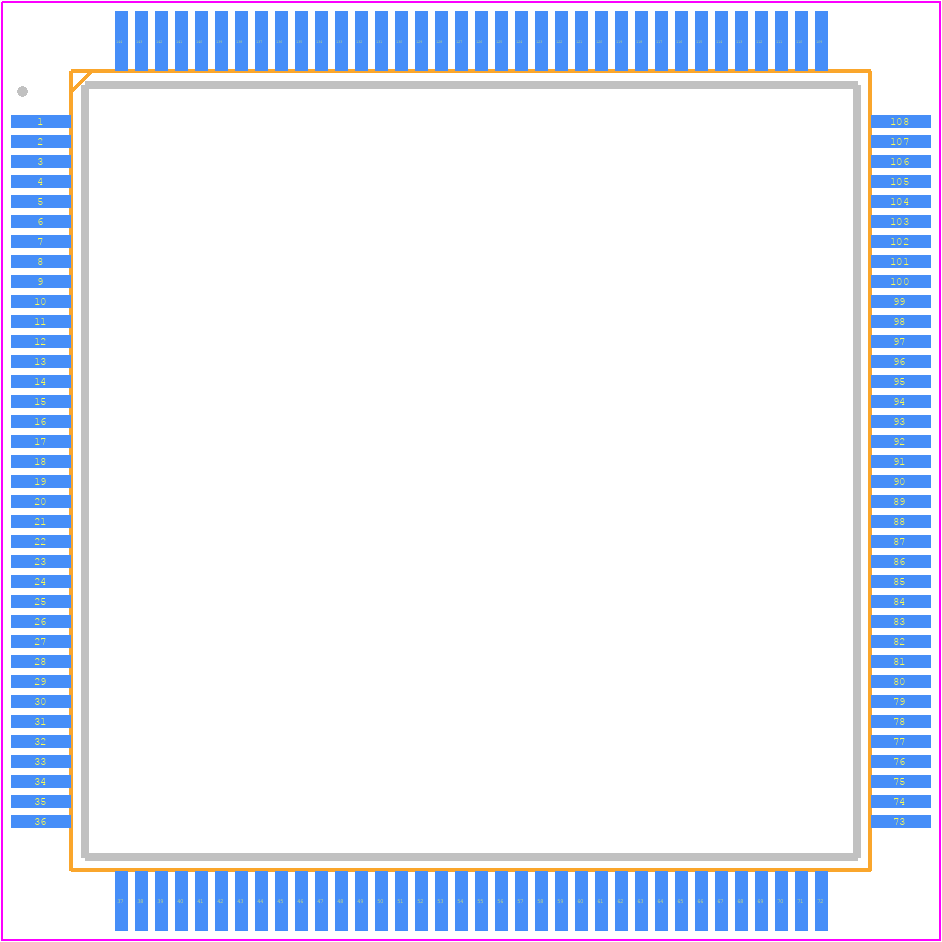

  • Footprint

    footprint

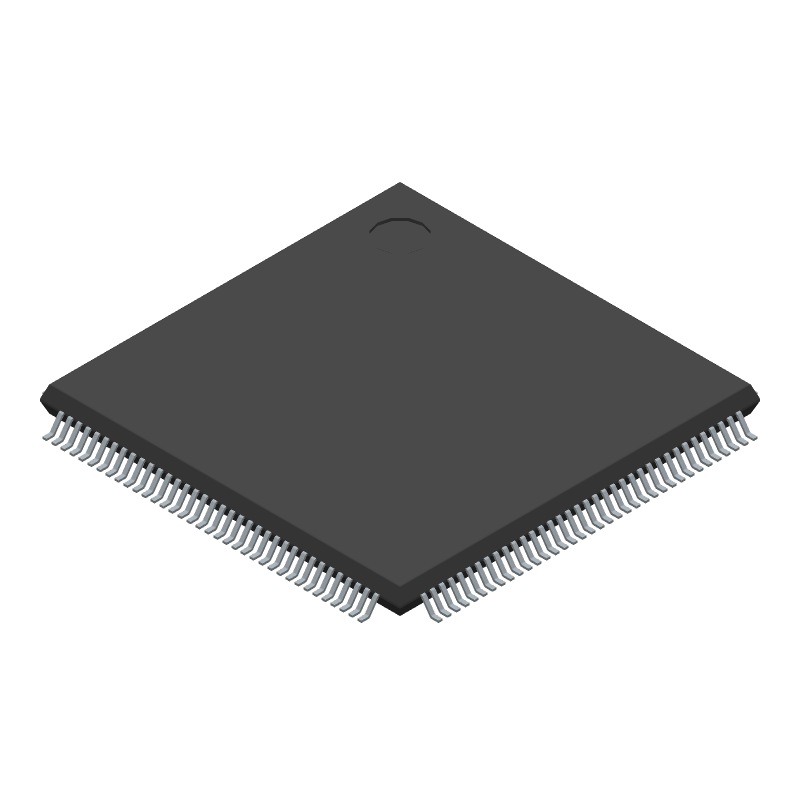

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

MC68HC16Z1CAG16 Part Data Attributes

Parametric Data
MC68HC16Z1CAG16 NXP Semiconductors
Buy Now Datasheet
Compare Parts:
MC68HC16Z1CAG16 NXP Semiconductors 16-BIT, 16.78MHz, MICROCONTROLLER, PQFP144
Rohs Code Yes
Part Life Cycle Code Not Recommended
Ihs Manufacturer NXP SEMICONDUCTORS
Package Description 20 X 20 MM, 1.40 MM HEIGHT, ROHS COMPLIANT, PLASTIC, LQFP-144
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Factory Lead Time 13 Weeks
Date Of Intro 1999-04-21
Samacsys Manufacturer NXP
Has ADC YES
Additional Feature IT ASLO OPERATES AT 3V
Address Bus Width 20
Bit Size 16
Boundary Scan NO
Clock Frequency-Max 16.78 MHz
DAC Channels NO
DMA Channels NO
External Data Bus Width 16
JESD-30 Code S-PQFP-G144
JESD-609 Code e3
Length 20 mm
Moisture Sensitivity Level 3
Number of I/O Lines 46
Number of Terminals 144
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code LFQFP
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
ROM (words) 0
ROM Programmability ROM LESS
Seated Height-Max 1.6 mm
Speed 16.78 MHz
Supply Voltage-Max 5.5 V
Supply Voltage-Min 4.5 V
Supply Voltage-Nom 5 V
Surface Mount YES
Technology HCMOS
Temperature Grade INDUSTRIAL
Terminal Finish Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 40
Width 20 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER

Alternate Parts for MC68HC16Z1CAG16

This table gives cross-reference parts and alternative options found for MC68HC16Z1CAG16. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MC68HC16Z1CAG16, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MC68HC16Z1CPV16 Motorola Semiconductor Products Check for Price MC68HC16Z1CPV16, TQFP-144 MC68HC16Z1CAG16 vs MC68HC16Z1CPV16
Part Number Manufacturer Composite Price Description Compare
MC68HC16Z1CPV16 Freescale Semiconductor Check for Price 16-BIT, 16.78MHz, MICROCONTROLLER, PQFP144, 20 X 20 MM, 1.40 MM HEIGHT, PLASTIC, LQFP-144 MC68HC16Z1CAG16 vs MC68HC16Z1CPV16
MC68HC16Z1CAG16 Freescale Semiconductor Check for Price 16-BIT, 16.78MHz, MICROCONTROLLER, PQFP144, 20 X 20 MM, 1.40 MM HEIGHT, ROHS COMPLIANT, PLASTIC, LQFP-144 MC68HC16Z1CAG16 vs MC68HC16Z1CAG16

MC68HC16Z1CAG16 Related Parts

MC68HC16Z1CAG16 Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the MC68HC16Z1CAG16 is 16 MHz.

  • The MC68HC16Z1CAG16 has 16 KB of flash memory.

  • The operating voltage range of the MC68HC16Z1CAG16 is 2.7V to 5.5V.

  • No, the MC68HC16Z1CAG16 does not have built-in EEPROM. However, it has a 256-byte on-chip RAM that can be used for data storage.

  • The maximum current consumption of the MC68HC16Z1CAG16 is 15 mA at 16 MHz and 5V operating voltage.
