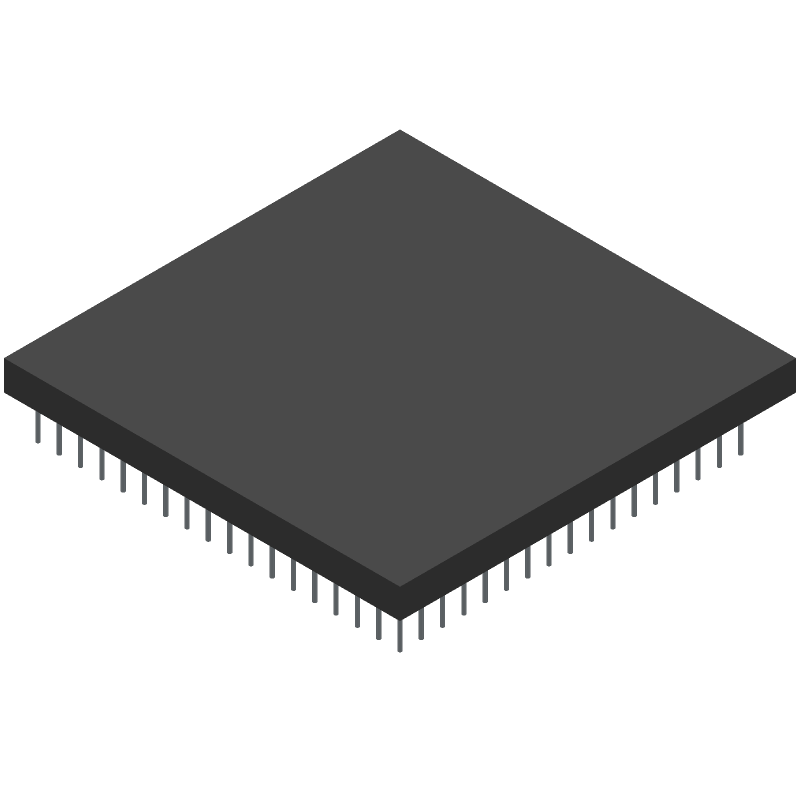

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for MC68040RC25V by Rochester Electronics LLC
Results Overview of MC68040RC25V by Rochester Electronics LLC
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
MC68040RC25V Information
MC68040RC25V by Rochester Electronics LLC is a Microprocessor.
Microprocessors are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Part Details for MC68040RC25V
MC68040RC25V CAD Models
MC68040RC25V Part Data Attributes
|
|
MC68040RC25V
Rochester Electronics LLC
Buy Now
Datasheet
|
Compare Parts:
MC68040RC25V
Rochester Electronics LLC
32-BIT, 25 MHz, MICROPROCESSOR, CPGA179, CAVITY DOWN, PGA-179
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ROCHESTER ELECTRONICS INC | |
| Part Package Code | PGA | |
| Package Description | PGA, | |
| Pin Count | 179 | |
| Reach Compliance Code | unknown | |
| Samacsys Manufacturer | Rochester Electronics | |
| Address Bus Width | 32 | |
| Bit Size | 32 | |
| Boundary Scan | YES | |
| Clock Frequency-Max | 50 MHz | |
| External Data Bus Width | 32 | |
| Format | FLOATING POINT | |
| Integrated Cache | YES | |
| JESD-30 Code | S-CPGA-P179 | |
| Length | 47.245 mm | |
| Low Power Mode | YES | |
| Moisture Sensitivity Level | NOT SPECIFIED | |
| Number of Terminals | 179 | |
| Package Body Material | CERAMIC, METAL-SEALED COFIRED | |
| Package Code | PGA | |
| Package Shape | SQUARE | |
| Package Style | GRID ARRAY | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | COMMERCIAL | |
| Seated Height-Max | 3.05 mm | |
| Speed | 25 MHz | |
| Supply Voltage-Max | 5.25 V | |
| Supply Voltage-Min | 4.75 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | NO | |
| Technology | HCMOS | |
| Terminal Finish | NOT SPECIFIED | |
| Terminal Form | PIN/PEG | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | PERPENDICULAR | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 47.245 mm | |
| uPs/uCs/Peripheral ICs Type | MICROPROCESSOR |
